23.8 inch New generation 23.8'' Display inch tft lcd 1920x1280 pixels TFT LCD Screen LVDS interface Promotions

23.8 inch New generation 23.8'' Display inch tft lcd 1920x1280 pixels TFT LCD Screen LVDS interface Promotions

23.8 inch New generation 23.8'' Display inch tft lcd 1920x1280 pixels TFT LCD Screen LVDS interface Promotions

23.8 inch New generation 23.8'' Display inch tft lcd 1920x1280 pixels TFT LCD Screen LVDS interface Promotions

Display Mode :Normal Black
Size: 23.8
Resolution: 1920*1080
Interface:LVDS
Product description: Hicenda Technology Co.,ltd can supply high quality 23.8inch tft display for medical or industrial device.HD 1080*1290 dot matrix 23.8 Inch tft lcd monitor,23.8 inch RGB TFT-LCD LCM Screen Square,23
INQUIRY

1. Display Specifications

LCD Size: 23.8 inches
Dot Matrix Size: 1920*1080
lCD Module:a-Si TFT
Hardware Interface: LVDS
Display mode:Normally Black
Operating Temperature: -20 - 70
Working Power Supply: 3.0V
PIN NO: 30Pin

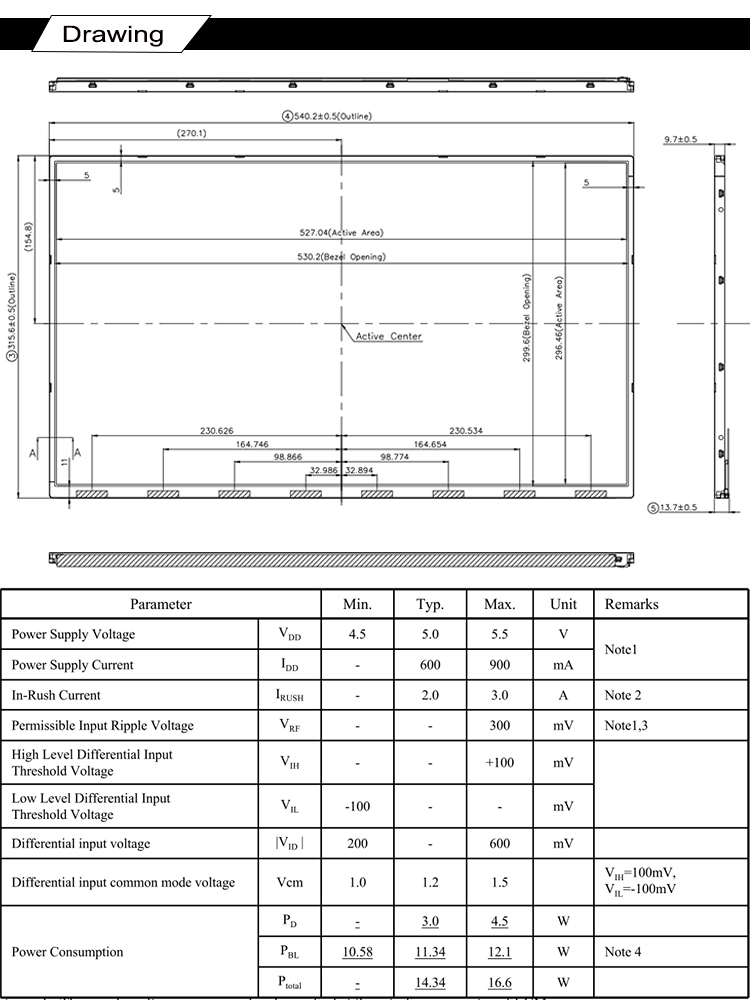

Display Area:527.04x296.46 mm
Size:540.2(H)x315.6(V)x12.9(D)
Viewing Direction: ALL

PINo Symbol Description

Pin	Define
1	GND GroundD
2	VCC Power 3.3V
3	SCL Serial clock pin.
4	SDA Serial data input
5	RES LCM Reset pin
6	DC Data/Command Control
7	CS Chip Select
8	BLK Backlight control pin
