10.13" Flexible OLED display,FHD 1242(RGB)x2208 AMOLED screen with touch panel, HDMI Board

Size: 10.13
Driver Board: HDMI Board
Resolution:1242(RGB)x2208
Interface:2 port MIPI
Product description: 10.13" Flexible OLED display,FHD 1242(RGB)x2208 AMOLED screen with touch panel, HDMI Board
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

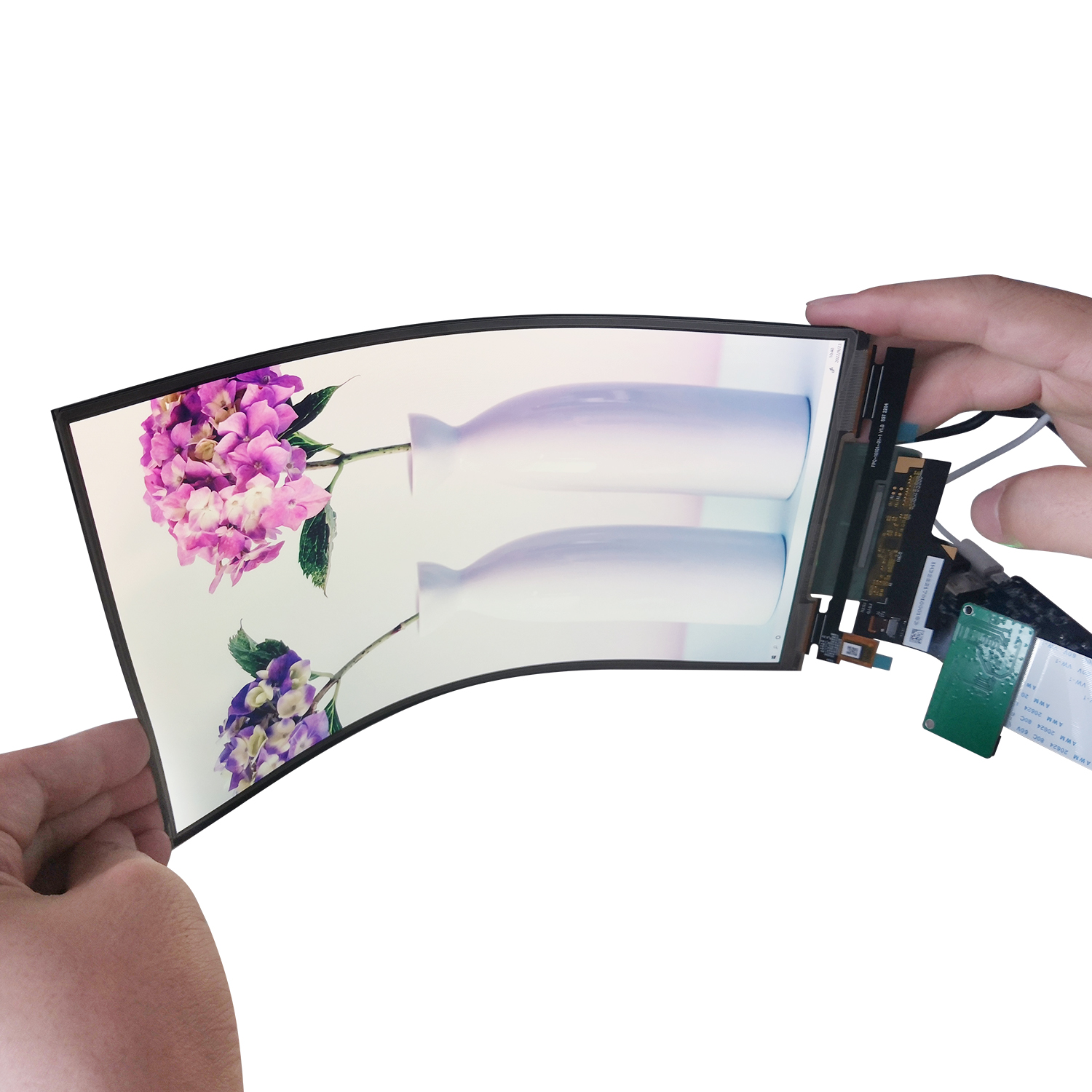

This is a Bendable OLED Screen 10.13 inch Flexible AMOLED Display 11242(RGB)x2208 IPS FHD Curved LCD Module with CTP Capacitive Touch Panel. It has advantages of high contrast, wide color gamut, and wide viewing angle, which make it able to bring vivid and delicate visual experience. All these 7.8 inch flexible AMOLED displays are original new with Grade A+ condition.

This full set support touch function. So you can enjoy vivid visual experience and touch function as the same time!

GENERAL SPECIFICATION

Model No.	HGFLEXO1013
Size	10.13 inch
Resolution	2208*1242
Outline Dimension	135.19235.430.592mm
Active Area	126.19*224.33mm
Viewing Angle	IPS Full Viewing Angle
Interface	MIPI
Luminance	300cd/m2
Contrast Ratio	100,000
Color Depth	16.7M
PPI	250

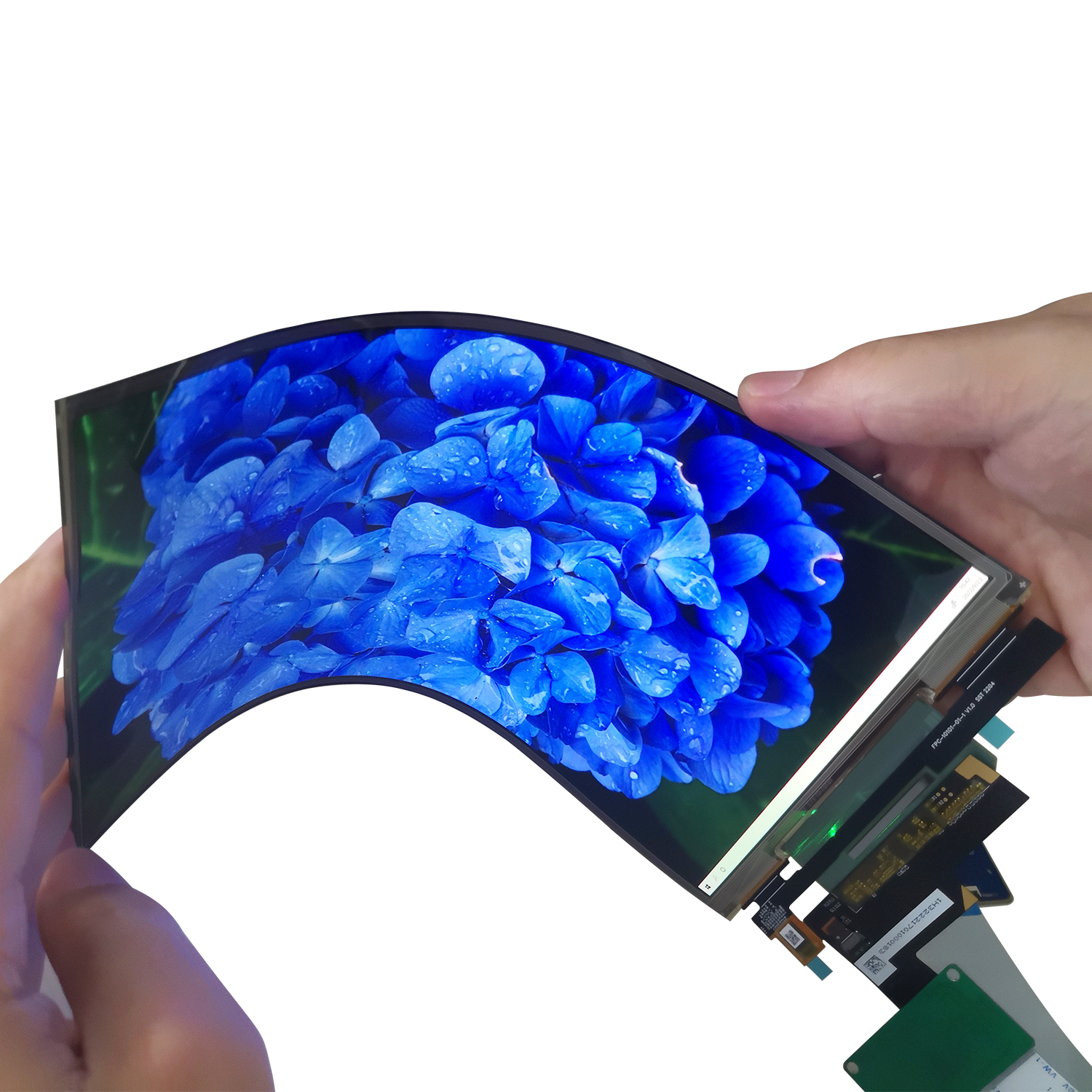

Bending	R50mm (typical), depend on application
Life Time	LT80 30000 hours
FPC Connecting Mode	62 Pin Board to Board Connector
Touch Panel	With Oncell Touch Panel

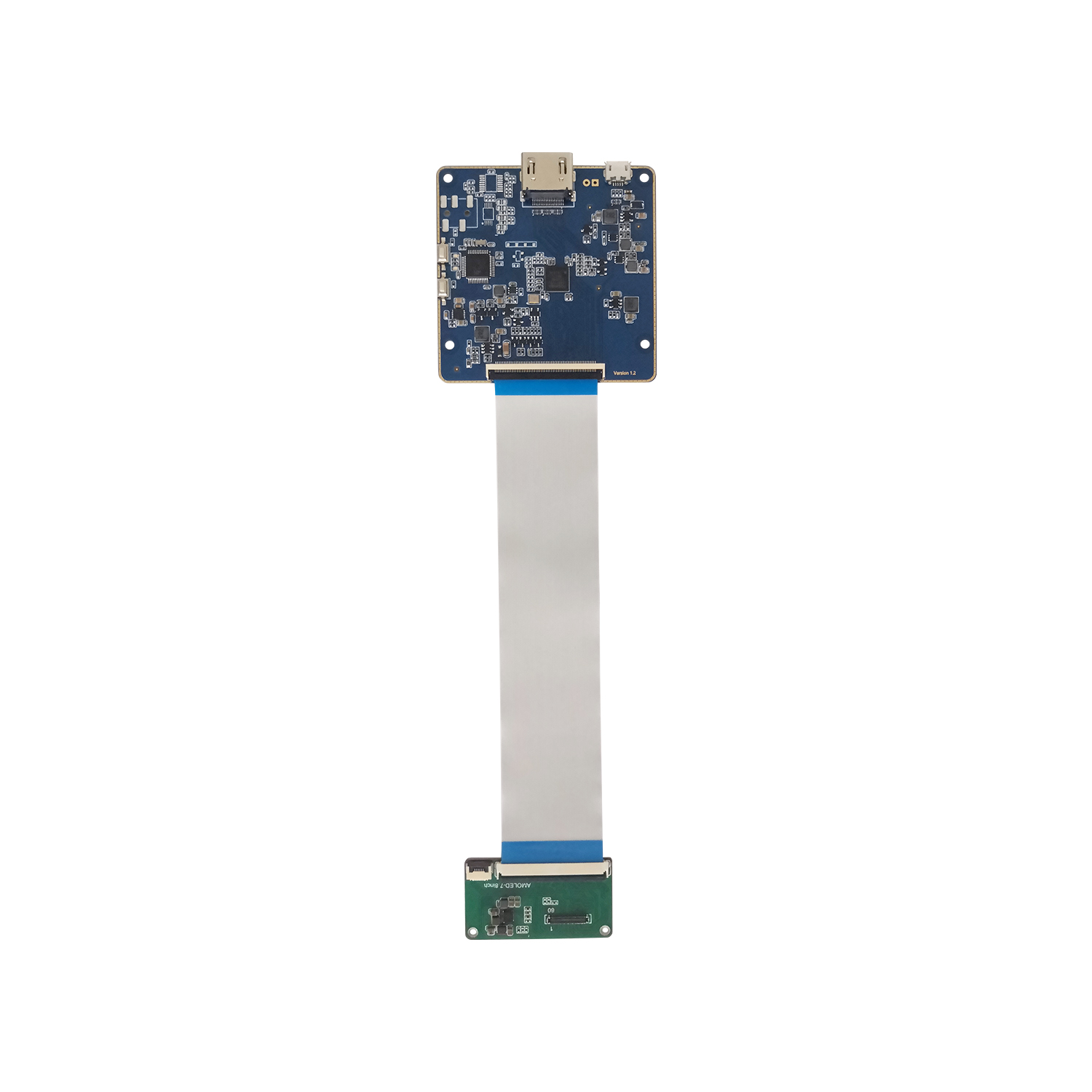

Driver Board	With HD-MI Board

DRAWING

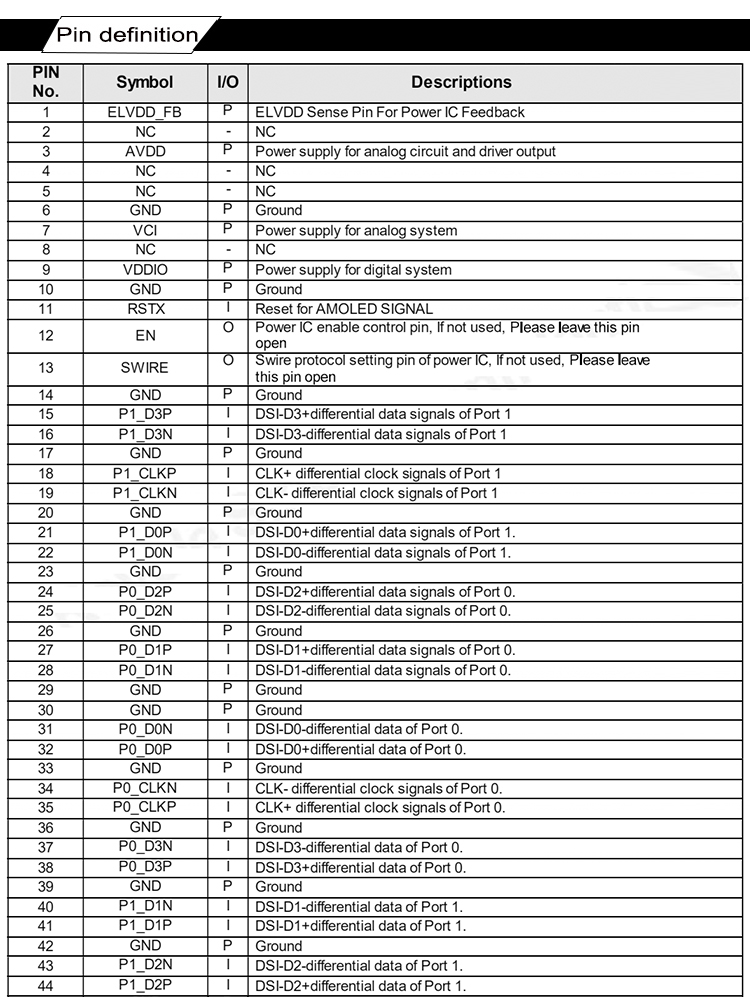

INTERFACE PIN FUNCTION
