1.41"

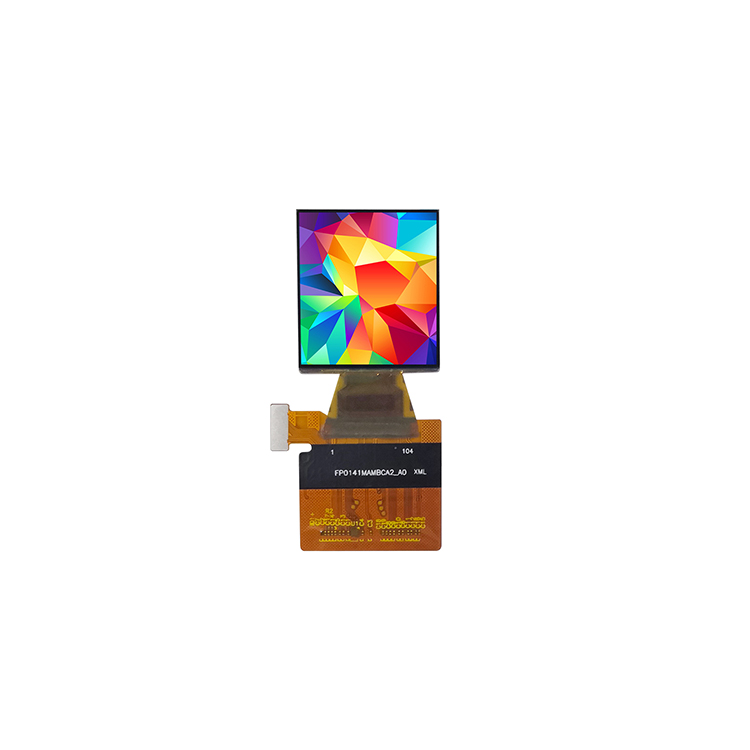

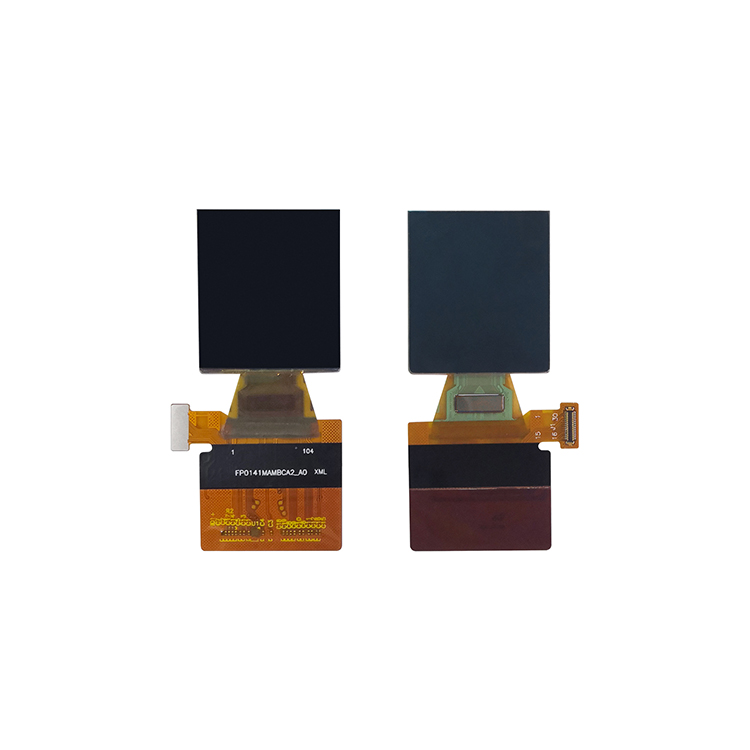

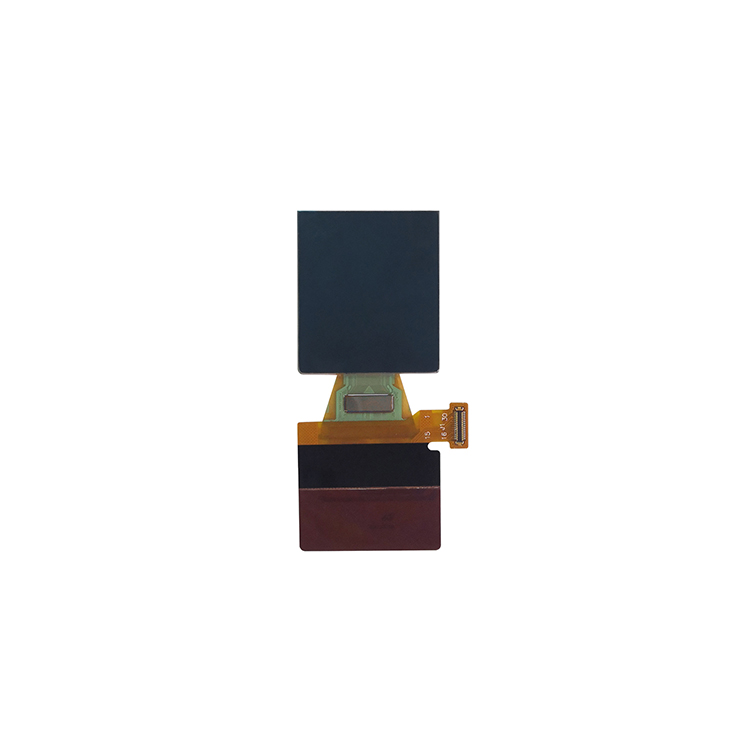

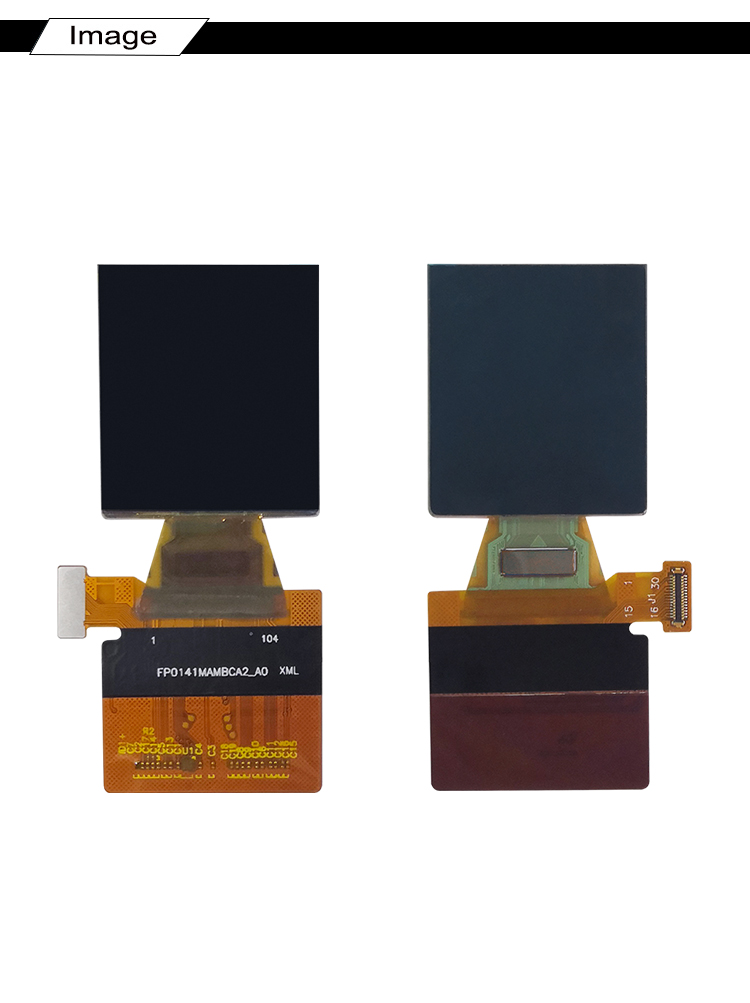

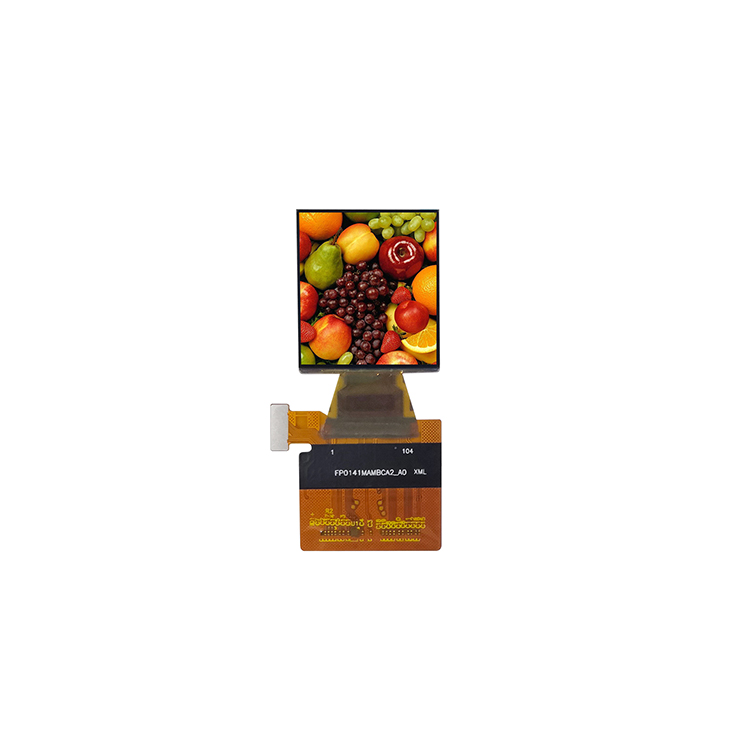

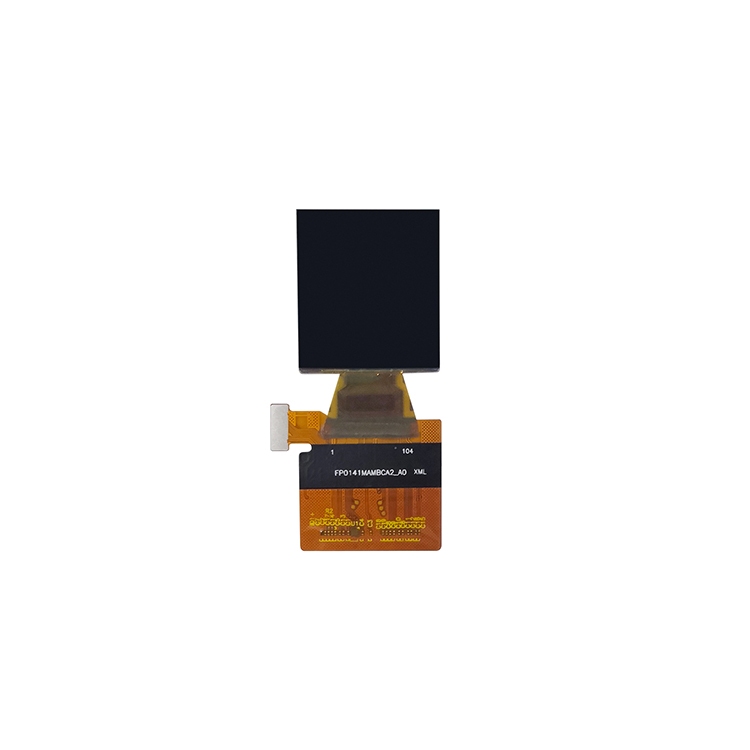

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

OLED Small AMOLED Display 1.41 inch, 320x360

Size: 1.41 OLED
Controller IC:FT2388
Resolution: 320*360
Interface: 30 Pin MIPI
Product description: OLED Small AMOLED Display 1.41 inch, 320x360
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA OLED 1.41 is is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s 0141MAMBCA0 is AMOLED (Active Matrix/Organic Light Emitting Diode)

module. This module is composed of 1.41 inch LCD, driver circuits, FPC unit.

GENERAL SPECIFICATION

Display Type:	amoled display
Display Mode:	COLOR AMOLED
Model Number:	HG--0141MAMBCA0
Diagonal Screen size:	1.41 inch
Interface:	MIPI
Drive Duty:	1/64 Duty
Number of Pixels:	320x360
Panel Size	25.74(H)29.87(V)0.877(t) (mm)
Driver IC:	FT2388
Active Area:	23.84(H)*26.82(V)
Pixel Pitch:	78(mm)
Pixel Size:	78*78 (mm)
Weight:	1.54 (g)
Operating Temperature:	-40~85°

DRAWING

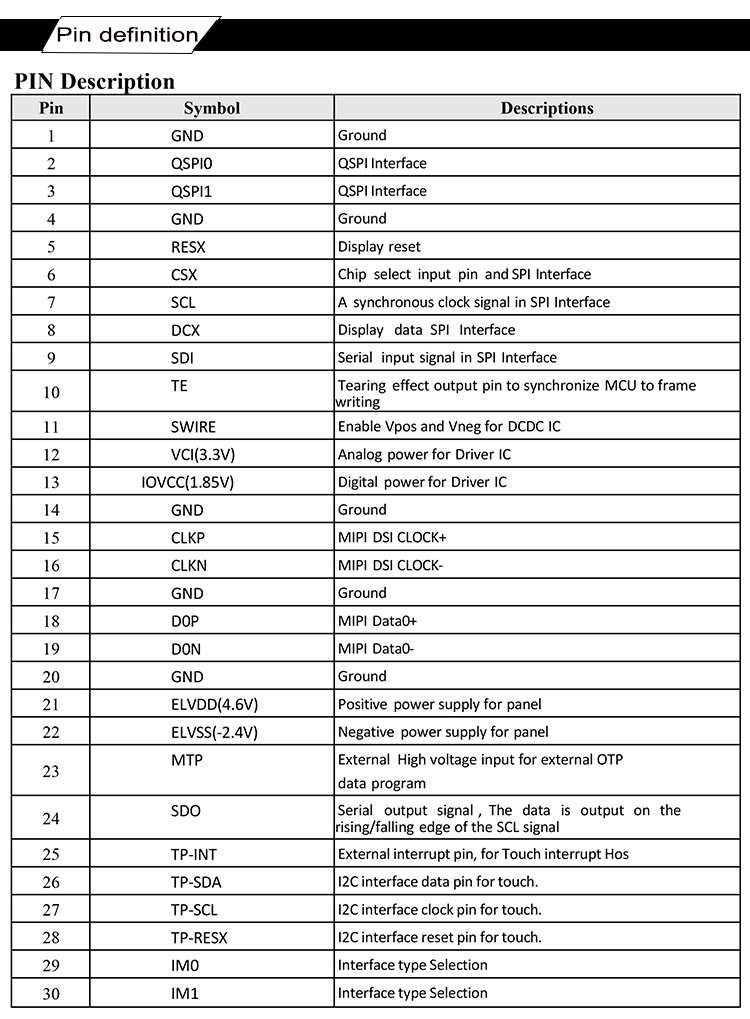

INTERFACE PIN FUNCTION

PREVIOUS： Circular OLED Small AMOLED Display 1.39 inch, 454*454 NEXT：2.7 Inch TFT LCD Display,960(RGB)x240

RELATED PRODUCTS

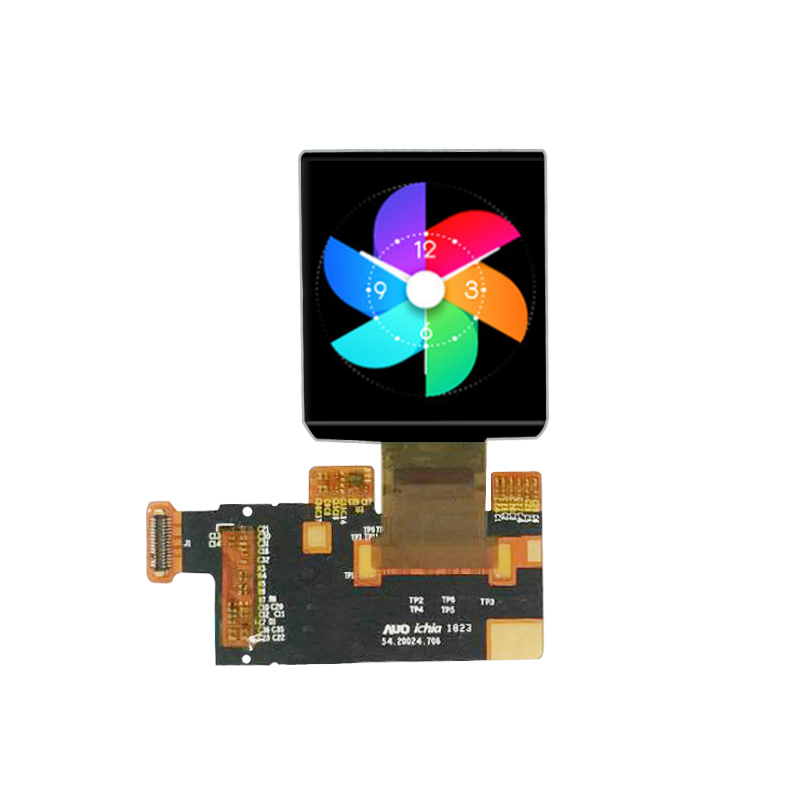

1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin
