2.2"

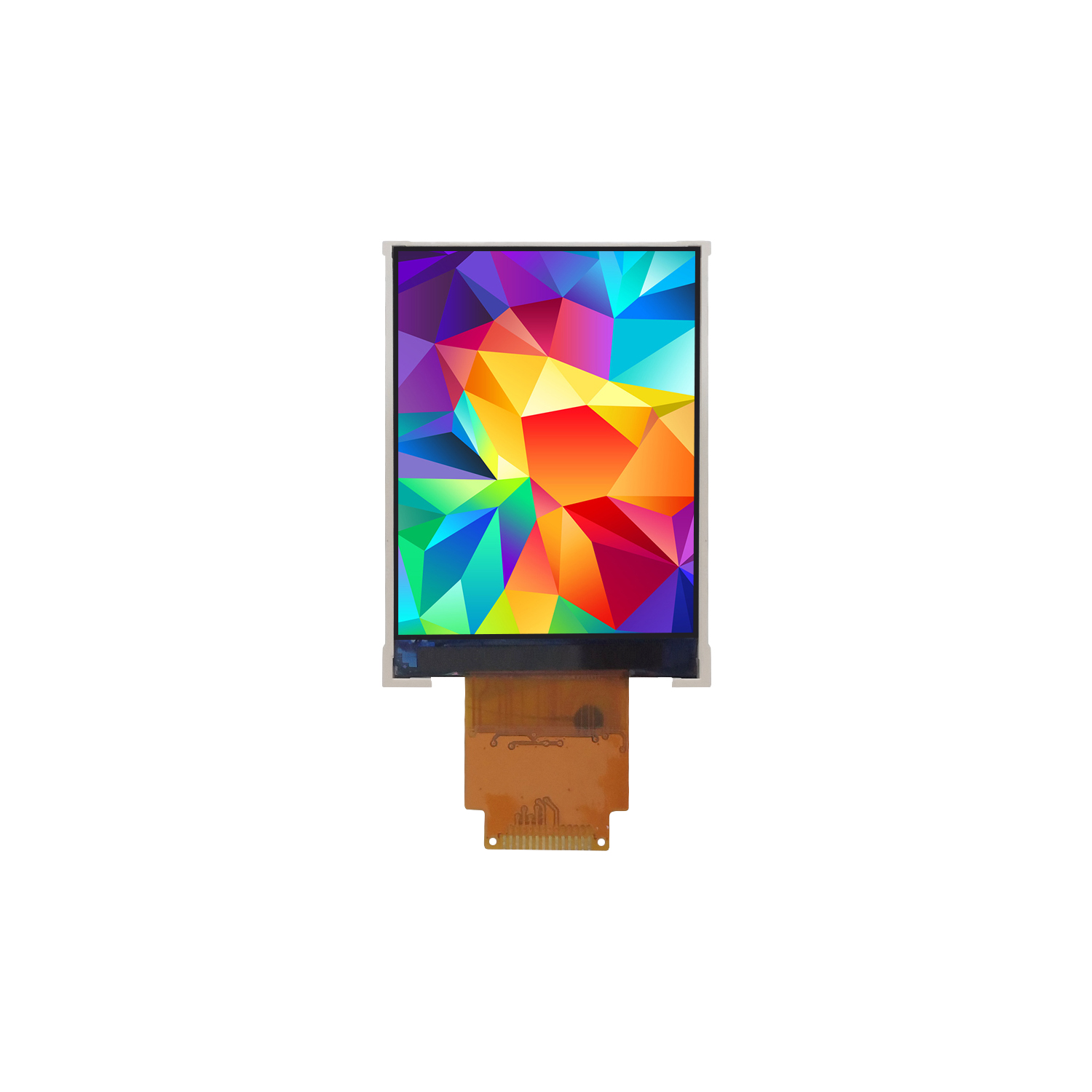

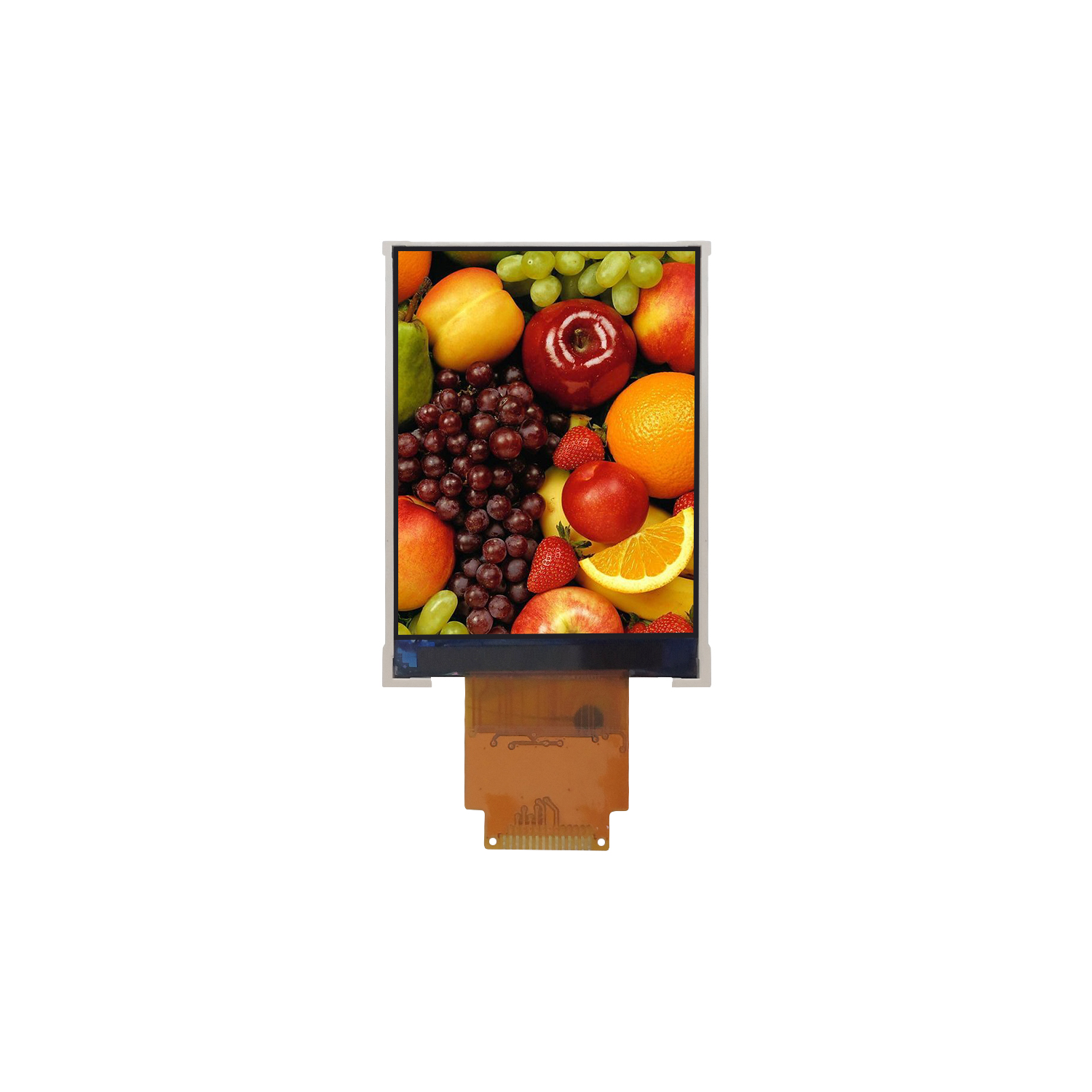

TFT LCD Display 2.2 inch,240(RGB)x 320

TFT LCD Display 2.2 inch,240(RGB)x 320

TFT LCD Display 2.2 inch,240(RGB)x 320

TFT LCD Display 2.2 inch,240(RGB)x 320

TFT LCD Display 2.2 inch,240(RGB)x 320

TFT LCD Display 2.2 inch,240(RGB)x 320

TFT LCD Display 2.2 inch,240(RGB)x 320

TFT LCD Display 2.2 inch,240(RGB)x 320

Size: 2.2 TFT
Controller IC: ILI9341
Resolution:240(RGB)x 320
Interface: 4-Wire SPI
Product description: TFT LCD Display 2.2 inch,240(RGB)x 320
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT 2.2 is a 240(R.G.B) x320 dot matrix TFT LCD module. It has a TFT panel composed of 240(R.G.B) segments and 320 commons. The LCM can be easily accessed by micro-processor-unit (MPU) via parallel interface.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT022HDH26
Diagonal Screen size:	2.2 inch
Interface:	4-Wire SPI
Backlight:	LED B/L White×4
Number of Pixels:	240(H)RGBx 320(V) dots
Panel Size:	40.10x55.20x2.35(mm)
Driver IC:	ILI9341
Active Area:	33.84x45.12(H)(mm)
Display Mode:	Normally white/Transmissive
Pixel Size:	0.141X0.141(mm)
Weight:	40 (g)
Operating Temperature:	-40~85°

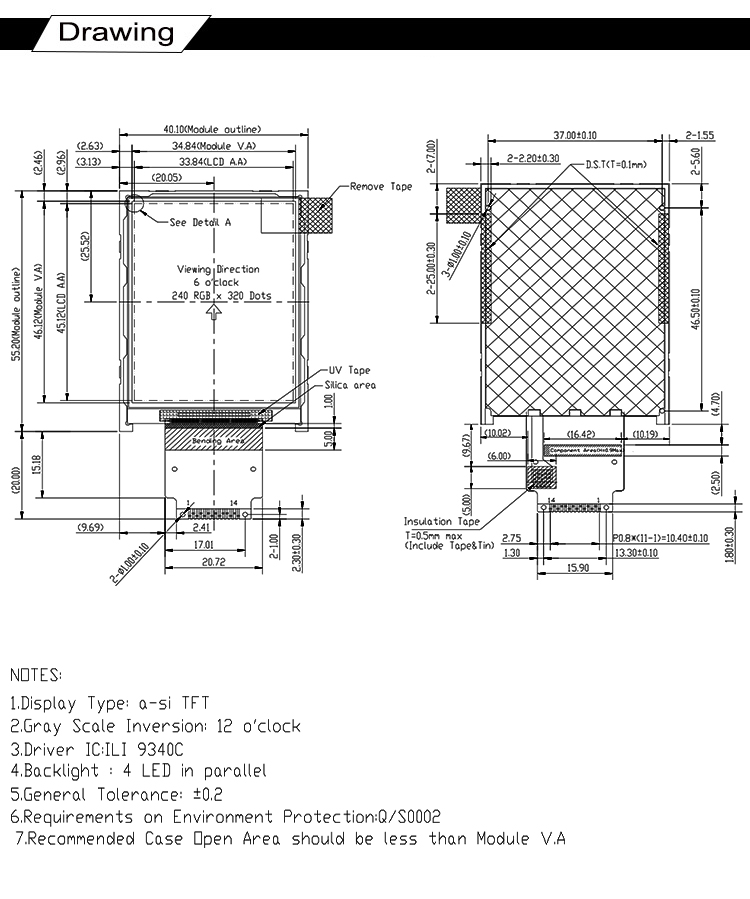

DRAWING

INTERFACE PIN FUNCTION

PREVIOUS：OLED Graphic Display 2.42 NEXT：ORTUSTECH COM57H5M86KLC 5.7" tft lcd display,1920 dotsx480

RELATED PRODUCTS

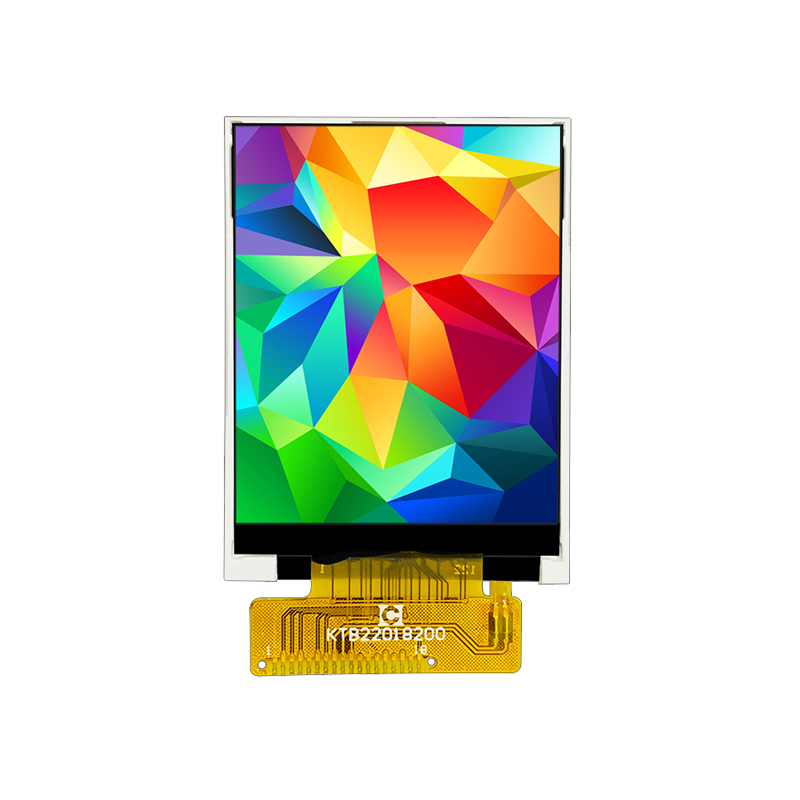

2.2 inch tft screen module 176x220 dot matrix ILI9341 welding 18 pin with spi port on slae
