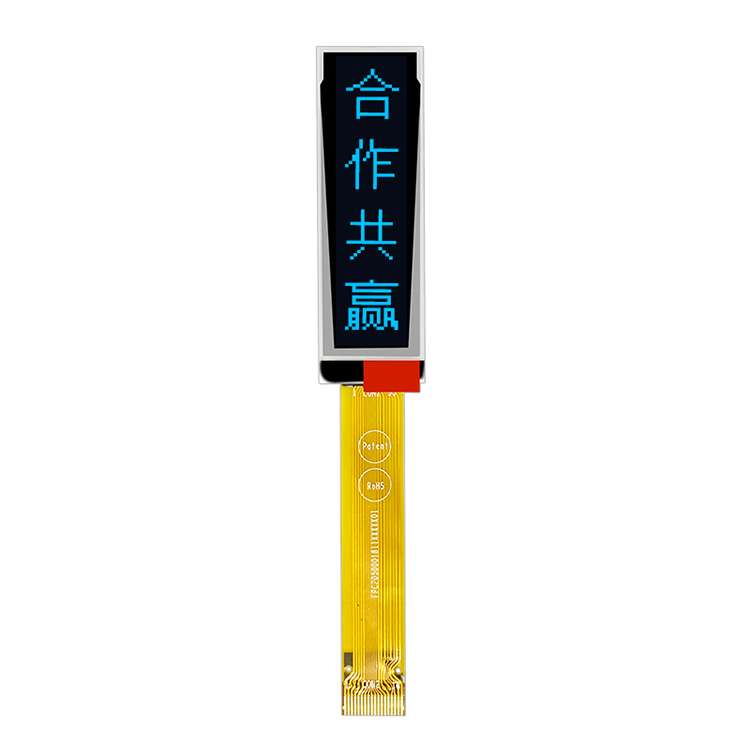

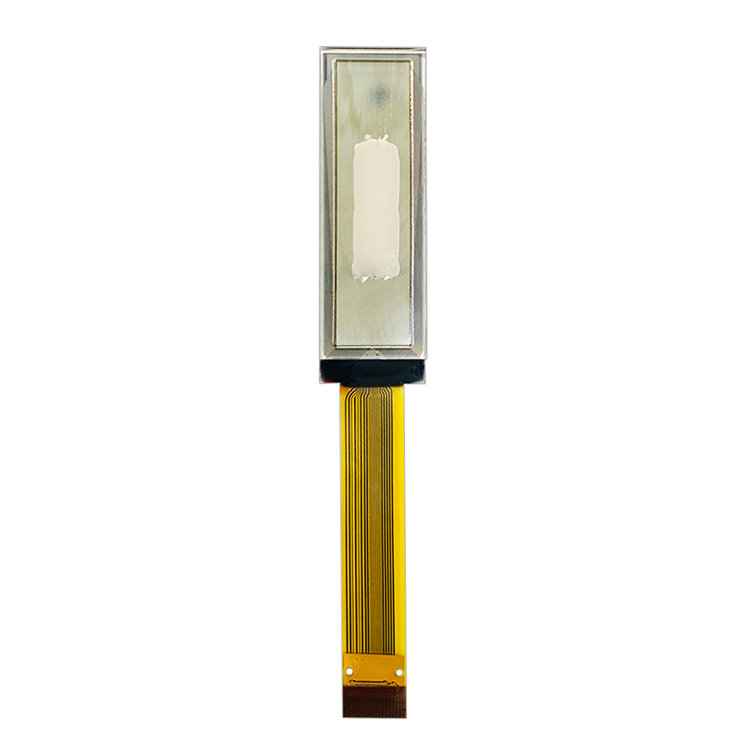

DESCRIPTION

HICENDA OLED 1.71 is a  passive matrix micro OLED display module which is made of 128x32 dots. It has the module dimension of 50.5 × 15.75× 2.01 mm and Active Area size 42.22× 10.54 mm. This OLED micro display is built in with SSD1307 IC, it supports MCU interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.71 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

Display Type:	oled display  (White/YBlue)
Display Mode:	Passive Matrix
Model Number:	HG--171-12832KSWEG17
Diagonal Screen size:	1.71 inch
Interface:	SPI/IC2 18P (Connector)
Drive Duty:	1/64 Duty
Number of Pixels:	128x32
Panel Size	50.5 × 15.75× 2.01(mm)
Driver IC:	SSD1307
Active Area:	42.22× 10.54 (mm)
Pixel Pitch:	0.254 x 0.254(mm)
Pixel Size:	0.258 x 0.258 (mm)
Weight:	5.15 (g)
Operating Temperature:	-40~85°

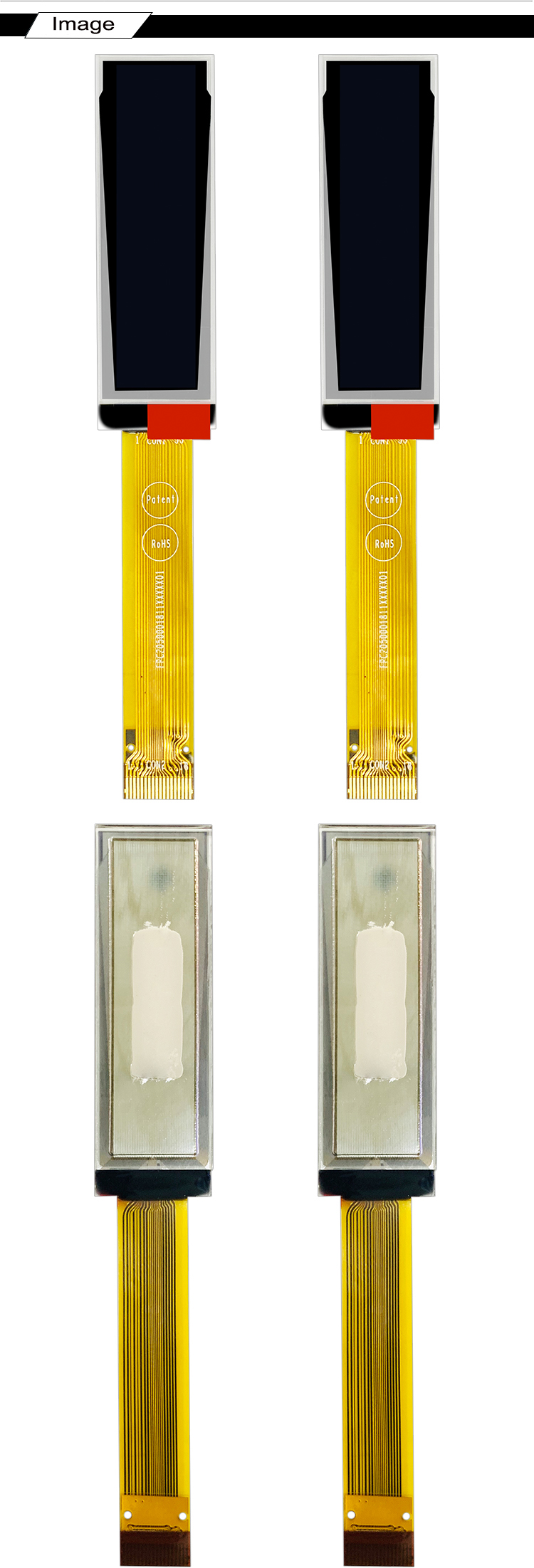

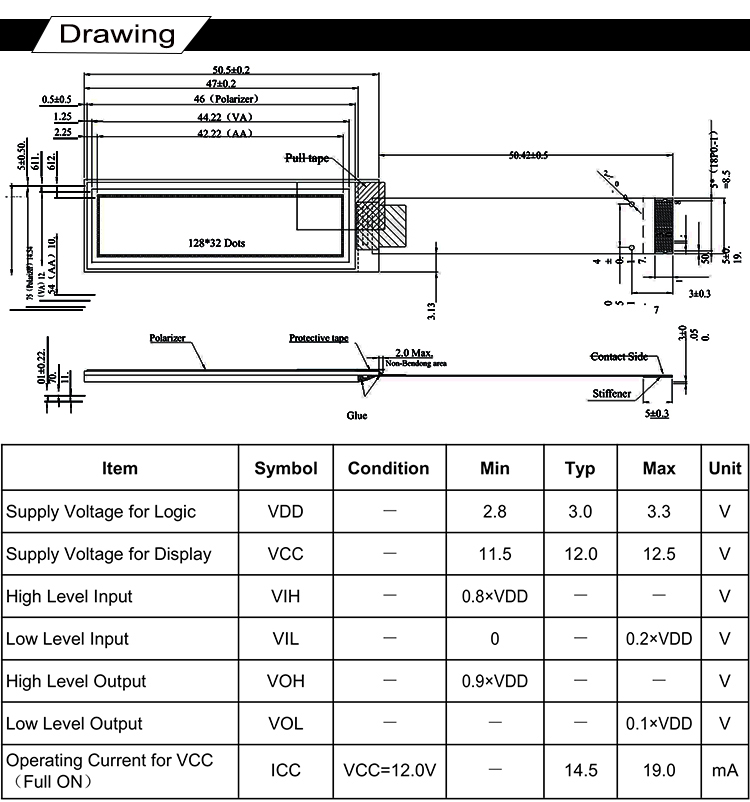

DRAWING

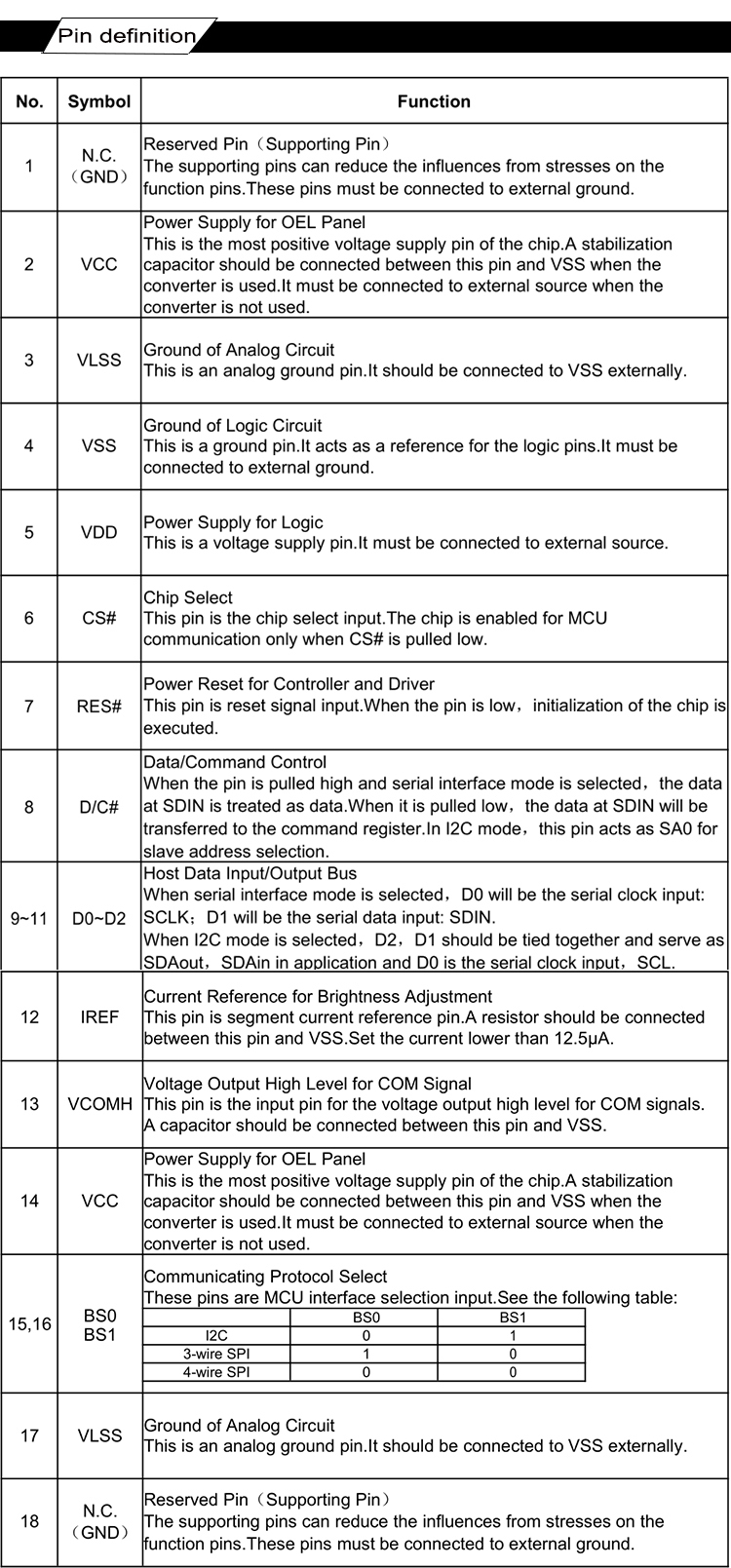

INTERFACE PIN FUNCTION
