DESCRIPTION

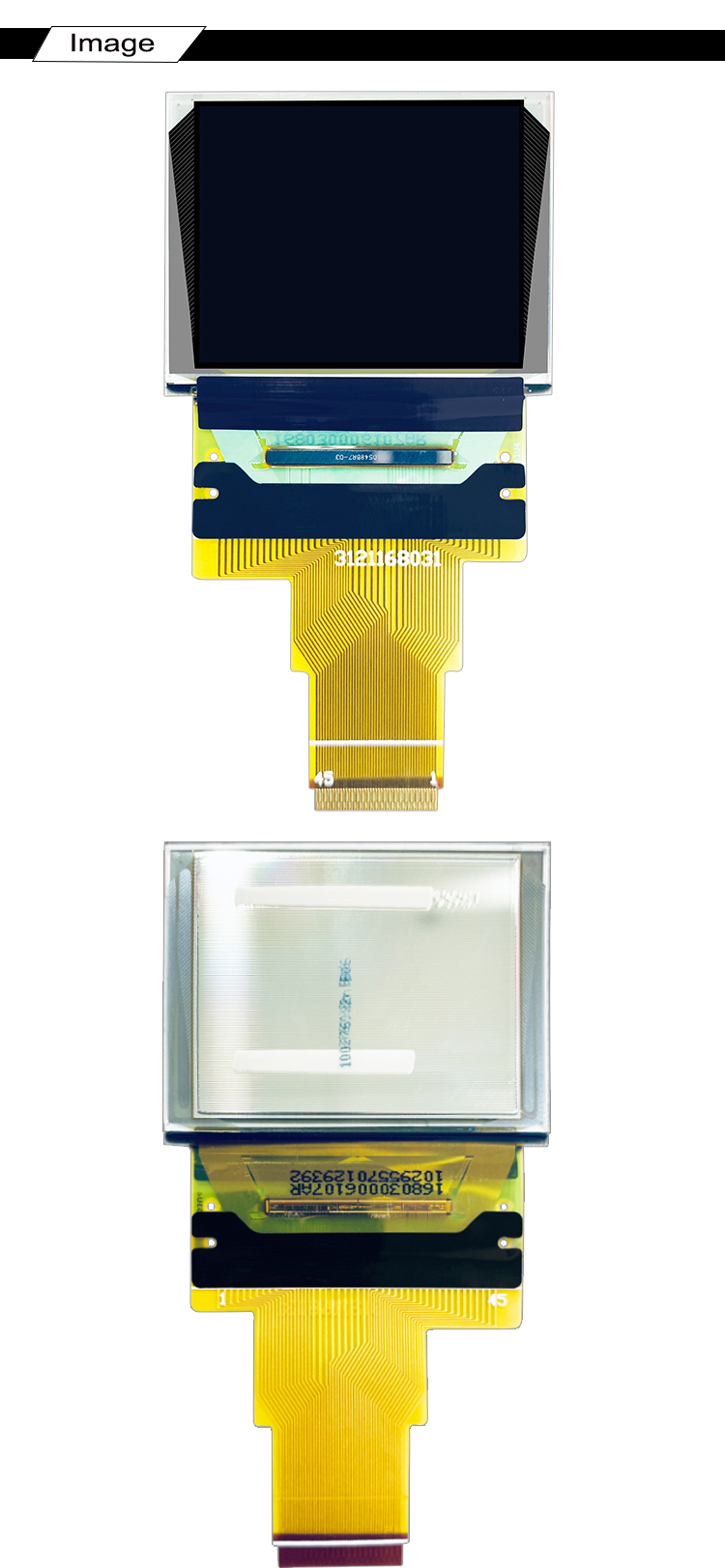

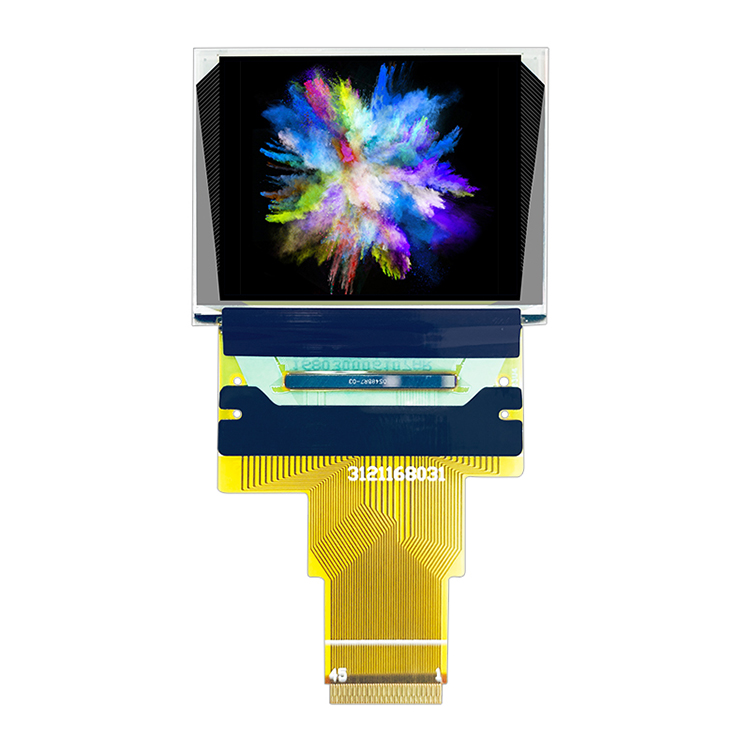

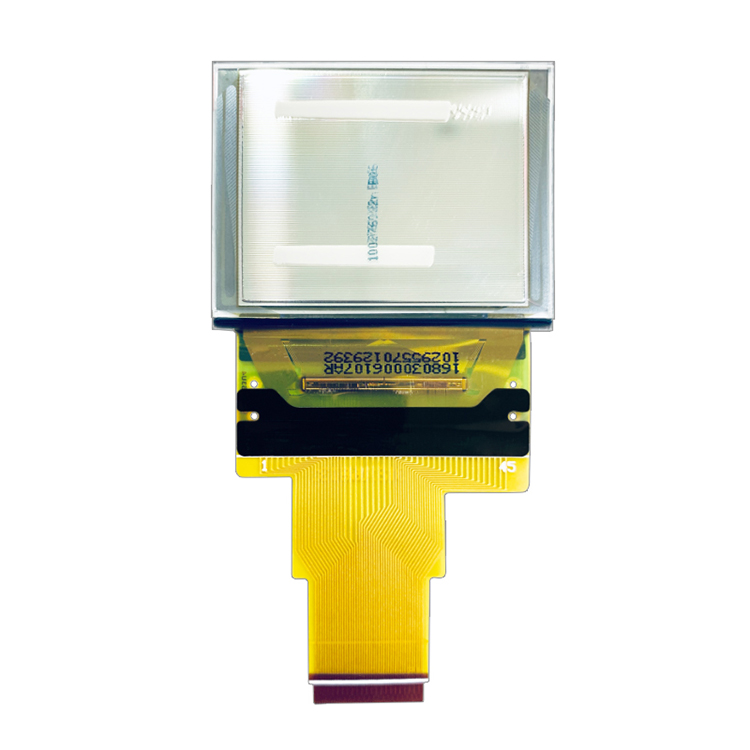

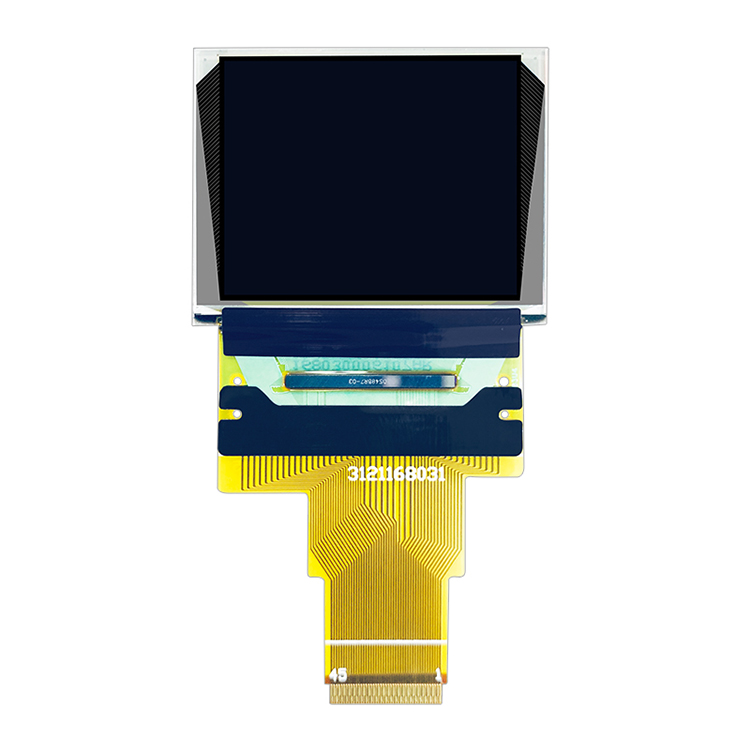

HICENDA OLED 1.77 is a passive matrix micro color OLED display module which is made of 160X128 dots. It has the module dimension of 42.7 x 79.5 ×2.05 mm and Active Area size 35.015 ×28.012 ( mm. This OLED micro display is built in with SSD1325 IC, it supports 8080/6080/ SPI interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.77 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.
GENERAL SPECIFICATION
| Display Type: | oled display (full color) |
| Display Mode: | Passive Matrix |
| Model Number: |
HG--177-96KSWEG17 |
| Diagonal Screen size: | 1.77 inch |
| Interface: |
8080/6080/ SPI 45P(Connector) |
| Drive Duty: |
1/128 Duty |
| Number of Pixels: |
160x128 |
| Panel Size |
42.7 x 79.5 ×2.05 (mm) |
| Driver IC: |
SSD1325 |
| Active Area: |
35.015 ×28.012 (mm) |
| Pixel Pitch: |
0.073x 0.219(mm) |
| Pixel Size: |
0.045 x 0.194(mm) |
|
Weight: |
4.5 (g) |
|
Operating Temperature: |
-40~85° |

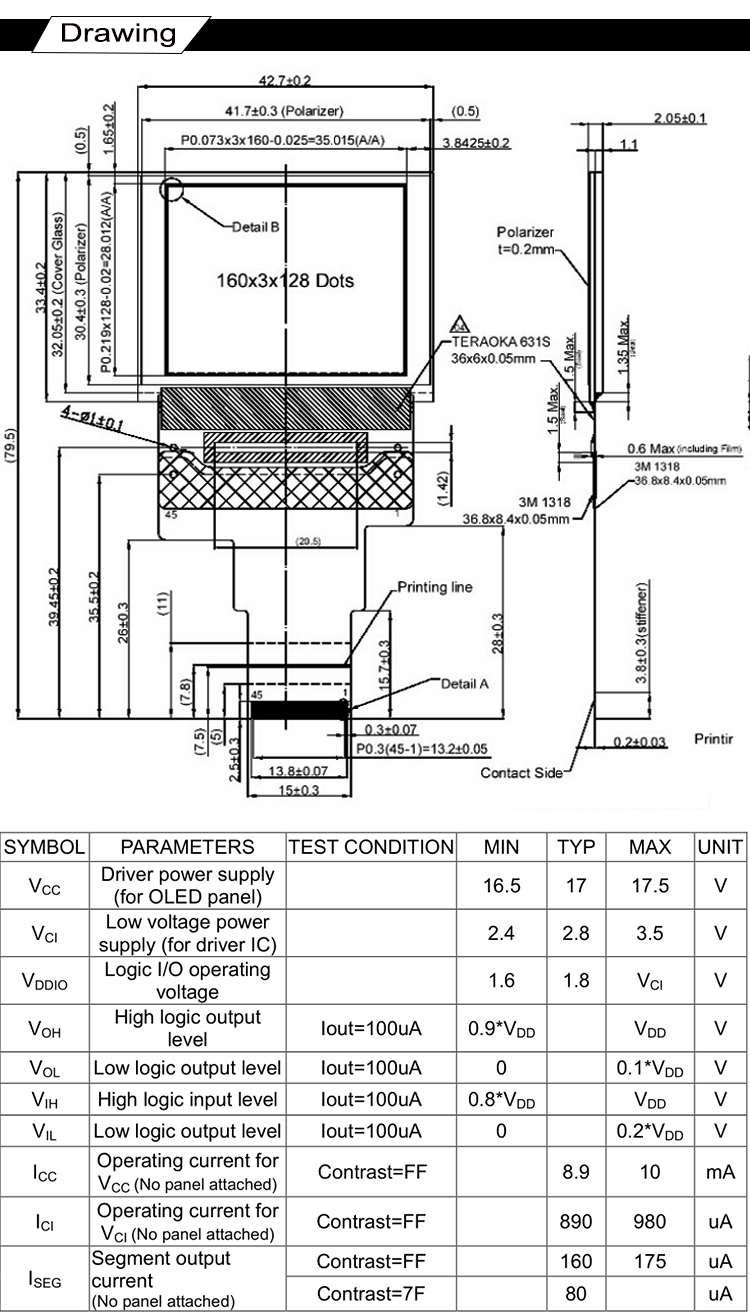

DRAWING
INTERFACE PIN FUNCTION
