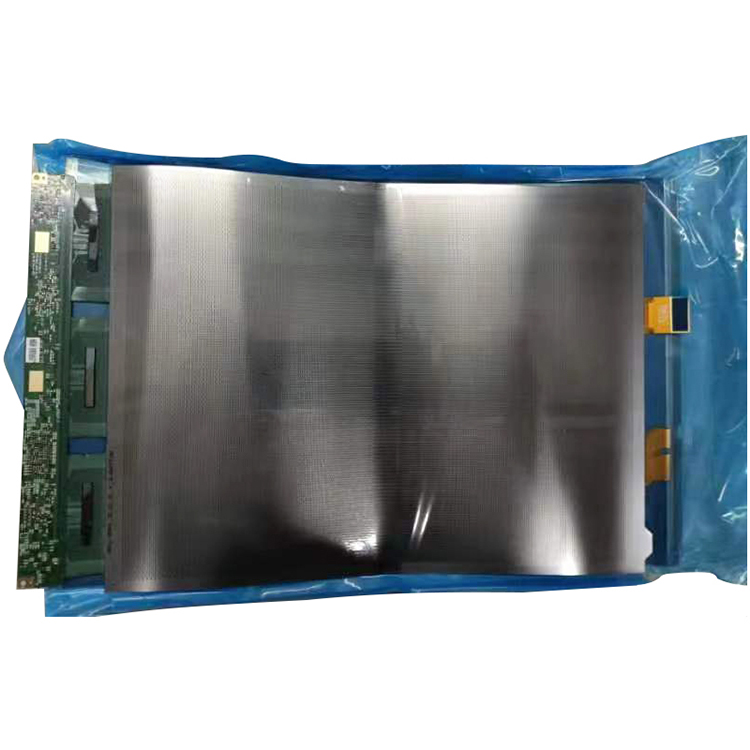

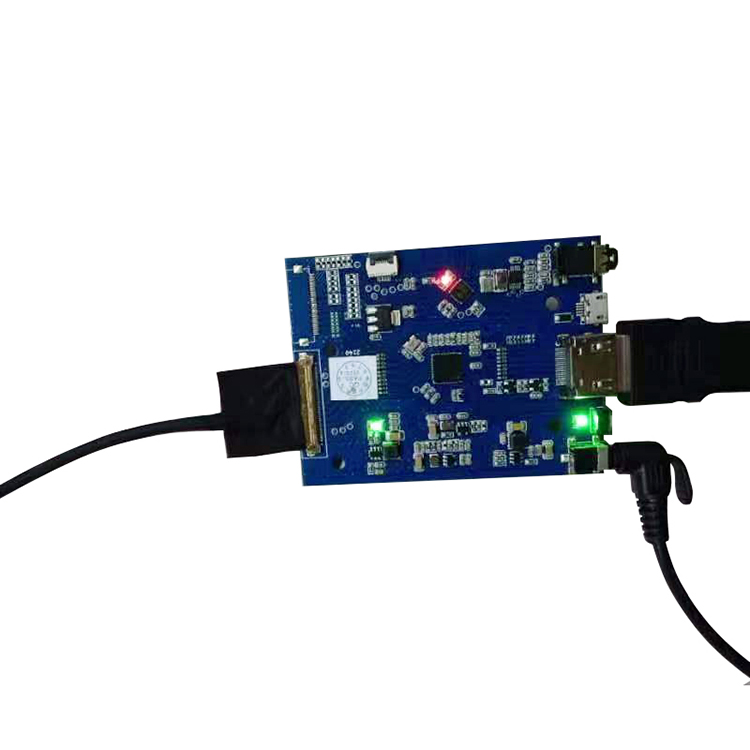

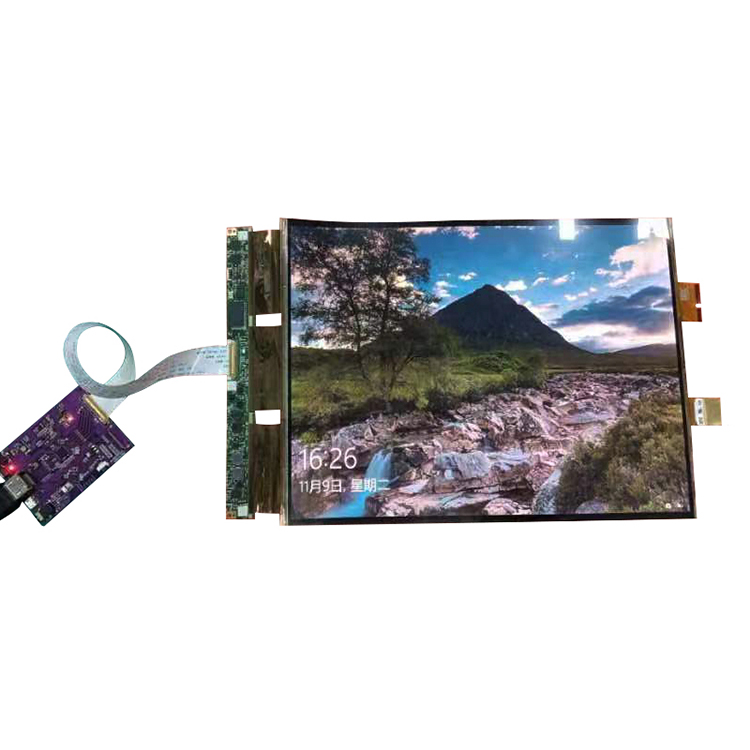

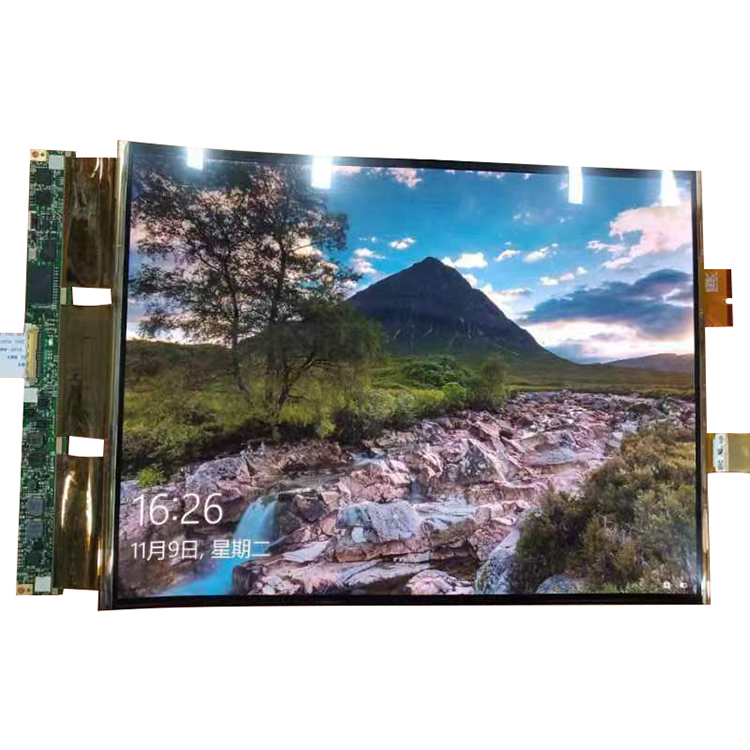

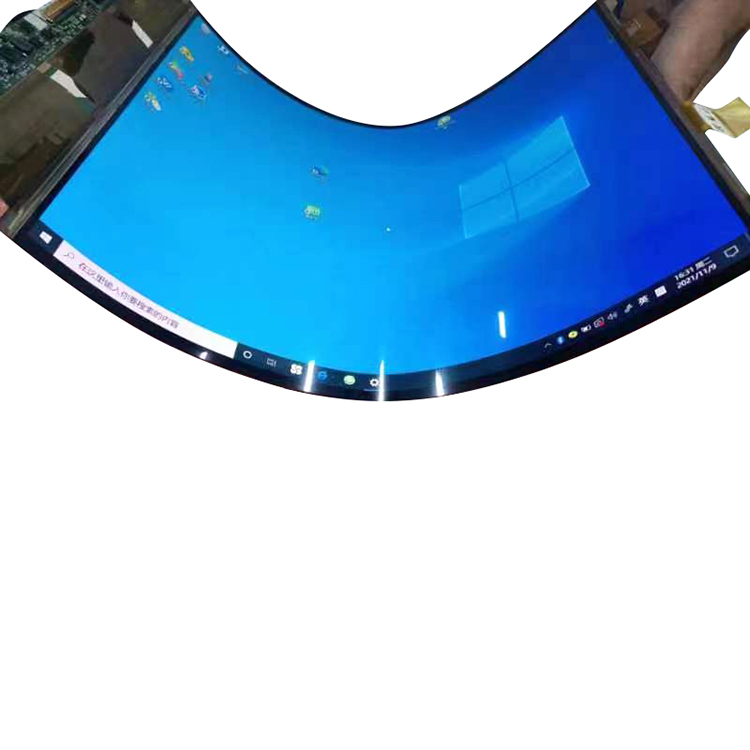

13.3 inch Flexible OLED 1536x2048 AMOLED bendable display panel ,HDMI Board
DESCRIPTION
The LP133QX1 is a Color Active Matrix Organic Light Emitting Diode Display (OLED). The matrix employs
Low Temperature Poly Si Transistor as the active element. It is a top emission display type. It has a 13.3
inch diagonally measured active display area with QXGA resolution (1536 horizontal by 2048 vertical pixel
array). Each pixel is divided into Red, Green and Blue sub-pixels.. Gray scale or the brightness of the sub-
pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors. The LP133QX1 has been designed to apply the interface method that enables high speed,low EMI, eDP interface with PSR. The LP133QX1 is intended to support applications where thin thickness,high contrast ratio, high color gamut. The LP133QX1 characteristics provide an excellent foldable display forPortable or Monitor mode such as tablet or notebook PC.
SPECIFICATIONS
General Specification
Active Screen Size:13.3 inches diagonal
Outline Dimension:213.80 (H, typ.) x 284.80 (V, typ.) x 0.53 (D, typ) [mm] (w/o PCB)
Pixel Pitch:0.132 mm X 0.132 mm
Pixel Format:1536 horiz. by 2048 vert. Pixels RGB Tri-angle arrangement
Color Depth:8-bit, 16.7M colors
Luminance, White:300 cd/m2
(Center 1point, Typ., OPR 80%)
240 cd/m2
(Center 1point, Typ., OPR 100%)
Power Consumption:Total 10.44W (Typ.) Logic : 1.7W (Typ. @ Mosaic), EL : 8.74W (Typ. @ Full White)
Weight:120g (Max.)(w/o Protect Film)
Bending Radius:3R (Typ.)
Surface Treatment:Glare, Hard coat (6H Cover Window Only) and Anti Fingerprint
RoHS Compliance:YES
BFR / PVC / As Free:YES

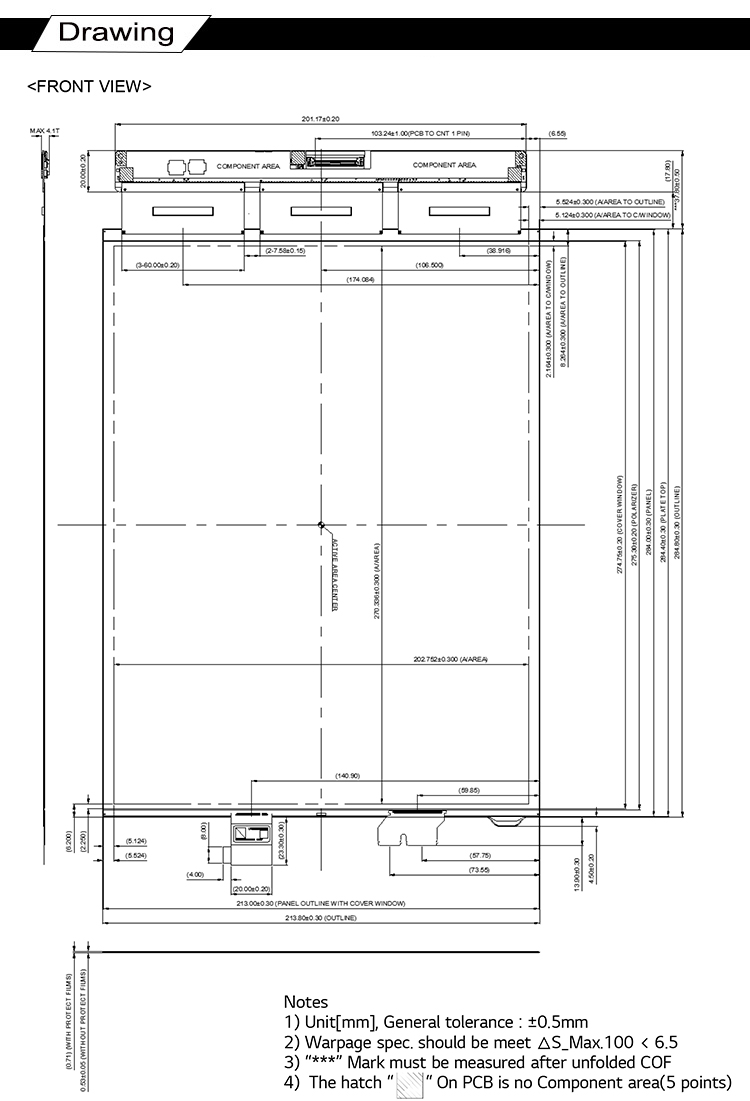

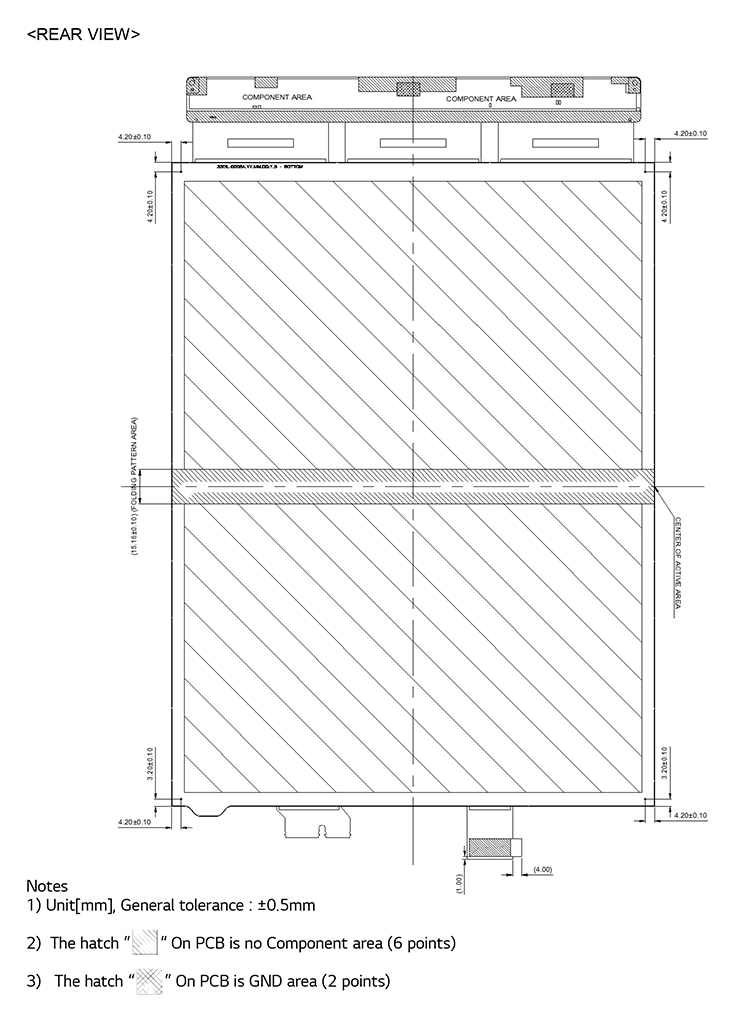

Drawing

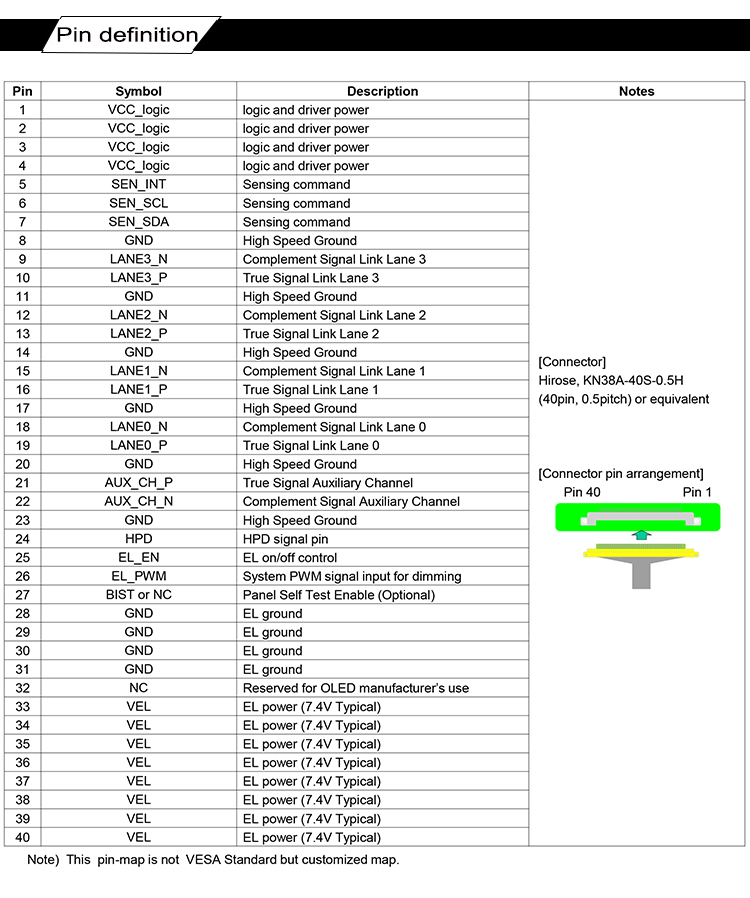

PIN Definition:
