Please kindly contact us for full data sheet of the display.
DESCRIPTION

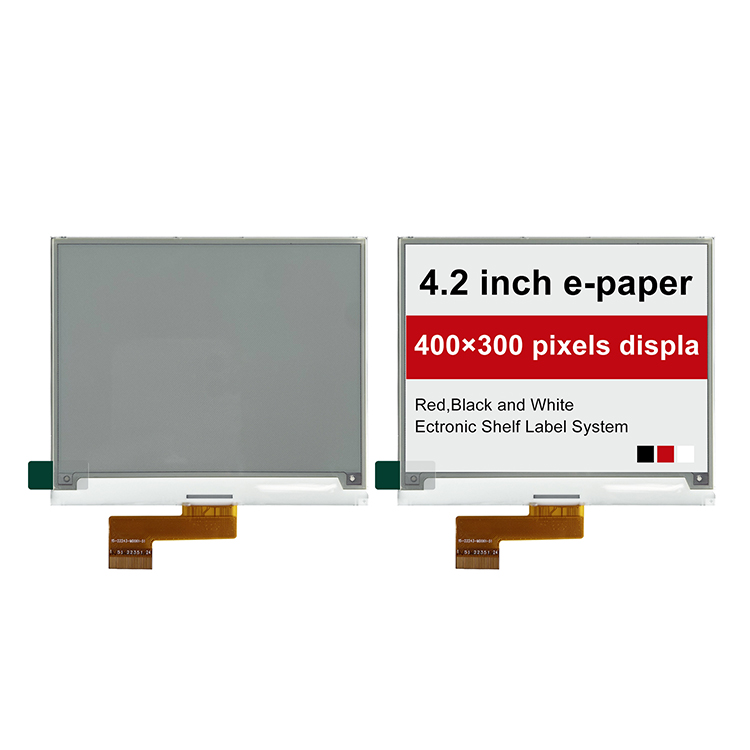

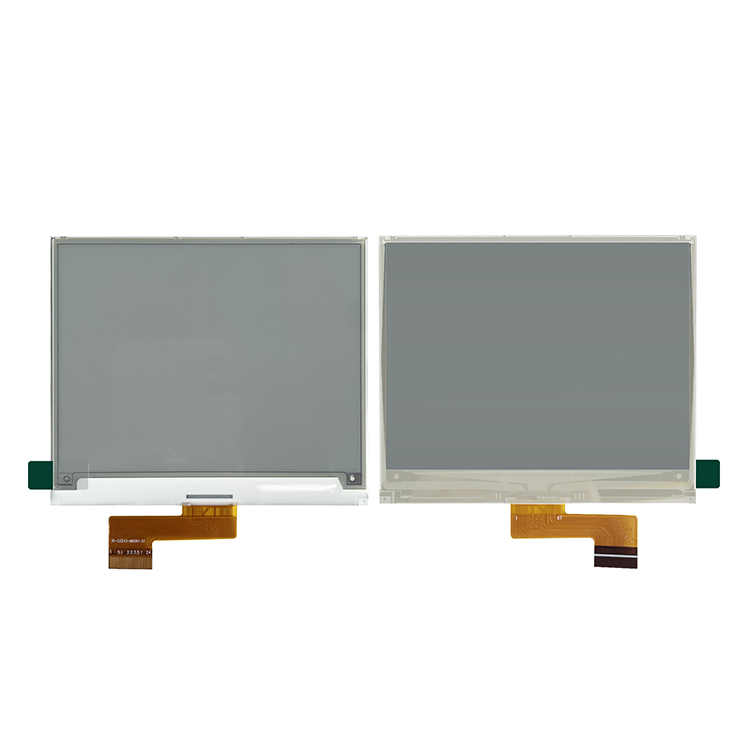

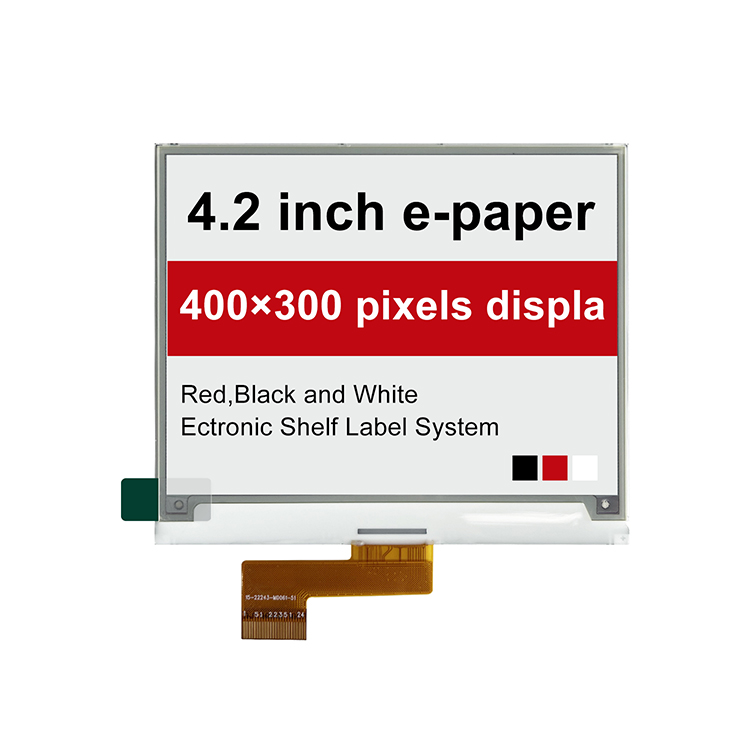

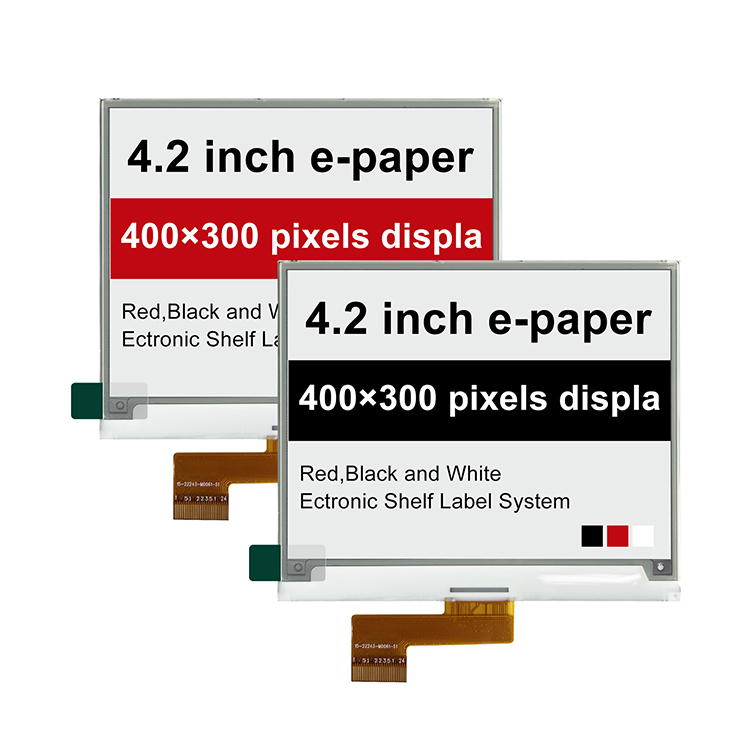

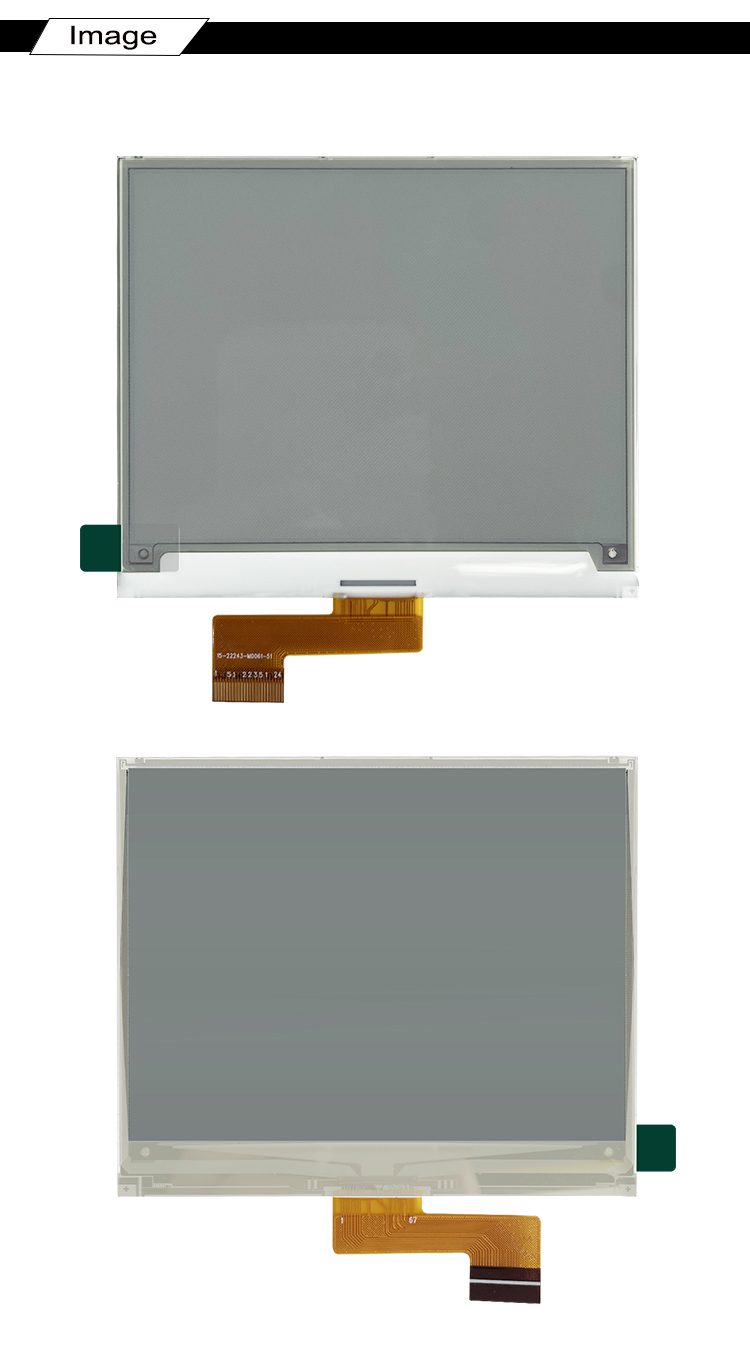

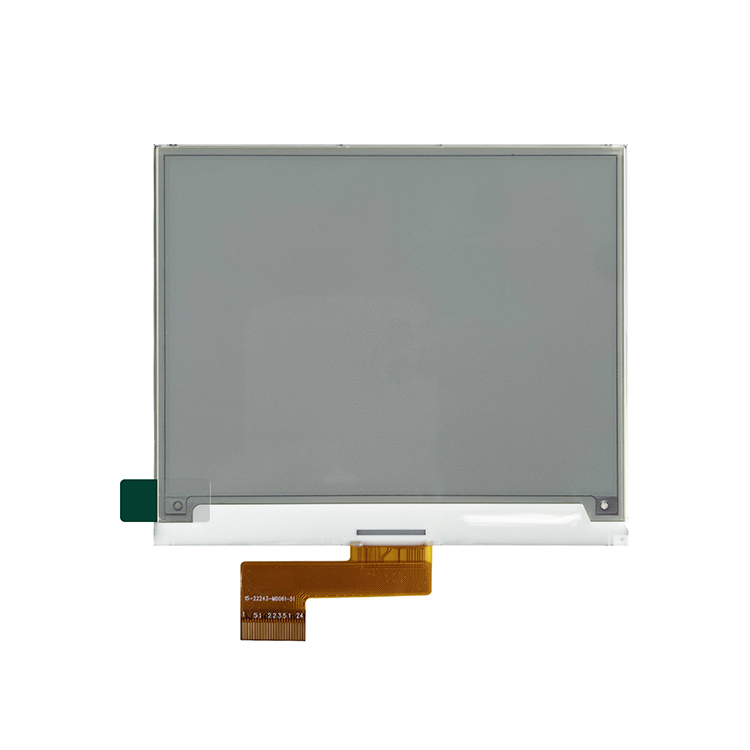

HICENDA HE006F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The 4.2”active area contains 400×300 pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
GENERAL SPECIFICATION
| Display Type: | Eink display |
| Display Mode: |
Active Matrix Electrophoretic Display
|
| Model Number: | HE006F |
| Diagonal Screen size: | 4.2 inch |
| Interface: |
4-wire SPI or 3- wire SPI i
|
| Number of Pixels: |
400(H)×300(V)
|
| Panel Size: |
36.7(H)×79.0 (V) ×0.92(D)(mm)
|
| Driver IC: |
SSD1683A |
| Active Area: |
84.8(H)×63.6(V)(mm)
|
|
Display Mode:
|
EINK
|
|
Pixel Pitch:
|
0.212×0.212(mm)
|
|
Weight: |
15.5±0.5(g)
|
|
Color:
|
Eink
|

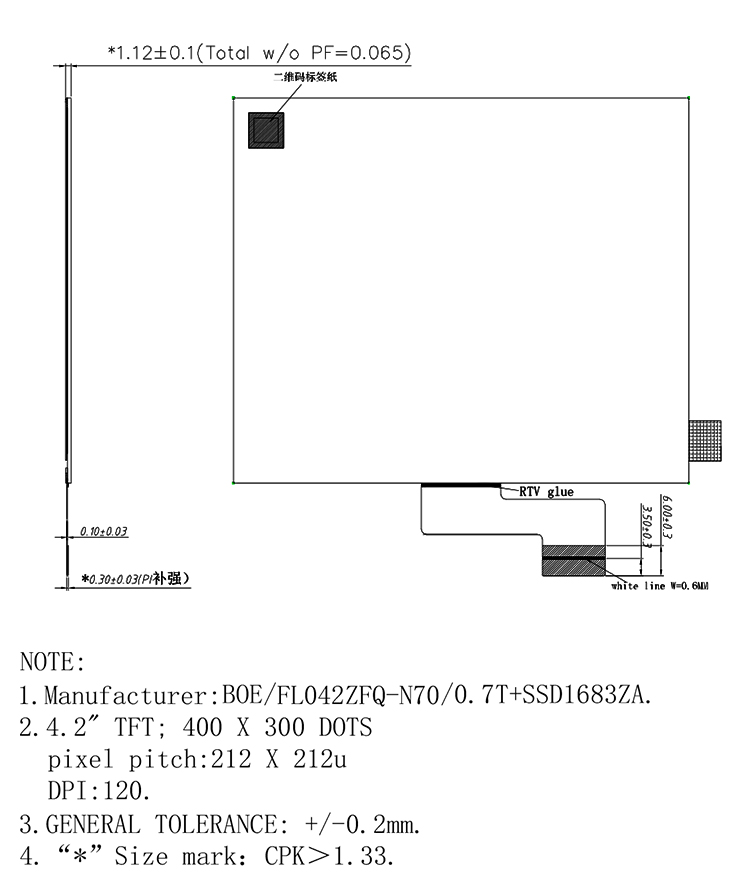

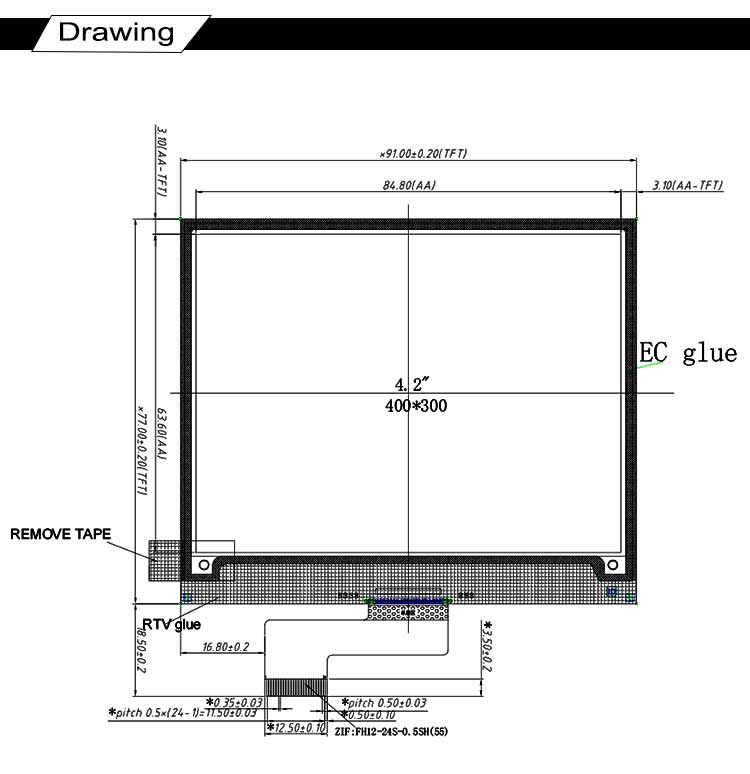

DRAWING

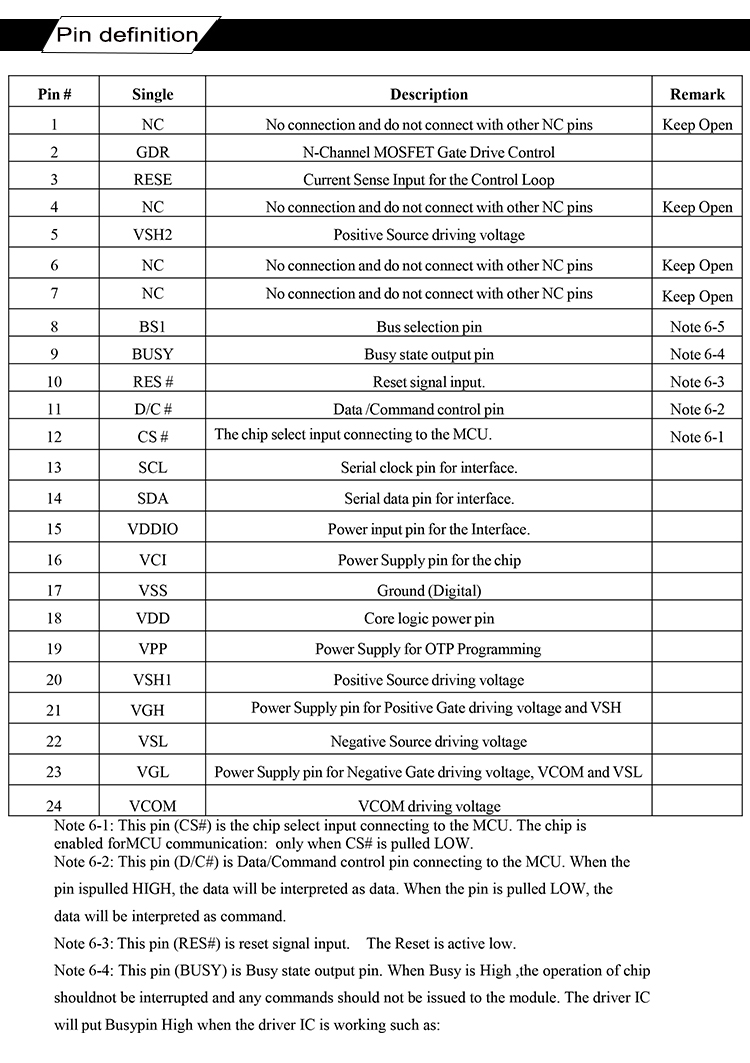

INTERFACE PIN FUNCTION
