Please kindly contact us for full data sheet of the display.
DESCRIPTION

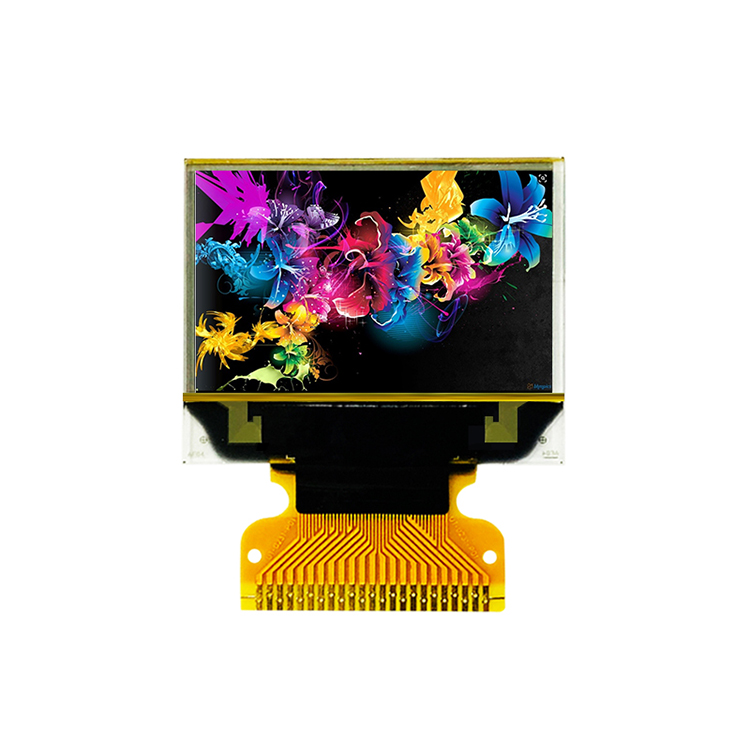

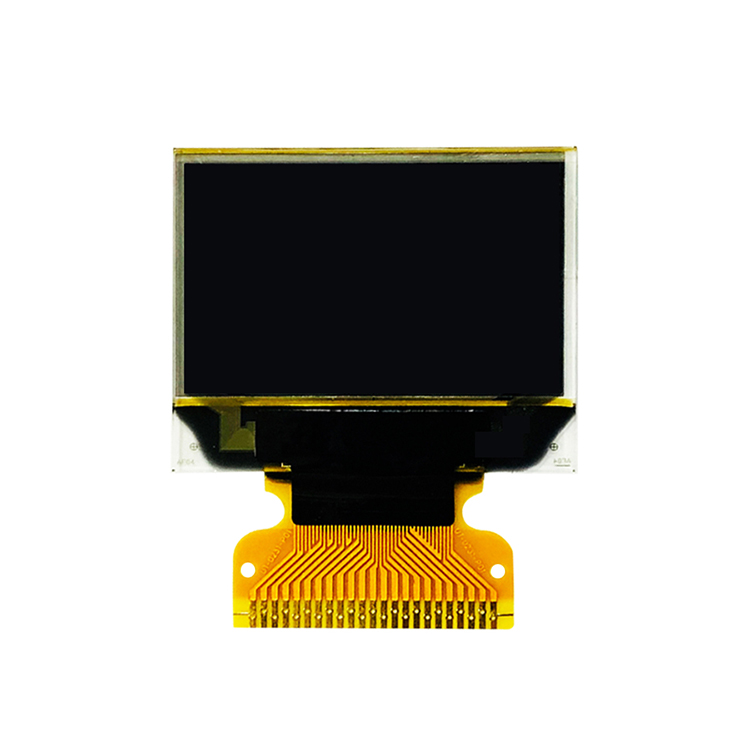

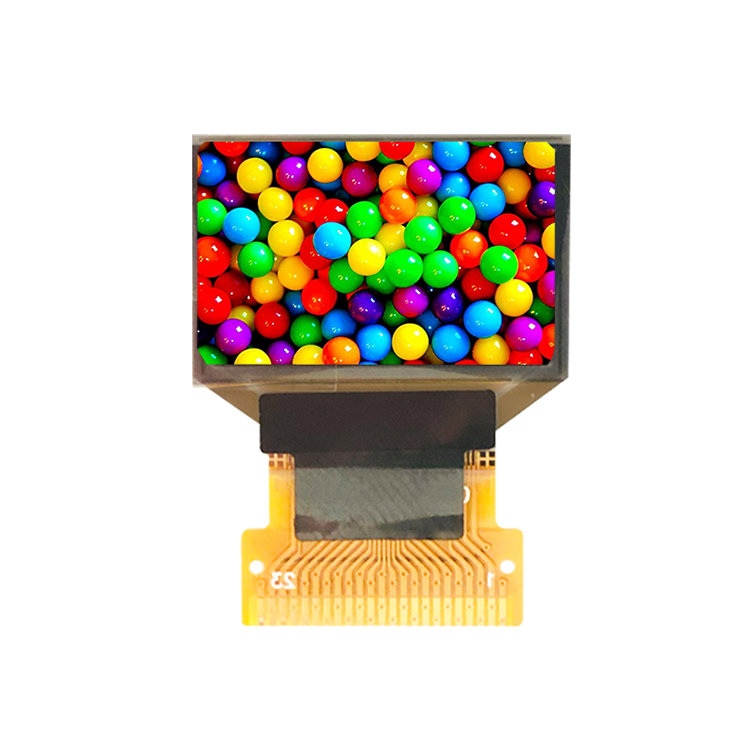

HICENDA OLED 0.95 is a passive matrix micro color OLED display module which is made of 96x64 dots. It has the module dimension of 25.7x1331 IC, it supports I2C interface, 2.4V-3.5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.95 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.
GENERAL SPECIFICATION
|
Product Name
|
0.95 inch 96*64 OLED module Full color HD square OLED display
|
|
Display Mode:
|
Passive Matrixe OLED
|
|
Module Size
|
25.70 (W) x 22.20 (H) x 1.50 (D)MM
|
|
Active Size
|
20.14 (W) x 13.42 (H)MM
|
|
Interface
|
8-bit parallel,4-wire SPI
|
|
LCD Driver IC
|
SSD1331Z
|
|
Number of Dots
|
96*64
|
|
Pixel Pitch:
|
0.07 (W) x 0.21 (H)MM
|
|
Pixel Size
|
0.05 (W) x 0.19 (H)MM
|

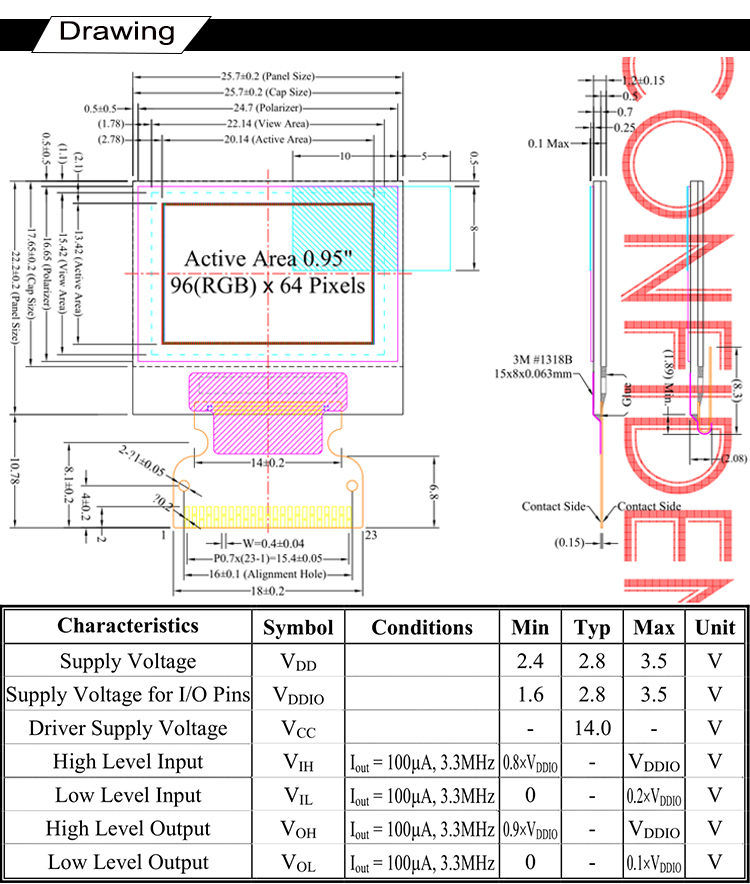

DRAWING

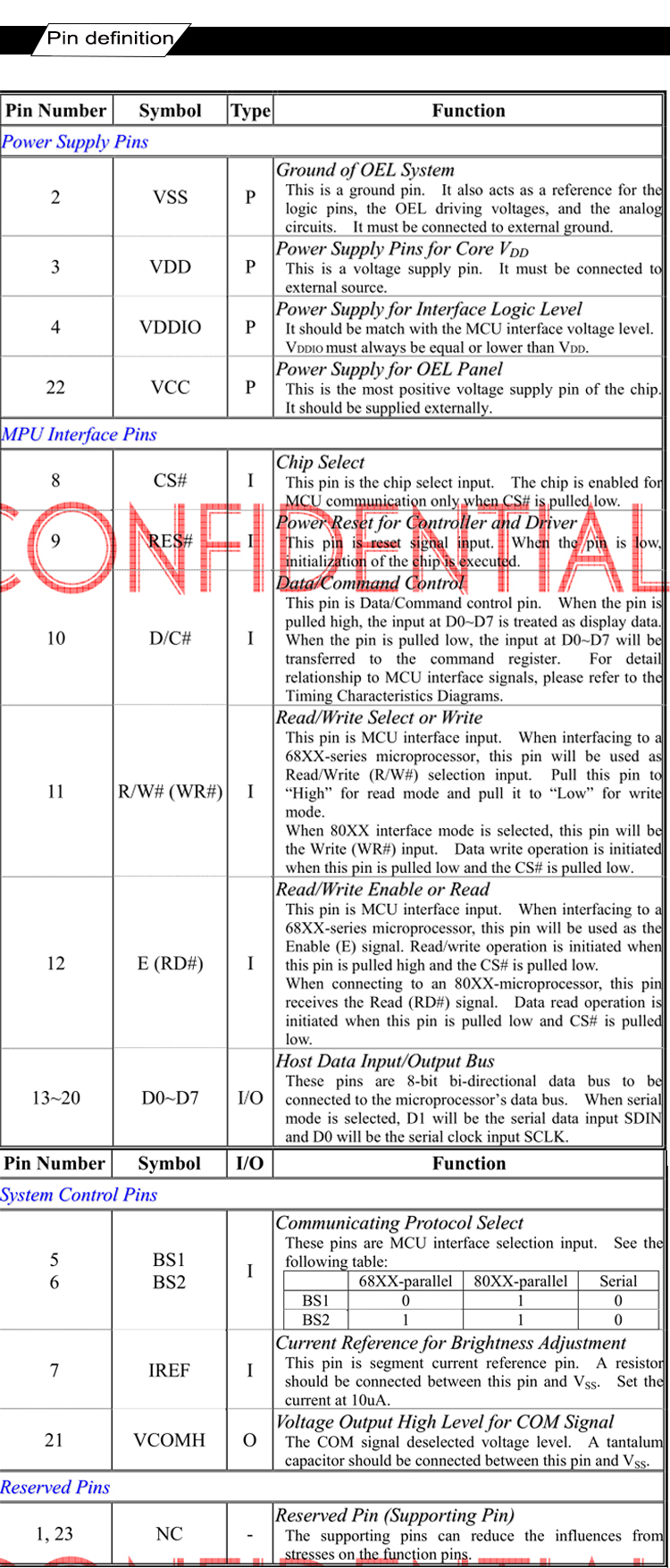

INTERFACE PIN FUNCTION
