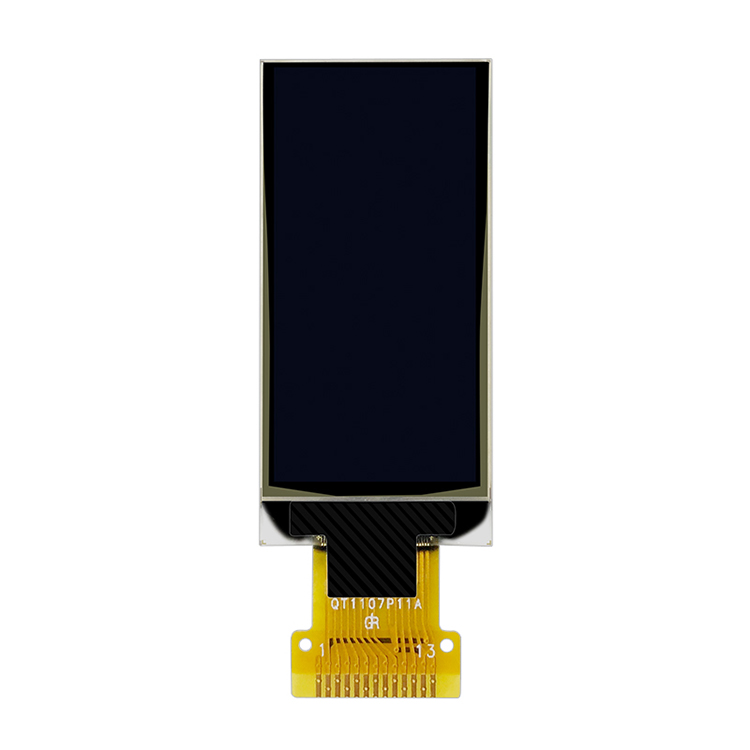

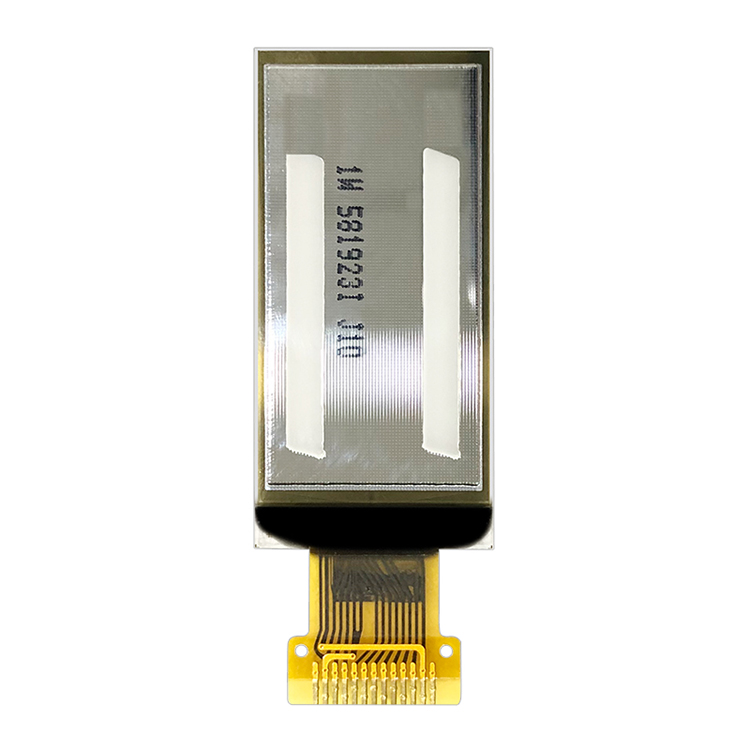

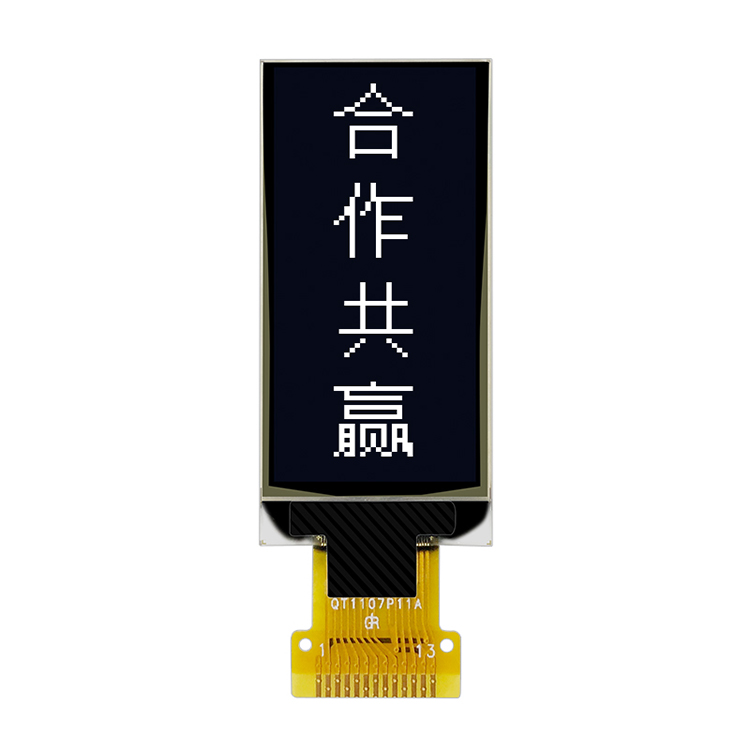

OLED Graphic Display 1.3", 64x128

  • Size: 1.3 OLED
  • Controller IC:SH1107
  • Resolution: 64*128
  • Interface: 4-wire SPI/I2C 13P
  • Product description: OLED Graphic Display 1.3", 64x128
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 1.3 is a  passive matrix micro OLED display module which is made of 64x128 dots. It has the module dimension of 17.1 × 35.8 × 1.43 mm and Active Area size 14.7 ×  29.42 mm. This OLED micro display is built in with SH1107 IC, it supports 4-wire SPI/I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.3 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type:                                                         oled display  (White)
Display Mode: Passive Matrix
Model Number:

HG--130-12864KSWEG16

Diagonal Screen size: 1.3 inch
Interface:

 4-wire SPI/I2C 13P  (Solering)

Drive Duty:

1/64 Duty

Number of Pixels:

64*128

Panel Size

17.1 × 35.8 × 1.43 (mm)

Driver IC:

SH1107

Active Area:

14.7 ×  29.42(mm)

Pixel Pitch:

0.23 x 0.23(mm)

Pixel Size:

0.154 x 0.154 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°

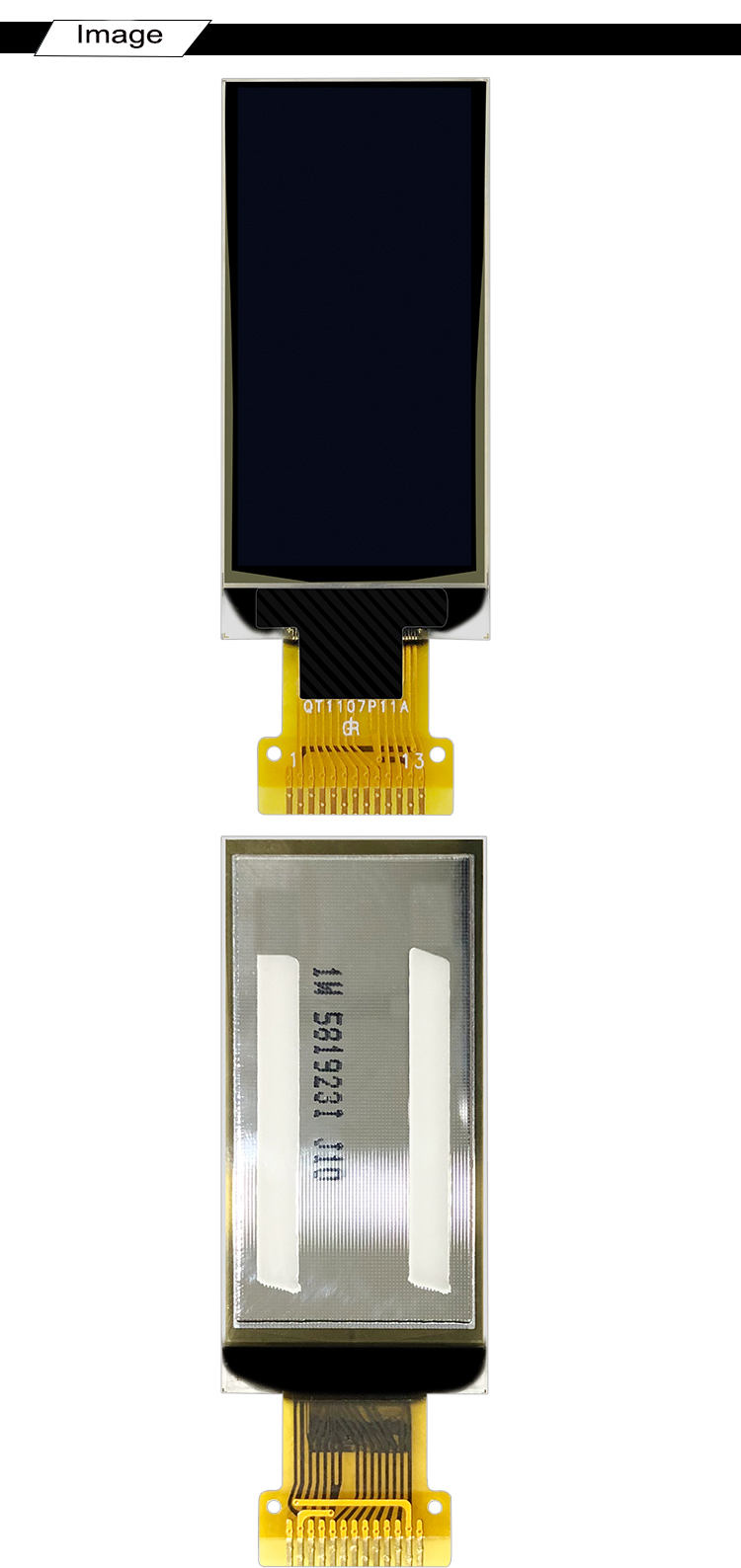

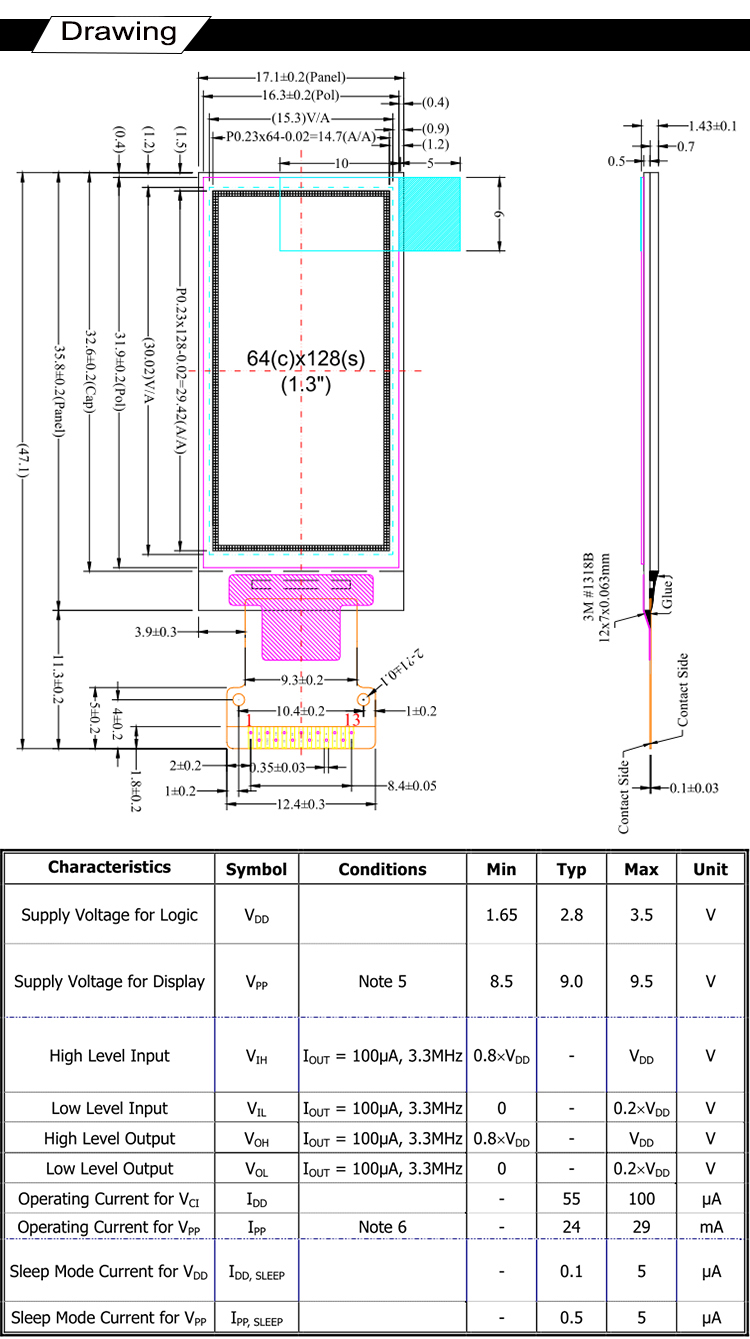

DRAWING

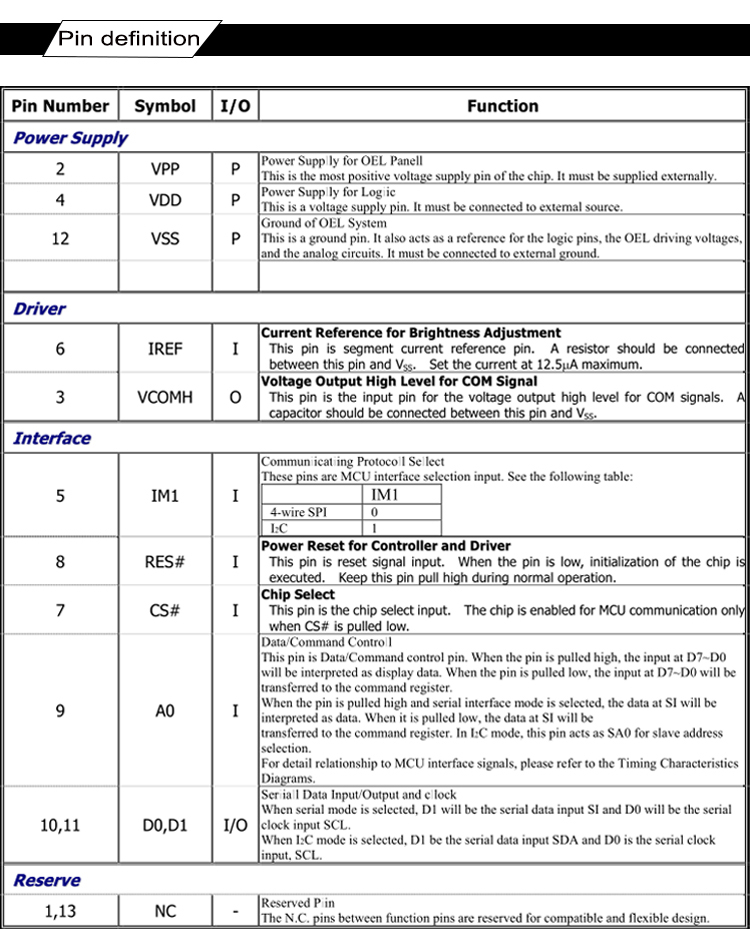

INTERFACE PIN FUNCTION
