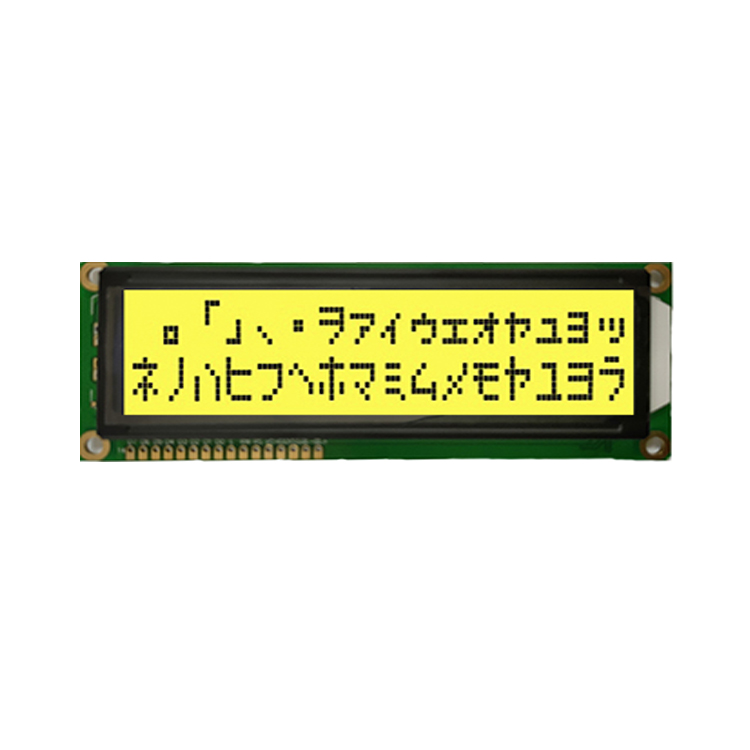

1602 Character Type LCD Panel Display 16x2 Module

  • Outline dimension: 80X36X13.5
  • Resolution:16 Characters x2 lines
  • Interface:6800 8-bit Parallel,6800 4-bit Parallel
  • Pins No: 16 pins
  • Product description: The LiquidCrystal library allows you to control LCD displays that are compatible with the ST7066 or Equivalent driver. There are many of them out there, and you can usually tell them by the 16-pin.
  • INQUIRY

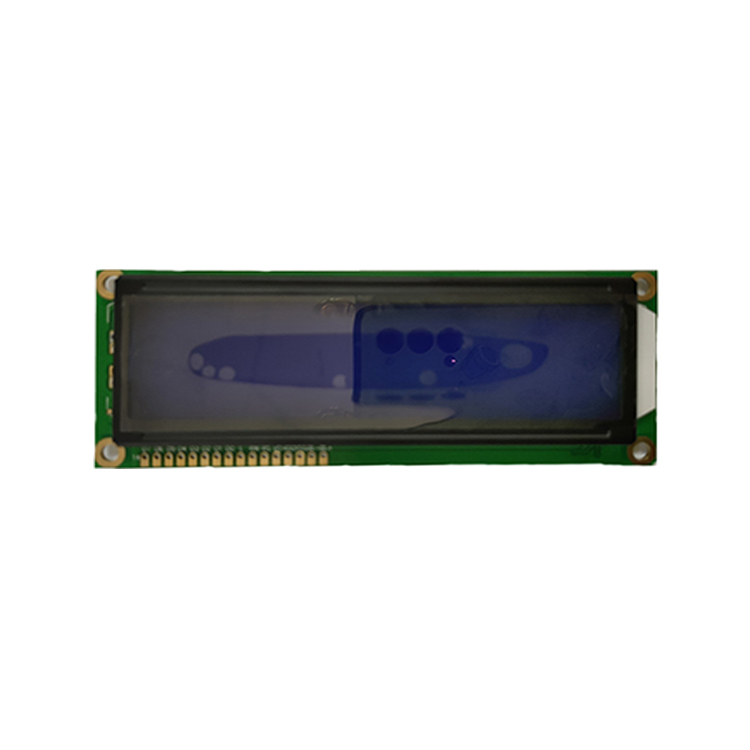

1602 Dot Matrix Character LCD Display Module Panel


DESCRIPTION

Hicenda 16x2 Character LCD Display HL1602B is having two pinout interfaces on upper and bottom sides of the LCD module. This 16x2 lcd display has the outline size of 80.0 x 36.0 mm and VA size of 66.0 x 16.0 mm and the maximum thickness is 13.2 mm. HL1602B 16x2 LCD Displays are built-in controller ST7066 or equivalent. It is optional for + 5.0 V or + 3.0 V power supply. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K. This type of module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

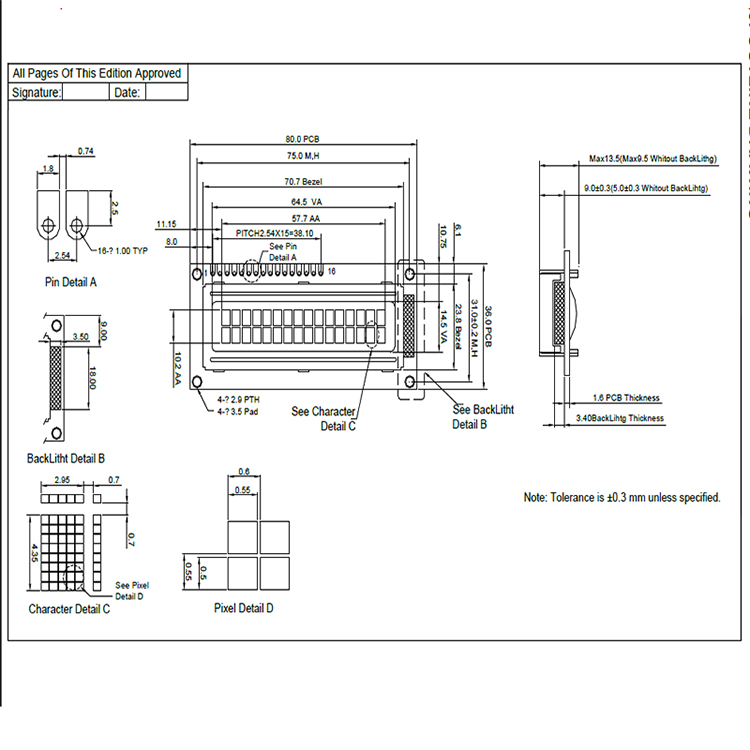

DRAWING

SPECIFICATIONS

Interface Pin Function



Pin No. Symbol Description
1                            VSS                                       Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -


General Specification


Product Name
1602B Dots Graphic character lcd display module
Model
HL1602B
Type
COB LCD Display, dots graphic Display
Dot Format
16x2 Dots
Display format
16character*2lines
Display mode
STN, Transmissive , Negative
Color
White Display Dot
Blue Background
Backlight
White Backlight
Brightness
500cd/m2
Outline Dimension
80X36X13.5mm
Viewing Area
64.5X14.5mm
Active Area
57.7x9.4mm
Dot Size
0.55X0.5mm
Dot Pitch
0.60x0.55mm
Viewing Direction
6 O'Clock
Interface
6800 4-bit or 6800 8-bit Parallel, 16 Pins
Driving Method
1/16 Duty, 1/5 Bias
Supply Voltage
5.0V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃


Electrical Characteristics

Item Symbol Standard Value
typ.
Unit
Input Voltage                                                                                   VDD              3/5            V
Recommended LCD Driving
Voltage for Normal Temp. Version module @25°C
VDD-VO 3.70 V
