1. Display Specifications
1) Display Mode: Amoled
2) Display Color: RGB
3) Screen Size (inch): 1.39 inch
4) Display Resolution (dot):400xRGBx400
5) Brightness: 350 cd/m2
6) Interface Type: MIPI DSI
7) Driver IC: RT4723

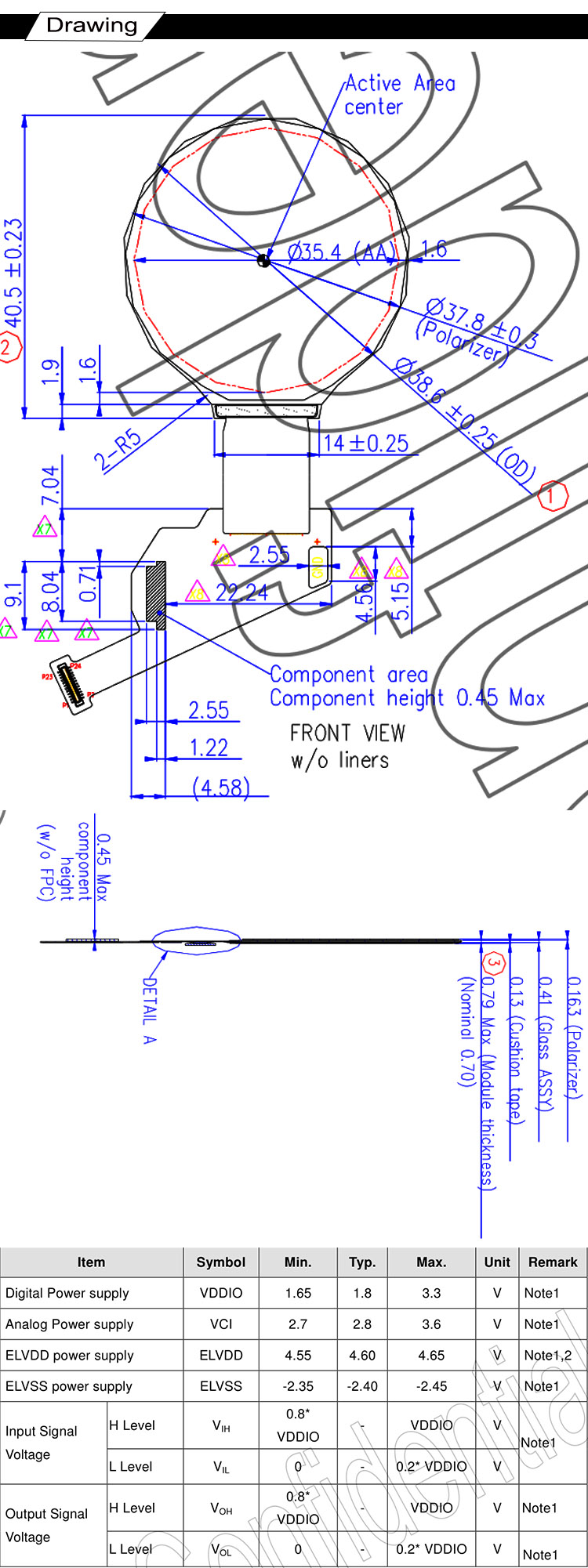

2. Mechanical Specifications
| Display Type: | amoled display |
| Display Mode: | initiative Matrix |
| Outline Dimension (mm*mm*mm) |
38.6 (H) * 40.5(V) * 0.7(T) |
| Active Area (mm*mm) | 35.4 (H)*35.4(V) |
| Interface: |
MIPI DSI |
| Brightness (nits): |
350 |
| Number of Pixels: |
400 x 400 |
| Panel Size: |
14.5 x 11.6 x 1.2 (mm) |
| Driver IC: | RT4723 |
|
Display Color (M) |
16.7M |
| Pixel Pitch: |
0.175 x 0.175 (mm) |
| Operating Temperature |
-20℃~+70℃ |
|
Storage Temperature |
-40℃~+80℃ |
|
Operating Voltage: |
1.65V~3.3V |
