0.91"

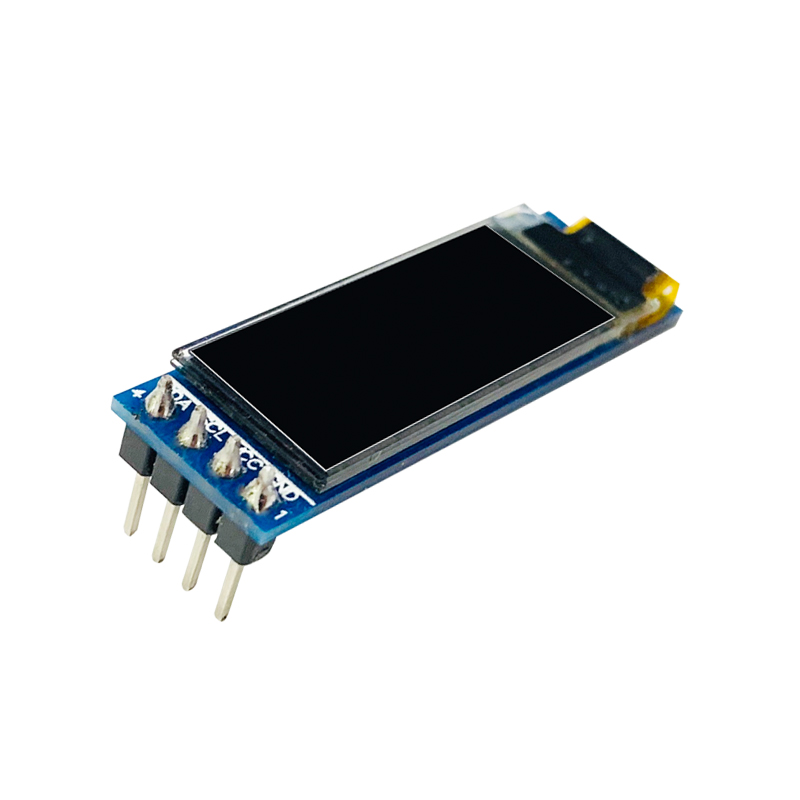

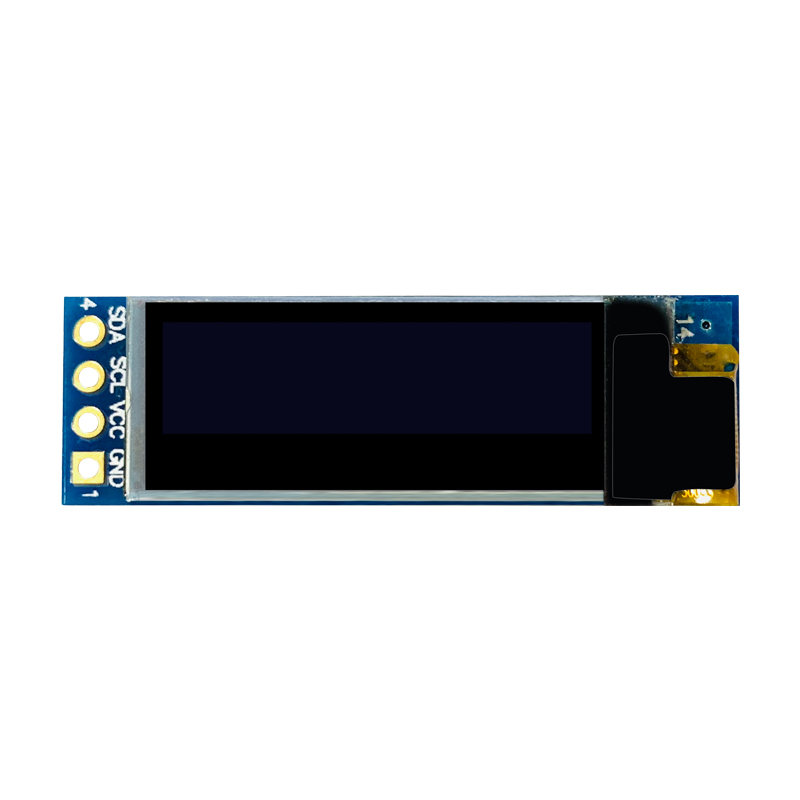

0.91 inch 128x32 OLED Display Module 128*32 SSD1306 I2C Serial Interface

0.91 inch 128x32 OLED Display Module 128*32 SSD1306 I2C Serial Interface

0.91 inch 128x32 OLED Display Module 128*32 SSD1306 I2C Serial Interface

0.91 inch 128x32 OLED Display Module 128*32 SSD1306 I2C Serial Interface

0.91 inch 128x32 OLED Display Module 128*32 SSD1306 I2C Serial Interface

0.91 inch 128x32 OLED Display Module 128*32 SSD1306 I2C Serial Interface

Driver IC:SSD1306
Size: 0.91
Resolution: 128*32
Interface: I2C
Product description: Hicenda Technology Co., Ltd can supply high quality 0.91 inch OLED display module for device
INQUIRY

1. Display Specifications

Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
Interface: I2C

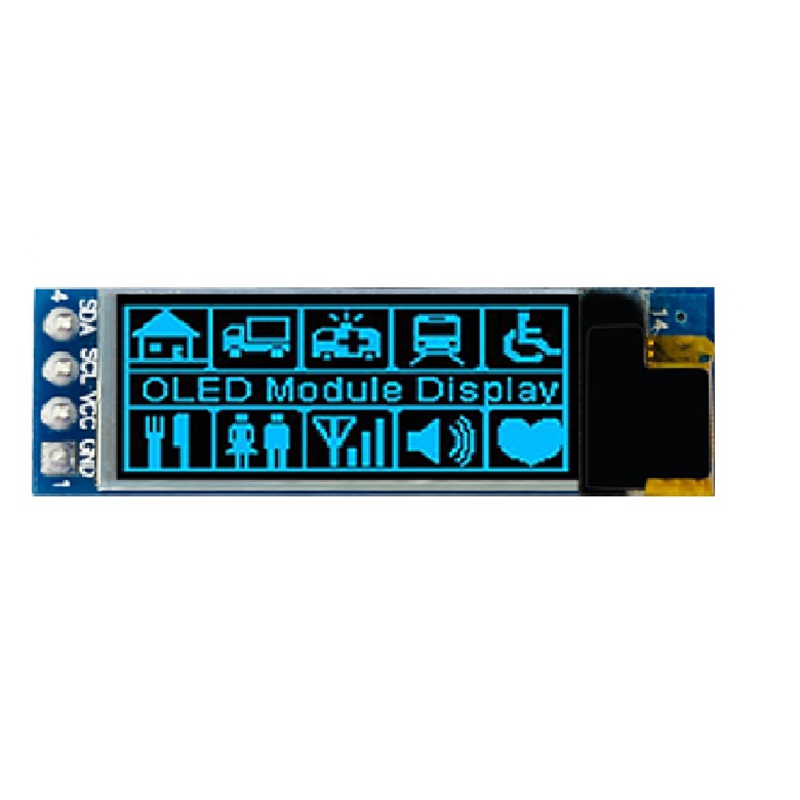

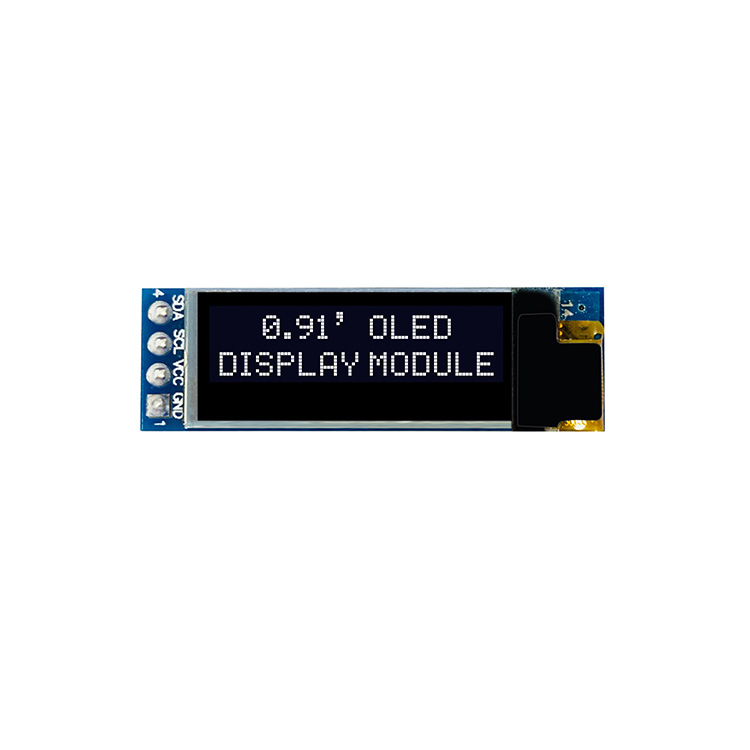

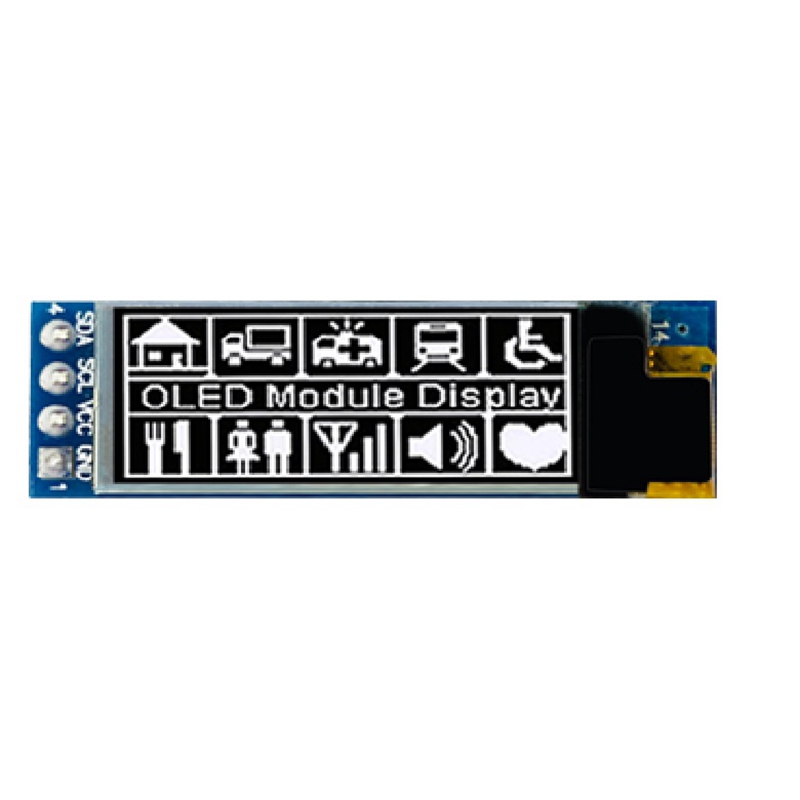

Display Color: White/Blue

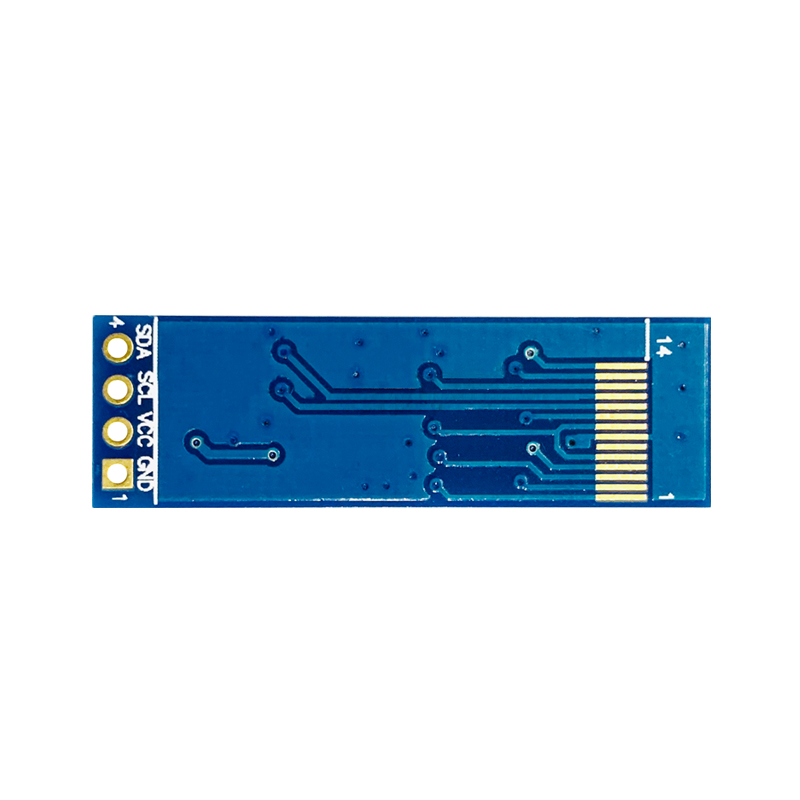

Pin Description:

GND: Power Ground

VCC: Power + (DC 3.3V ~5V)

SCL: Clock Line

SDA: Data Line

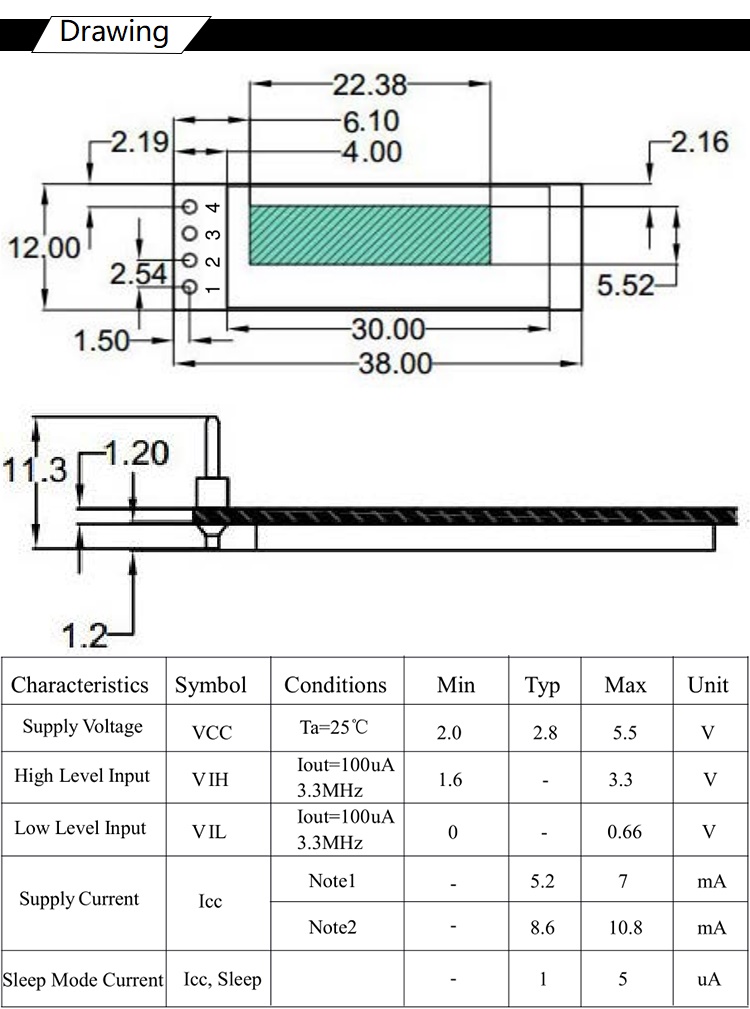

2. Mechanical Specifications

Size	0.91”
Control IC	SSD1306
Resolution	128x32
Viewing Area	22.384x5.584 (mm)
Physical Dimensions	15mm x 16mm
Interface	IIC
PIN Number	4 PIN
Display Color	White or Blue
Operating Temperature	-40 to + 85
Operating Voltage	3.3V-5V
Module Weight	4g
MOQ	1 Piece
Interface Definition	1>GND 2>VCC 3>SCL 4>SDA
