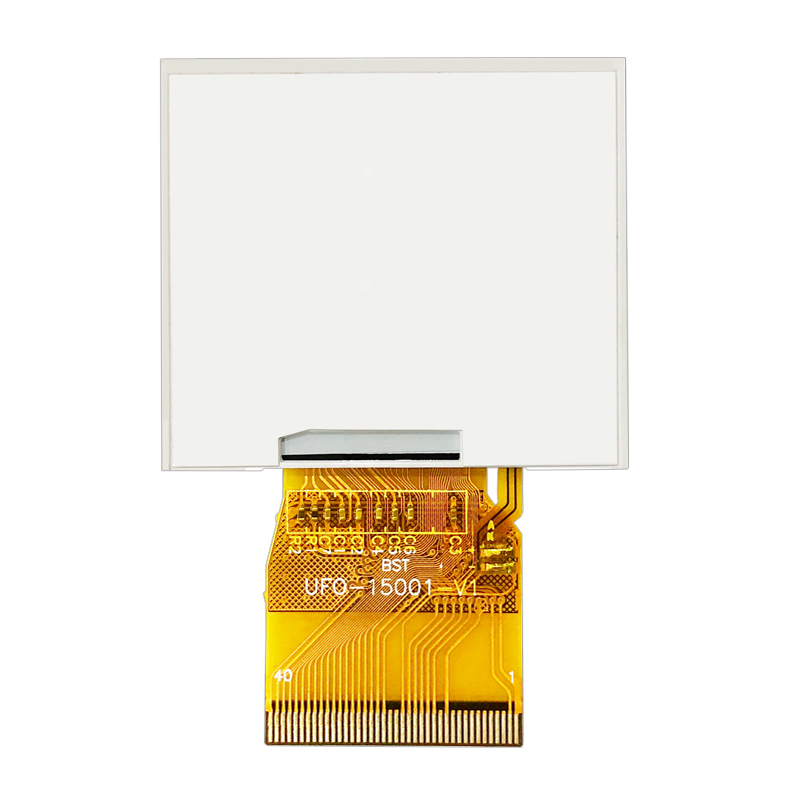

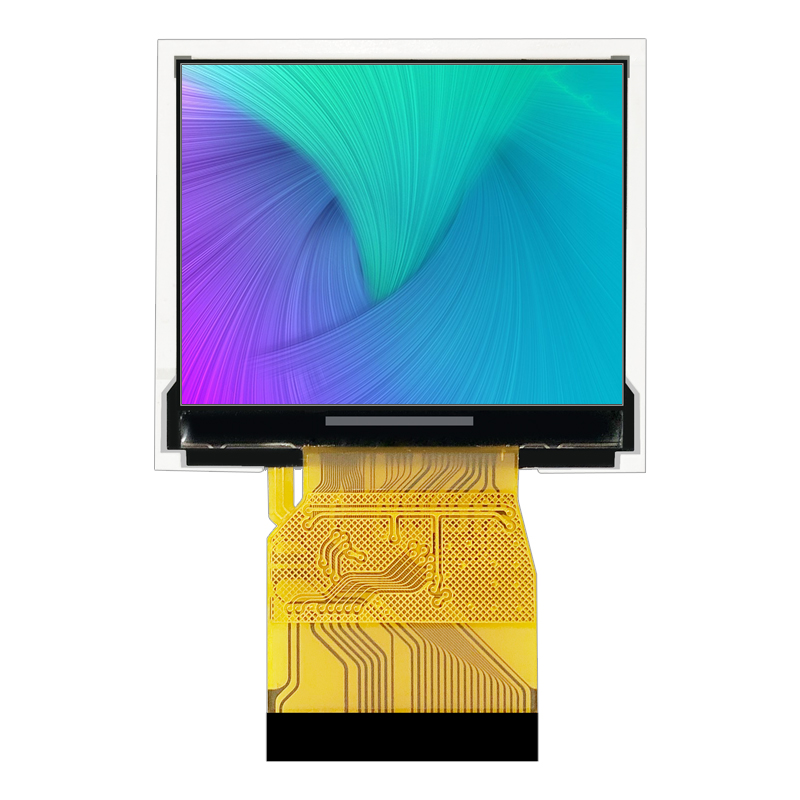

HD 1.5 inch TFT LCD display 480x240 square IPS OTA5182 SPI RGB MCU interface

HD 1.5 inch TFT LCD display 480x240 square IPS OTA5182 SPI RGB MCU interface

HD 1.5 inch TFT LCD display 480x240 square IPS OTA5182 SPI RGB MCU interface

HD 1.5 inch TFT LCD display 480x240 square IPS OTA5182 SPI RGB MCU interface

Price: $2.89-$3.59
Size: 1.50
Resolution: 240*480
Interface: RGB
Product description: Hicenda Technology Co., Ltd can supply IPS 1.5 Inch TFT LCD Screen Display Panel 240*480 IPS Full Color with 40Pin SPI Interface OTA5182 IC Driver for industrial products
INQUIRY

1. Display Specifications

LCD Size: 1.50 inches
Dot Matrix Size: 240*480
LCD Color: 162K
Hardware Interface: RGB
Driver IC: OTA5182
Operating Temperature: -20 - 70
Working Power Supply: 3.3V

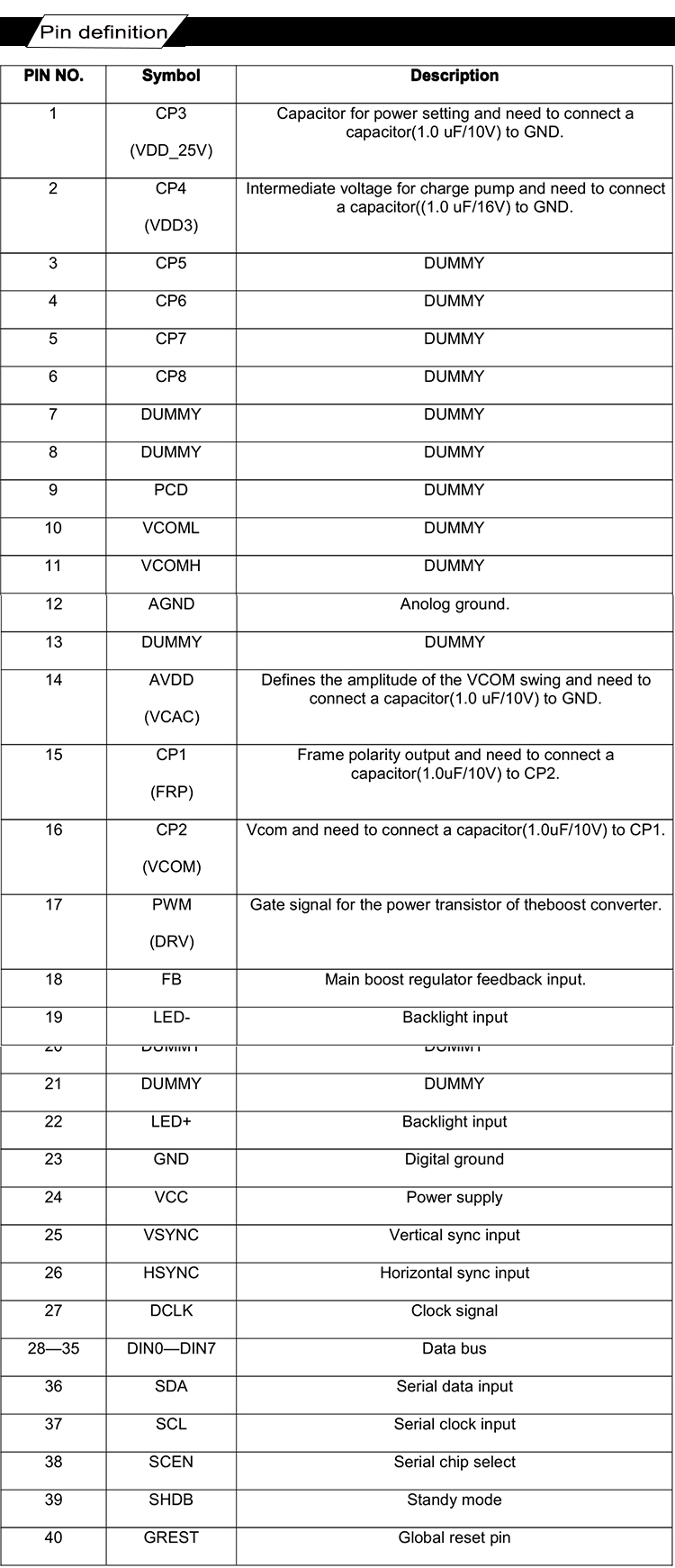

PIN NO: 40Pin
Display Area: 29.76*22.32mm
Size: 37.*132.7*2.5mm

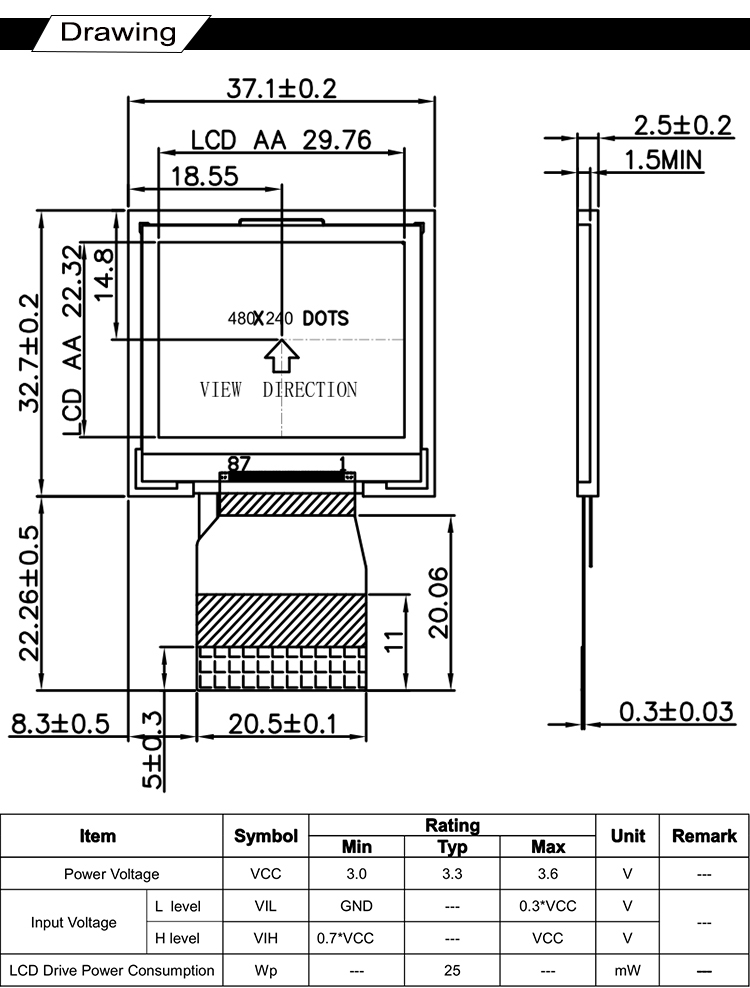

2. Mechanical Specifications

Product Name	1.5 Inch TFT Sreen
Active Area (WxH)	29.76(H) x 22.32(V)
Display Outline Size	37.1(H) x 32.7(V) x 2.5(D)
Resolution	480RGBx240DOTS
Polarizer Mode	RGB Stripe
Backlight	White backlight, two in a row
Interface Type	RGB
Technology Type	a-Si TFT active matrix
Controller / Driver	OTA5182
