1.4"

1.4 Inch 128x128 dots Color TFT LCD Display 1.40 inch customized tft lcd display with wide temperature 12pin

1.4 Inch 128x128 dots Color TFT LCD Display 1.40 inch customized tft lcd display with wide temperature 12pin

1.4 Inch 128x128 dots Color TFT LCD Display 1.40 inch customized tft lcd display with wide temperature 12pin

1.4 Inch 128x128 dots Color TFT LCD Display 1.40 inch customized tft lcd display with wide temperature 12pin

Price: $2.89-$3.59
Size: 1.4
Resolution: 128*128
Driver ic：GC9106
Product description: Hicenda Technology Co., Ltd can supply high quality 1.4 inch small tft display for consumer electronics,1.4 inch lcd tft display with 8080 parallel interface
INQUIRY

1. Display Specifications

LCD Size: 1.4 inches
Dot Matrix Size: 180*180
LCD Color: 262K Full Color
Hardware Interface: 8080 parallel interface
Driver IC: GC9106
Operating Temperature: -20 - 70
Working Power Supply: 3.3V

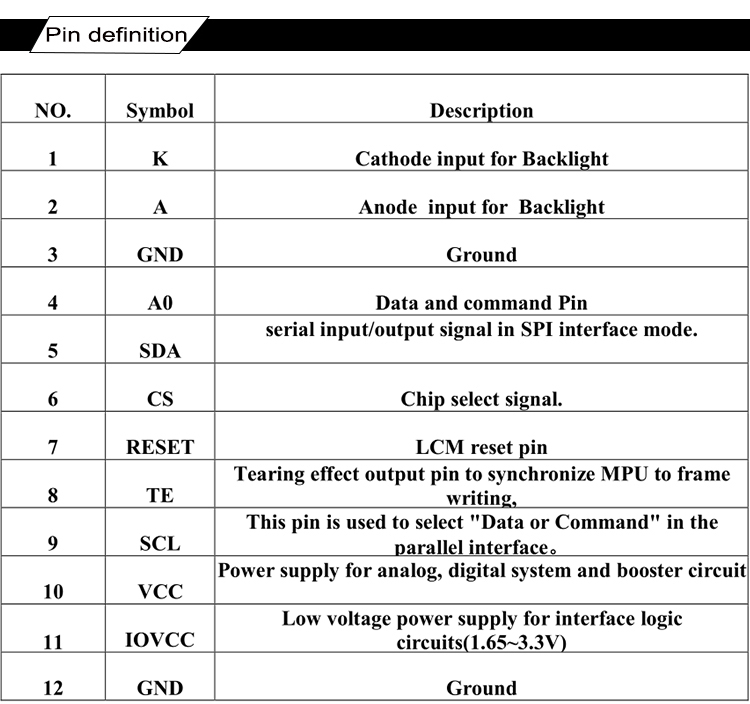

PIN NO: 12Pin
Display Area: 25.5*26.5mm
Size: 29.5*36.5*2.3mm

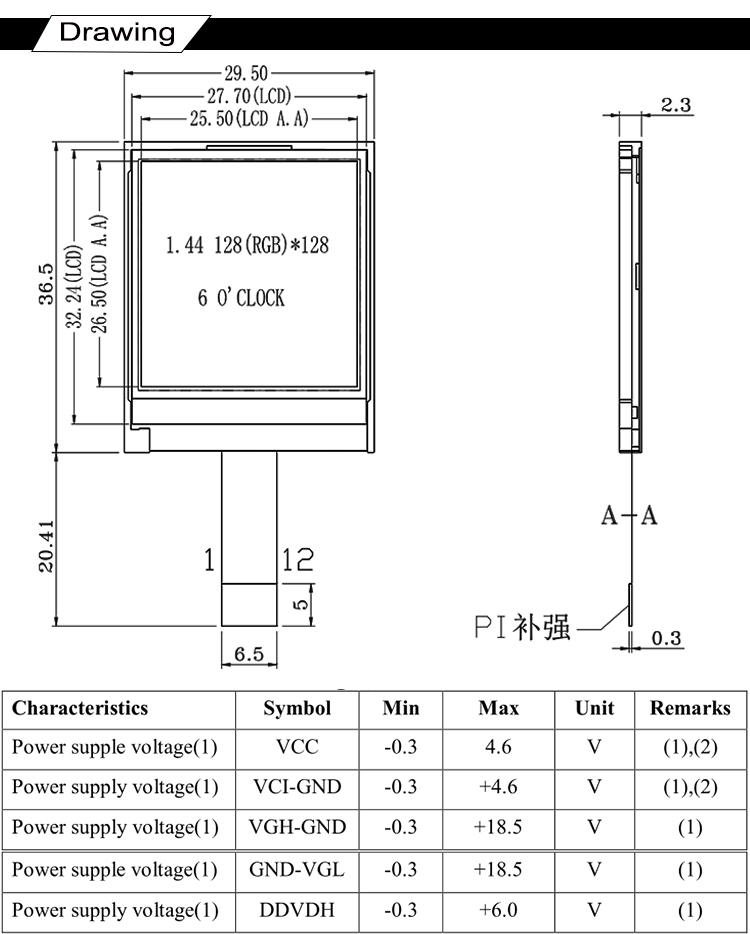

2. Mechanical Specifications

Product Name	1.40 Inch TFT Mini LCD Screen Color LCD Dispaly
Active Area (WxH)	25.2(H) x 25.2V)
Display Outline Size	29.5(H) x 36.5(V) x 2.3(D)
Resolution	180RGBx180DOTS
Polarizer Mode	RGB Stripe
Backlight	3 LEDs
Interface Type	8080 parallel
Technology Type	a-Si TFT active matrix
Controller / Driver	GC9106
