  • Custom Cover Glass with AG/AR/AF and OCA Processing for TFT OLED Displays

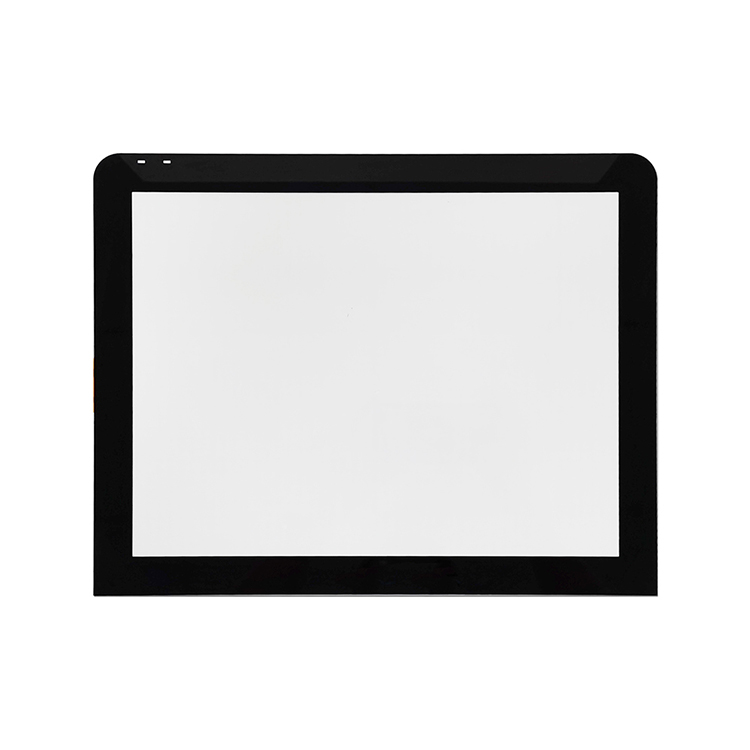

Custom Cover Glass with AG/AR/AF and OCA Processing for TFT OLED Displays

Custom Cover Glass with AG/AR/AF and OCA Processing for TFT OLED Displays

  • Material:Gorilla® Glass
  • Glass thickness: 1.8-15mm
  • Surface treatment: AG/AF/AR
  • Customization: Avaialble
  • Product description: Custom Cover Glass with AG/AR/AF and OCA Processing for TFT OLED Displays in Industrial Control Devices
  • INQUIRY

Custom Cover Glass with AG/AR/AF and OCA Processing for TFT OLED Displays in Industrial Control Devices


Custom cover glass solutions play a decisive role in the durability, optical clarity, and reliability of TFT OLED displays used in industrial control devices. By combining advanced materials with specialized surface treatments such as anti-glare (AG), anti-reflection (AR), and anti-fingerprint (AF), these glass panels enhance both visual performance and user interaction. With optional OCA (Optical Clear Adhesive) processing, the integration ensures precise bonding, high transparency, and long-term stability, making them suitable for demanding industrial environments.



Advanced Material Selection


The foundation of a reliable cover glass lies in the choice of substrate. Multiple glass and polymer options are available, each tailored for specific performance requirements:

  1. Gorilla® Glass – exceptional hardness and scratch resistance.
  2. AGC Dragontrail Glass – high impact strength with excellent chemical resistance.
  3. Panda Glass – cost-effective with balanced optical and mechanical properties.
  4. Aluminosilicate Glass – high durability and thermal resistance.
  5. Soda Lime Glass – economical choice for standard industrial applications.
  6. PMMA (Acrylic) – lightweight, offering good optical clarity.
  7. Polycarbonate (PC) – outstanding impact resistance and flexibility.



Key Technical Specifications

The following table outlines the primary technical features of custom cover glass used in industrial TFT OLED display systems:

Parameter Specification
Glass Thickness                            1.8 mm – 15 mm
Surface Treatment AG (Anti-Glare) / AR (Anti-Reflection) / AF (Anti-Fingerprint)
IK Impact Resistance IK6 – IK10
Optical Transmittance ≥ 90%
Printing One-color black silkscreen printing
Tempering Chemical tempering for enhanced strength
Antibacterial Treatment Long-lasting antibacterial coating
Bonding Processing OCA (Optical Clear Adhesive)
UV Resistance Outdoor stability, resistant to discoloration or peeling
Customization Full design customization available





Surface Engineering for Optical Performance

Anti-Glare (AG) Treatment

AG coating minimizes surface reflections and diffused light, improving readability under intense ambient lighting conditions, a critical requirement in outdoor or high-brightness industrial workstations.


Anti-Reflection (AR) Treatment

AR technology enhances light transmission and reduces surface reflectance to below 1%, delivering sharper visual clarity for operators who rely on precise visual feedback.


Anti-Fingerprint (AF) Treatment

AF nanocoatings reduce smudges and oils, maintaining optical cleanliness and extending intervals between maintenance cycles.


Mechanical Durability and Reliability

Industrial environments often expose displays to physical shocks, scratches, and long-term usage cycles. With IK6–IK10 impact resistance and chemical tempering, custom cover glass ensures superior durability. Moreover, UV-resistant coatings protect against outdoor degradation, ensuring the surface does not discolor or peel even under prolonged exposure.



Bonding with OCA Technology

Optical Clear Adhesive (OCA) lamination enhances display performance by:

Eliminating air gaps between glass and panel.

Increasing light transmittance and contrast.

Reducing internal reflections for sharper images.

Improving resistance to dust and moisture penetration.

This process ensures stable optical performance throughout the device’s lifespan.



Application in Industrial Control Devices

From heavy-duty automation consoles to precision monitoring systems, custom cover glass with AG/AR/AF coatings and OCA processing plays a pivotal role in achieving high display visibility, robust reliability, and operator comfort. Its ability to combine optical excellence with mechanical toughness ensures that control devices maintain both performance and endurance in industrial operations.
