Unveiling the Magic Behind LCDs: Exploring Liquid Crystal Displays, Modules, and Their Inner Workings

Liquid Crystal Displays (LCDs) are ubiquitous in modern technology, from smartphones and televisions to computer monitors and instrument panels. But how do these displays work, and what components make them so versatile? This article dives deep into the world of LCD technology, exploring the properties of liquid crystals, the role of backlights, and the construction of LCD modules. Understanding these fundamental aspects will provide a comprehensive understanding of how LCDs create the images we see every day on a display screen.

1. LCD Basics: What is an LCD and How Does it Differ From Other Display Technologies?

An lcd, or liquid crystal display, is a type of display screen technology that uses the properties of liquid crystals to modulate light and create images. Unlike display device technologies like cathode ray tube (CRT) or light emitting diode (LED) displays, LCDs do not emit light directly. Instead, they rely on a backlight or ambient light to illuminate the liquid crystal layer, which then controls the passage of light to form the visible image. LCD is one of the most common display technologies in the world.

LCDs are known for their thin profile, low power consumption, and relatively low cost, making them a popular choice for a wide range of applications. The LCD works by using liquid crystals to manipulate light. While CRTs were bulky and power-hungry, LCDs offered a much more compact and energy-efficient alternative. This is especially important for small displays.

2. Liquid Crystals: What Are Liquid Crystals and What Unique Properties Make Them Suitable for Displays?

Liquid crystals are a state of matter that exhibits properties between those of a conventional liquid and a solid crystal. Liquid crystals can flow like a liquid, but their molecules also tend to align in a specific orientation, similar to a crystal. This alignment can be controlled by an electric field, which is the key to how LCDs work. The most common type of liquid crystals used in LCDs are nematic liquid crystals. These molecules tend to align in a long-range order, but they are not arranged in layers like smectic liquid crystals. This allows them to respond quickly to changes in the electric field, making them suitable for displaying dynamic images. The crystal box is the core component of a liquid crystal display device.

3. Backlight's Role: Why is a Backlight Necessary for LCDs and What Types of Backlights Are Commonly Used?

Since LCDs do not emit light directly, a backlight is essential to illuminate the liquid crystal layer and make the image visible. The backlight shines light through the LCD panel, and the liquid crystals control how much of that light passes through to each pixel. Without a backlight, the LCD screen would appear dark. The lcd backlight is usually located at the edge of the display.

Several types of backlights have been used in LCDs over the years. Early LCDs used cold cathode fluorescent (CCFL) backlights, which were relatively efficient but contained mercury. Modern LCDs typically use light emitting diode (LED) backlights, which are more energy-efficient, mercury-free, and can be dimmed more precisely. The location of the light source affects the viewing angle.

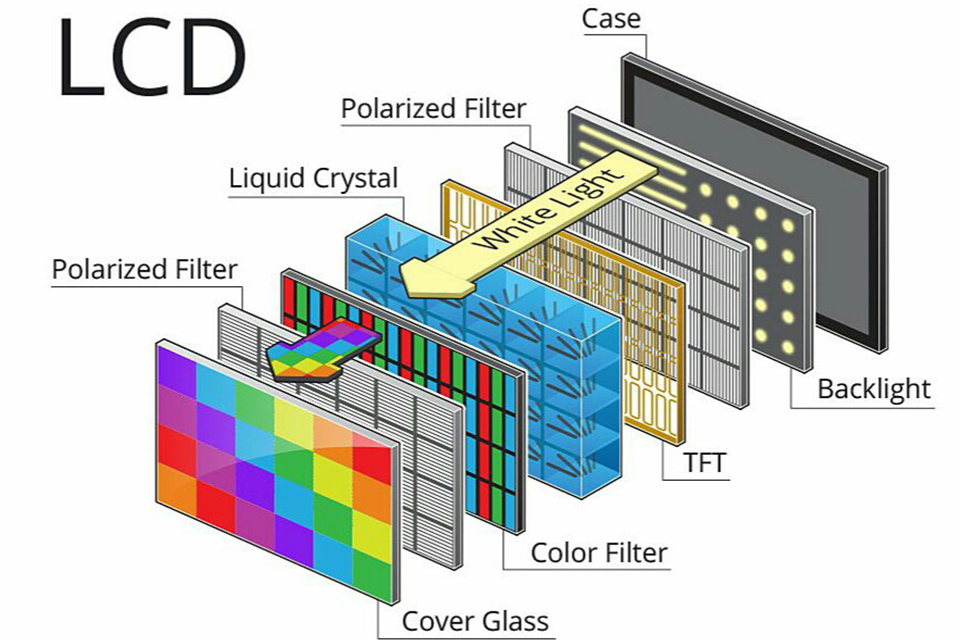

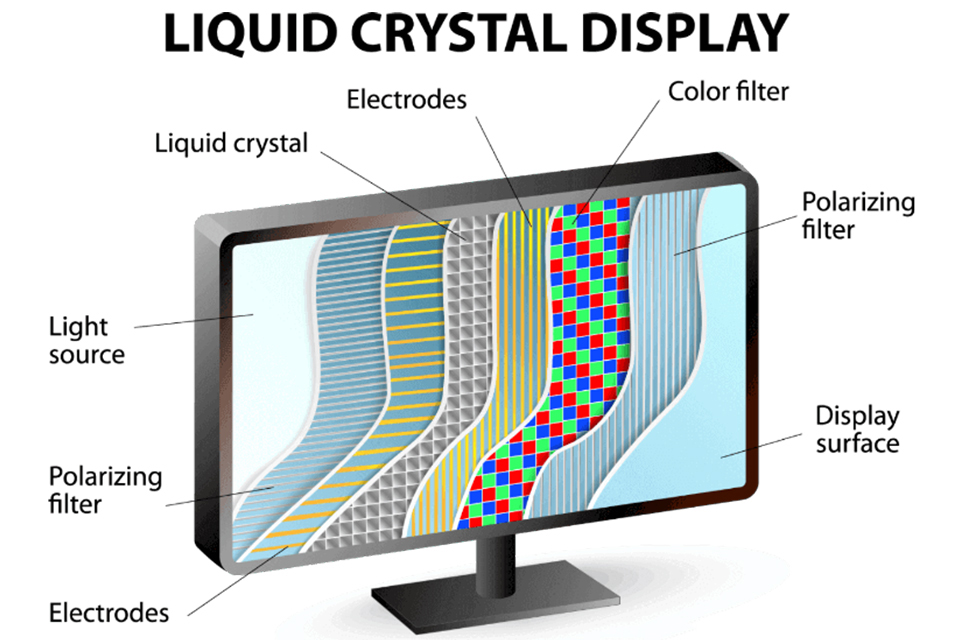

4. LCD Screen Construction: What Are the Layers That Make Up an LCD Screen and How Do They Interact?

An lcd screen is composed of several layers that work together to create the visible image. These layers typically include:

1. Backlight: Provides the light source for the display.
2. Polarizing Filter: Polarizes the light from the backlight, ensuring that it vibrates in a specific direction.
3. Glass Substrate with Transparent Electrodes: Contains transparent electrodes made of indium tin oxide (ITO) that apply an electric field to the liquid crystal layer.
4. Liquid Crystal Layer: Contains the liquid crystal molecules that align in response to the electric field.
5. Color Filter: Consists of red, green, and blue filters that create color pixels.
6. Polarizing Filter: Polarizes the light again, but at a different angle than the first filter. This filter blocks light that is not aligned with its polarization axis.
7. Protective Layer: Protects the LCD screen from damage.

The alignment of the liquid crystal molecules between the transparent electrodes determines how much light passes through each pixel. The box is the core component of an lcd panel. Alignment of the liquid crystal occurs when under an electric field.

5. LCDs and Pixels: How Do Pixels Work in an LCD and How Are They Controlled to Create Images?

Pixels are the tiny building blocks that make up an image on an lcd display. Each pixel consists of three subpixels: red, green, and blue. By controlling the amount of light that passes through each subpixel, the LCD can create a wide range of colors.

The amount of light that passes through each subpixel is controlled by the liquid crystal molecules in that area. When an electric field is applied to the liquid crystal layer, the molecules twist, changing the polarization of the light that passes through them. The second polarizing filter then blocks some or all of this light, depending on the amount of twist. This allows the LCD to control the brightness of each subpixel, and therefore the color of each pixel. By controlling each pixel, the display becomes a cohesive picture.

6. Contrast Ratio and Viewing Angle: What Factors Affect the Contrast Ratio and Viewing Angle of an LCD?

Contrast ratio and viewing angle are two important display parameters that affect the perceived image quality of an LCD.

• Contrast Ratio: The contrast ratio is the ratio of the brightest white to the darkest black that the LCD can produce. A higher contrast ratio means that the image will have more depth and detail. The contrast ratio of an LCD is affected by several factors, including the type of backlight, the quality of the polarizers, and the alignment of the liquid crystal molecules.
• Viewing Angle: The viewing angle is the range of angles at which the image on the LCD can be viewed without significant degradation. A wider viewing angle means that the image will look the same from more different positions. The viewing angle of an LCD is affected by the type of liquid crystal material used and the design of the lcd module. LCD monitors sometimes boast viewing angles of 178 degrees.

7. LCD Monitor Features: What are the Key Specifications and Features to Consider When Choosing an LCD Monitor?

When choosing an lcd monitor, several key specifications and features should be considered:

• Resolution: The resolution is the number of pixels that the monitor can display. A higher resolution means that the image will be sharper and more detailed. Common resolutions include 1920x1080 (Full HD), 2560x1440 (QHD), and 3840x2160 (4K UHD).
• Screen Size: The screen size is the diagonal measurement of the display area. Larger screen sizes provide a more immersive viewing experience.
• Contrast Ratio: As mentioned earlier, a higher contrast ratio means that the image will have more depth and detail.
• Viewing Angle: A wider viewing angle ensures that the image looks the same from different positions.
• Refresh Rate: The refresh rate is the number of times per second that the monitor updates the image. A higher refresh rate results in smoother motion.
• Response Time: The response time is the amount of time it takes for a pixel to change from one color to another. A faster response time reduces motion blur.
• Connectivity: Ensure that the monitor has the necessary ports, such as HDMI, DisplayPort, and USB.
• Ergonomics: Look for a monitor with adjustable height, tilt, and swivel for comfortable viewing.

8. Display Technologies Compared: How Do LCDs Stack Up Against Other Display Technologies Like OLED and Plasma?

LCDs are just one type of display technology available today. Other common display technologies include OLED (Organic Light Emitting Diode) and plasma displays. Here's a brief comparison:

OLEDs offer superior contrast and viewing angles compared to LCDs, but they can be more expensive. Plasma displays, while offering good black levels and viewing angles, are no longer in production due to their high power consumption and thickness.

9. Refresh Rate and Response Time: Why Are Refresh Rate and Response Time Important for LCD Performance?

Refresh rate and response time are crucial factors that affect the perceived smoothness and clarity of motion on an LCD.

• Refresh Rate: The refresh rate, measured in Hertz (Hz), is the number of times per second that the LCD updates the image. A higher refresh rate reduces motion blur and makes the image appear smoother, especially during fast-paced action. Common refresh rates include 60Hz, 120Hz, 144Hz, and 240Hz.
• Response Time: The response time, measured in milliseconds (ms), is the amount of time it takes for a pixel to change from one color to another. A faster response time reduces motion blur and ghosting, resulting in a sharper and more detailed image.

For gaming and other fast-paced applications, a higher refresh rate and faster response time are highly desirable. However, for general use, a lower refresh rate and slower response time may be sufficient.

10. Light Source in LCDs: What Are the Different light source Options in LCDs?

The type of light source used in an lcd backlight can affect several aspects of the display, including brightness, color accuracy, power consumption, and lifespan. Here are the different light sources available:

• Cold Cathode Fluorescent Lamps (CCFL): CCFLs were the dominant backlight technology in early LCDs. They offered relatively good efficiency but contained mercury and had limited dimming capabilities.
• Light Emitting Diodes (LED): LEDs are the most common backlight technology in modern LCDs. They are more energy-efficient, mercury-free, and can be dimmed more precisely than CCFLs. There are several types of LED backlights, including edge-lit LEDs, direct-lit LEDs, and full-array local dimming (FALD) LEDs.
• Quantum Dots (QLED): Quantum dots are semiconductor nanocrystals that emit light of a specific color when illuminated. QLED backlights offer wider color gamuts and higher brightness levels compared to traditional LED backlights.

LEDs are used in liquid crystal display to create images by shining light. LED is the superior option in terms of picture quality.

11. LCD Module Explained: What is an LCD Module, and What Components Does it Include?

An lcd module is a self-contained unit that includes all the necessary components to display images. In addition to the LCD panel itself, an LCD module typically includes:

• Backlight: Provides the light source for the display.
• LCD Controller: Controls the voltage applied to each pixel.
• Interface Connectors: Connect the module to the host device.

The controller allows you to interface with the lcd and produce the desired picture. Display becomes very easy with modules, as it does not require as much technical knowledge to operate. An LCD module can also be called a liquid crystal box.

12. LCD Projector: How Do LCDs Used in Projectors Work?

lcd projector use three separate LCD panels to create the image. Each LCD panel is responsible for modulating one of the three primary colors: red, green, and blue. Light from a powerful lamp is split into these three colors, and each color passes through its respective LCD panel. The LCD panels control the amount of light that passes through each pixel, creating the image. The three color images are then combined and projected onto a screen. The LCD projector uses different techniques than an lcd television.

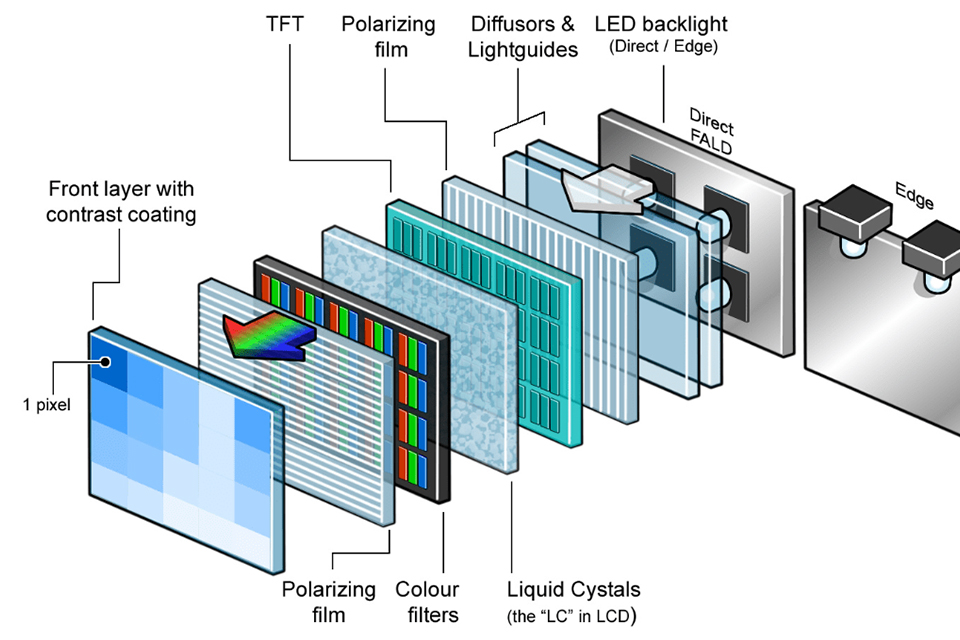

13. LCD Backlight Technology: What are Different Types of LCD Backlight Technologies

• Edge-Lit LEDs: LEDs are placed along the edges of the display, and a light guide panel distributes the light evenly across the screen. This design allows for very thin LCDs but can suffer from uneven brightness.
• Direct-Lit LEDs: LEDs are placed directly behind the LCD panel, providing more even illumination. However, this design typically results in thicker displays.
• Full-Array Local Dimming (FALD) LEDs: LEDs are arranged in an array behind the LCD panel, and individual zones of LEDs can be dimmed or turned off to improve contrast and black levels. FALD is the most advanced LED backlight technology and offers the best image quality.
• White LED: Uses a blue LED with a yellow phosphor to produce white light.
• RGB LED: Uses red, green, and blue LEDs to create a wider color gamut.

14. LCDs Display Evolution: What are the Trends and Future Directions in LCD Technology?

LCD technology continues to evolve, with ongoing research and development focused on improving image quality, reducing power consumption, and lowering costs. Some of the key trends and future directions in LCD technology include:

• Mini-LED Backlights: Mini-LED backlights use thousands of tiny LEDs to provide more precise control over local dimming, resulting in higher contrast ratios and better black levels.
• Quantum Dot Enhancement: Quantum dots are being used to enhance the color gamut and brightness of LCDs.
• Improved Viewing Angles: New liquid crystal materials and display designs are being developed to improve viewing angles.
• Flexible LCDs: Research is underway to develop flexible LCDs that can be used in foldable devices and other applications.

15. Difference Between LCD Types: What are the main differences between different LCD types?

There are several different types of lcds, each with its own advantages and disadvantages. The most common types include:

• Twisted Nematic (TN): TN LCDs are the most common and least expensive type of LCD. They offer fast response times but have limited viewing angles and color accuracy.

• In-Plane Switching (IPS): IPS LCDs offer wider viewing angles and better color accuracy than TN LCDs but have slower response times.

• Vertical Alignment (VA): VA LCDs offer high contrast ratios and good viewing angles but can suffer from motion blur.
• Super Twisted Nematic (STN): STN LCDs are commonly used in low-power applications such as calculators and watches. They have low power consumption but limited color and contrast.
• Thin Film Transistor (TFT): TFT LCD refers to the technology used to control individual pixels. It is an active-matrix display, generally providing sharper images and faster response times compared to passive-matrix displays such as STN.

10 Key Things to Remember About LCD Technology:

• LCDs use liquid crystals to modulate light: They do not emit light directly, relying on a backlight.
• A backlight is essential: LCDs require a backlight to illuminate the display.
• Pixels are the building blocks: Each pixel consists of red, green, and blue subpixels.
• Electric fields control the liquid crystals: Applying an electric field changes the alignment of the liquid crystal molecules.
• Contrast ratio and viewing angle are important: These parameters affect the perceived image quality.
• LED backlights are the most common: They are energy-efficient and mercury-free.
• LCDs are thin and low-power: Making them suitable for a wide range of applications.
• LCD modules are self-contained units: They include all the necessary components to display images.
• Mini-LED and quantum dots are improving image quality: These technologies are enhancing contrast ratios and color gamuts.
• Different types of LCDs exist: Each with its own advantages and disadvantages.
