TFT LCDs are the backbone of modern display technology, found in everything from smartphones to large screen TVs. This article explores the working principles of TFT LCDs, delving into how thin-film transistors control individual pixels to create vibrant images. We'll examine how color reproduction is achieved, the advantages of active matrix technology, and the future of TFT LCDs in the ever-evolving display industry. Discover the magic behind TFT technology and how it delivers clear, sharp images on your favorite display screen.
Why read this article?
If you've ever wondered how your phone's screen displays such vivid colors or how your TV can switch between scenes so quickly, this article is for you. We break down the complex technology of TFT LCDs into easy-to-understand terms, explaining the role of the transistor, liquid crystal, and backlight. Whether you're a tech enthusiast or simply curious about how display technologies work, this article will provide you with a comprehensive overview of TFT LCDs.
A TFT LCD, or Thin-Film-Transistor Liquid-Crystal Display, is a type of liquid crystal display that uses thin-film transistors to control each pixel in the display. TFT LCDs are commonly found in a wide range of display devices, including smartphones, tablets, laptops, computer monitors, and televisions. The TFT technology enables active matrix addressing, which allows for precise control over each pixel and results in high-quality images with vibrant color reproduction. Compared to earlier passive matrix displays, TFT LCDs offer significantly improved performance in terms of brightness, contrast, and response times.
The introduction to tft displays marked a significant advancement in display technologies. Prior to TFT LCDs, passive matrix displays suffered from limitations in terms of brightness, response times, and viewing angle. TFT technology provides a solution to these problems by using an individual transistor to control each pixel on the display screen. This allows for faster response times, improved brightness levels, and wider viewing angles. The result is a superior image quality that has made TFT LCDs the dominant display technology in many display market segments.

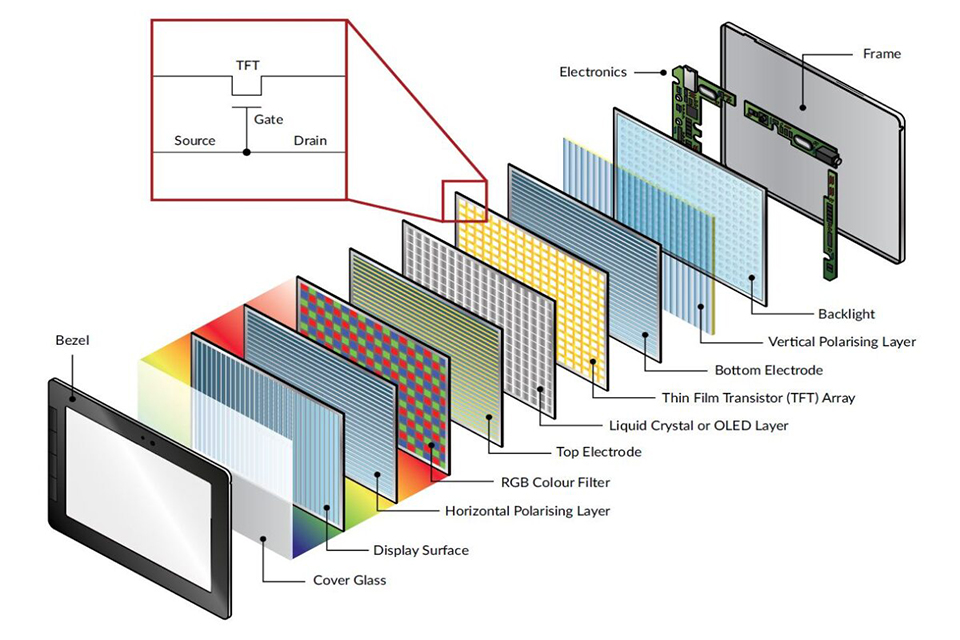

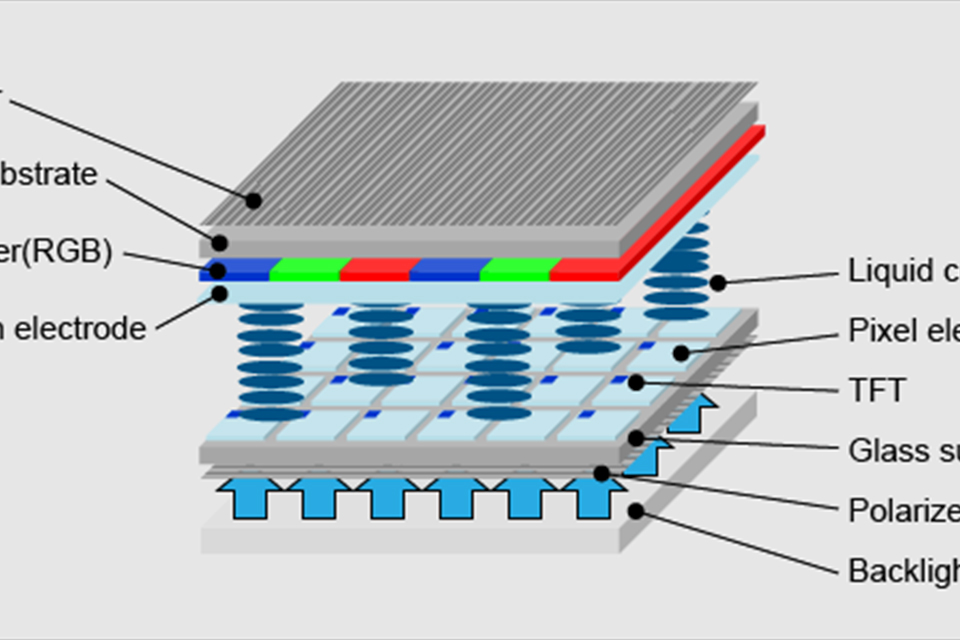

The working principles of a TFT LCD involve several key components working together to create an image. At its core, a TFT LCD consists of a display panel sandwiched between two glass substrates. Between these substrates is the liquid crystal material, which is responsible for controlling the light transmission through each pixel. Each pixel is controlled by a thin-film transistor (tft), which acts as a switch to turn the pixel on or off, and controlling the amount of light that passes through.

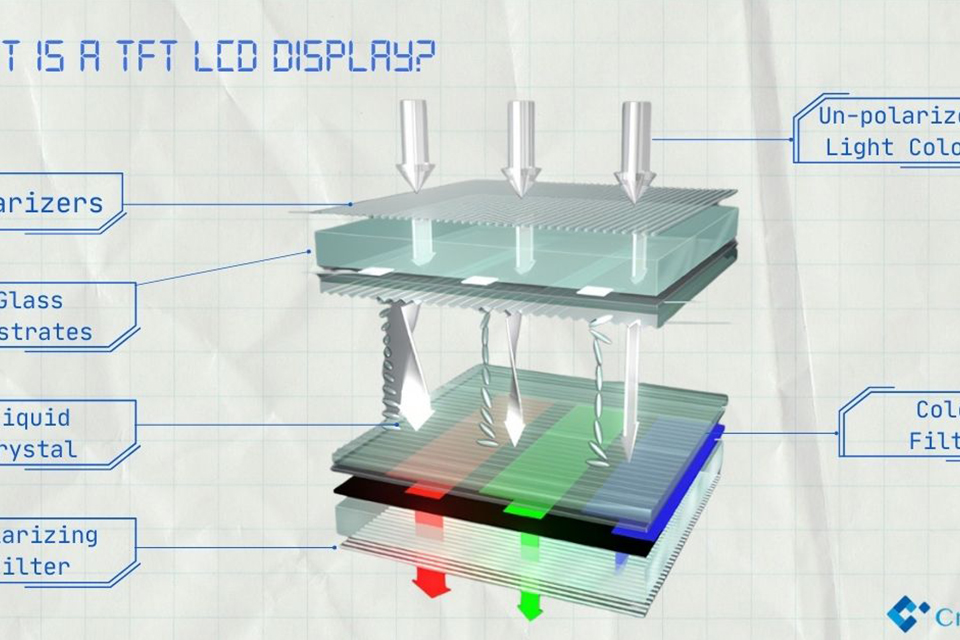

When a voltage is applied to each pixel through the tft, the liquid crystal molecules twist or untwist, altering the light transmission characteristics of that pixel. A backlight, typically located behind the display panel, provides the light source that illuminates the display. By controlling the amount of light passing through each pixel, the tft lcd can create a wide range of shades and colors. The working principles of tft lcds involve a complex interplay of electrical signals, liquid crystal behavior, and light transmission to produce the images we see on our screens.
Each pixel on the tft lcd screen is composed of three sub-pixels: red, green, and blue. These three sub-pixels work together to create the full spectrum of colors that we see on the display screen. By varying the brightness of each sub-pixel, the tft lcd can generate a wide range of colors through additive mixing. For example, if all three sub-pixels are fully on, the pixel appears white. If all three are off, the pixel appears black. And if only the red and green sub-pixels are on, the pixel appears yellow.
This principles of color reproduction in tft lcds is fundamental to how these displays have become so versatile and capable of producing vibrant color reproduction. The fineness of the color transitions and the overall color accuracy depend on the precision with which the tft lcd can control the brightness levels of each sub-pixel. Modern TFT LCDs employ sophisticated algorithms and calibration techniques to ensure accurate color reproduction.
The key difference between active matrix and passive matrix lcd technology lies in how individual pixels are addressed and controlled. In passive matrix displays, rows and columns of electrodes are used to address the pixels. When a voltage is applied to a specific row and column, the pixel at that intersection is activated. However, this approach has limitations in terms of brightness, response times, and viewing angle.
Active matrix, on the other hand, uses a thin-film transistor (tft) at each pixel location. This individual transistor acts as a switch to control the voltage applied to each pixel, allowing for much more precise control. The tft technology provides faster response times, improved brightness, and wider viewing angles compared to passive matrix displays. Active matrix tft technology is now the dominant approach for high-quality lcd displays.
Here's a table summarizing the key differences between Active Matrix and Passive Matrix LCDs:
| Feature | Active Matrix (TFT) | Passive Matrix |
|---|---|---|
| Addressing Method | Individual transistor at each pixel | Rows and columns of electrodes |
| Response Times | Faster response times | Slower response times |
| Brightness | Higher brightness | Lower brightness |
| Viewing Angle | Wider viewing angles | Narrower viewing angles |
| Image Quality | Higher image quality | Lower image quality |
| Complexity | More complex tft technology | Simpler technology |
| Cost | Generally more expensive | Generally less expensive |
The transistor, specifically the thin-film transistor (tft), is the heart of a tft lcd. Each pixel on the display has its own dedicated transistor that controls the voltage applied to the liquid crystal material. This individual transistor acts as a switch, turning the pixel on or off, and controlling the amount of light that passes through. Without the transistor, it would be impossible to achieve the precise control over each pixel that is necessary for high-quality image quality.
The tft transistors are typically made of amorphous silicon and are deposited onto the glass substrate using a thin-film deposition process. This thin-film transistor then allows the tft lcd to have faster refresh rates, and more brightness and color. The performance of the transistor directly impacts the response times, brightness, and viewing angle of the display.
The backlight is an essential component of a tft lcd, providing the light source that illuminates the display panel. Since liquid crystal materials do not emit their own light, a backlight is necessary to make the image visible. The backlight is typically located behind the display panel and shines light through the liquid crystal layer. The brightness of the backlight directly affects the overall brightness levels of the display.
Several different types of backlight technologies are used in TFT LCDs, including cold cathode fluorescent lamps (CCFLs) and light-emitting diodes (LEDs). LED backlights have become increasingly popular due to their energy efficiency, long lifespan, and ability to produce a wider range of colors. The brightness and uniformity of the backlight are critical factors in determining the overall image quality of the tft lcd screen.
Color reproduction in tft lcds relies on the use of sub-pixels and a color filter. As mentioned earlier, each pixel is composed of three sub-pixels: red, green, and blue. These sub-pixels are arranged in a specific pattern, and each one is covered by a color filter that allows only that color of light to pass through. By varying the brightness of each sub-pixel, the tft lcd can create a wide range of colors through additive mixing. This principles of color reproduction in tft lcds has greatly improved and expanded to devices ranging from smartphones.
The color accuracy of a tft lcd depends on the accurate color reproduction of the sub-pixels and the ability of the display to precise control the brightness of each sub-pixel. Some TFT panels also include more advanced light filtration to increase the color accuracy of the tft display.
Several key performance characteristics are used to evaluate the quality and performance of tft lcds. Response times refer to the amount of time it takes for a pixel to switch from one color to another. Faster response times are important for reducing motion blur and creating a smoother visual experience, especially in fast-paced video games and action movies. Viewing angle refers to the range of angles from which the display can be viewed without significant degradation in image quality. Wider viewing angles are desirable for shared viewing experiences.
Brightness, as mentioned earlier, is the overall intensity of the light emitted by the display. Higher brightness is important for viewing the display in brightly lit environments. Other important performance characteristics include contrast ratio, which is the difference between the brightest and darkest parts of the display, and color accuracy, which refers to the ability of the display to reproduce colors accurately.
TFT LCDs offer several advantages over other display technologies, including their high image quality, fast response times, and wide viewing angles. They are also relatively energy efficiency and can be manufactured in a wide range of sizes. However, TFT LCDs also have some disadvantages. One disadvantage is their limited contrast ratio compared to oled displays. TFT LCDs also require a backlight, which can add to their thickness and weight.
Another disadvantage is that TFT LCDs can suffer from light leakage, which can result in black levels that are not truly black. Despite these disadvantages, TFT LCDs remain the dominant display technology in many applications due to their overall performance and cost-effectiveness.
TFT LCDs are used in a vast array of display devices, ranging from smartphones and tablets to laptops, computer monitors, and televisions. They are also used in a variety of industrial and consumer electronics and display technologies, medical equipment, and automotive displays. The display industry continues to innovate, new forms of tft lcds are developed.
The future of tft technology is likely to involve further improvements in image quality, response times, energy efficiency, and form factor. Researchers are also exploring new materials and manufacturing processes to create more advanced TFT LCDs. While oled technology is gaining ground in some applications, tft lcds are likely to remain a dominant force in the display market for the foreseeable future.
Here is summary of the history of TFT LCD Development
| Date | Event |
|---|---|
| Early 1970s | Development of dynamic scattering mode of lcds. A hybrid circuit using the dynamic scattering mode was developed by Brody and Fang-Chen Luo. |
| 1972 | The term "thin-film transistor" was used at Westinghouse by D. Peter. |
| 1973 | T. Peter Brody develops the first flat active-matrix liquid-crystal display, at Westinghouse Electric Corporation in Pittsburgh. The device used cadmium selenide TFTs. Westinghouse stops the research. |
| 1980s - 1990s | Amorphous silicon replaced CdSe in TFT LCDs. |
| Present | TFT LCDs are used in many devices like phones, televisions, computers and other displays due to their superior image brightness and color |
