Capacitive vs. Resistive Touchscreen Technology: How Do Touch Screens Actually Work?

This article demystifies touch screen display technology, focusing on the two primary types: capacitive and resistive touchscreen. We'll explore how each technology works, their respective strengths and weaknesses, and what makes them suitable for different applications. Whether you're curious about the technology behind your smartphones or simply want to understand how an interactive display detects touch, this article provides a comprehensive overview.

Why this article is worth reading:

• Gain a Clear Understanding: Learn the fundamental differences between capacitive and resistive touchscreen screens work.
• Make Informed Decisions: Understand the advantages and disadvantages of each type of touchscreen for various applications.
• Appreciate the Technology: Develop a deeper understanding of the ingenious technology that powers the touch input we use every day.
• Beyond the Surface: Explores the principles of capacitive sensing and resistive touch technologies.

1. What is a Touchscreen and What are the Core Touchscreen Technologies?

A touchscreen is an interactive display display that allows users to interact with a computer or device by touching the screen. This eliminates the need for traditional input devices such as a mouse or keyboard, providing a more intuitive and direct way to control the system. Touch screens are often used in a wide range of applications, including smartphones, tablets, computers, kiosks, and industrial control systems.

While several different touch screen technologies exist, the two most prevalent are resistive and capacitive touchscreen. Capacitive and resistive screen types represent the dominant approaches, touch technology has become ubiquitous in our modern world. Other, less common touch screen technologies include infrared touch and surface acoustic wave. The choice between capacitive and resistive capacitive and resistive technology depends on the specific requirements of the application, such as cost, durability, touch sensitivity, and the need for multi-touch support.

2. How Do Resistive Touchscreens Work?

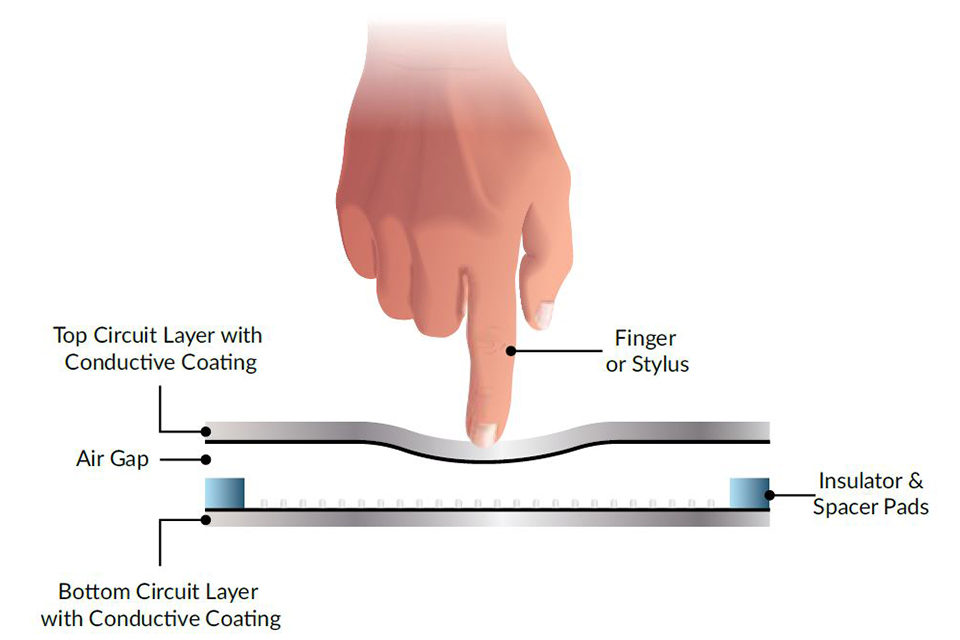

Resistive touchscreens rely on pressure to register a touch. The screen consists of two layers of electrically conductive material, typically coated with indium tin oxide, separated by a thin gap. When the user touch the screen, the top layer flexes and makes contact with the bottom layer at the point of contact. This contact creates an electrical connection, and the touchscreen panel measures the voltage at that location of the touch.

The resistive touchscreen panel determines the coordinates of the touch input based on the voltage readings. Since voltage varies consistently across the screen, the panel can pinpoint one touch location of the touch relatively easily. Resistive screens don’t work if the two layers are already touching, so resistive touchscreens rely on pressure, and that pressure makes the two layers connect.

3. What are the Advantages and Disadvantages of Resistive Touchscreens?

Resistive touchscreen displays offer several advantages and disadvantages compared to other touch technology. One key advantage is their low cost, making them a budget-friendly type of touchscreen. They can be activated with any object that applies sufficient pressure, including a stylus, a gloved finger, or even a pen.

However, resistive touchscreens also have some drawbacks. They generally have lower image clarity and brightness due to the multiple layers of material. The top layer is susceptible to scratches and damage, reducing durability. They also typically only support one touch touch inputs simultaneously, meaning multi-touch gestures are not possible. In other words, the advantages and limitations are low-cost and pressure activated; however, it is susceptible to damage and does not allow multiple touch.

4. How Do Capacitive Touchscreens Work?

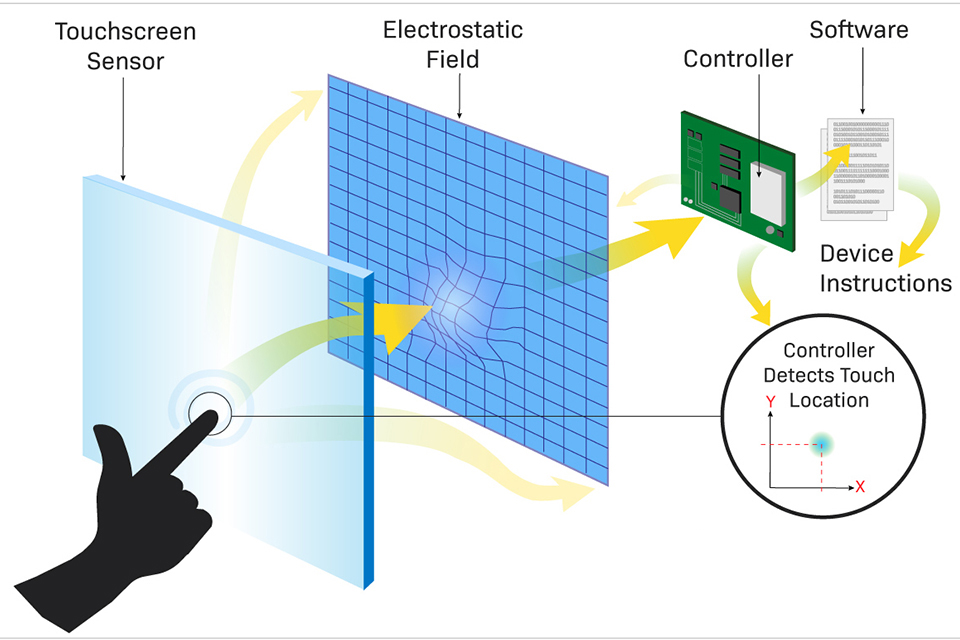

Capacitive touchscreens utilize the electrical charge of the human finger to detect touch*. These screens typically have a glass surface coated with a transparent conductive layer, such as indium tin oxide. This conductive layer creates an electrostatic field on the screen's surface*.

When a finger on the screen, it disrupts the electrostatic field at that point of contact. Some of the electrical charge transfers from the touchscreen to the user, creating a change in capacitance. Sensor located in the four corners or along the edge of the touchscreen measure this change in capacitance, which is then used to determine the location of the touch.

5. What are the Different Types of Capacitive Touch Screens?

There are several types of capacitive touch screens, with projected capacitive being the most common.

• Surface Capacitive: This older capacitive technology has a thin, transparent coating on the surface. When touch the screen, a sensor measures the change in capacitance to detect touch. While simple, they often suffer from durability issues and can't support multi-touch.

• Projected Capacitive (PCAP): PCAP capacitive technologies are more advanced. They have a grid of conductive material embedded within the glass. Touching the screen creates a change in capacitance at the intersection of the grid closest to the finger on the screen, which is then measured by a touch sensor. PCAP offers better accuracy, durability, and multi-touch capabilities, making it the predominant capacitive technology in smartphones and tablets.

6. What are the Advantages and Disadvantages of Capacitive Touchscreens?

Capacitive touchscreens offer advantages and disadvantages that make them suitable for some applications more than others. Key advantages include high image clarity, excellent touch sensitivity, and multi-touch capabilities. They are also more durable and resistant to scratches than resistive touch screens. Capacitive screens screens can detect a light touch, requiring minimal pressure.

However, capacitive touchscreens also have some limitations. They typically don’t work with gloved fingers or stylus that don’t work are not specially designed to mimic the electrical charge of a finger on the screen. They are also more expensive to manufacture than resistive touch screens. Although capacitive, touch screens offer more accuracy and multi touch functions, it also comes with a high-price tag.

7. Capacitive vs. Resistive Touchscreen: What are the Key Differences?

The capacitive vs resistive debate centers on several key differences in how the technology works, performance, and applications. Resistive touchscreens rely on pressure to physically connect two layers of material, while capacitive touchscreens use capacitive touch sensing to detect touch using the electrical charge of a finger on the screen.

This fundamental difference leads to several downstream effects. Capacitive offers higher image clarity, better touch sensitivity, and multi-touch support. Unlike resistive, Capacitive touch panels are also more durable. However, resistive are less expensive and can be activated with any object, even a gloved finger. The resistive vs capacitive touchscreen for any given application is determined by the importance of these features for that application.

8. Can Capacitive Touchscreens Work With a Stylus?

While capacitive touchscreens are designed to use capacitive detect touch using the electrical charge of a finger on the screen, they can also work with a stylus. However, not just any stylus will do. A standard plastic or metal stylus don’t work because it doesn't mimic the electrical charge of a human finger on the screen.

To work with a stylus, a capacitive touchscreen requires a specialized stylus designed to simulate touch input. These stylus typically have a conductive tip that mimics the electrical properties of a finger, allowing the screen to detect the touch input. Many devices with capacitive touchscreens are sold with a stylus for writing and drawing.

9. What Applications are Best Suited for Resistive Touchscreens?

Resistive touchscreens are not the optimal choice for smartphones and tablets, but they are still used where the lower cost is a more important consideration than other benefits screens can detect.

• Industrial Control Systems: Resistive touchscreens rely on pressure activation, making them well-suited for use in manufacturing environments, where workers often wear gloves. Because Resistive work with a stylus, the gloved hand provides accurate touch inputs.
• Point-of-Sale (POS) Systems: Many older POS systems use resistive touchscreens due to their low cost and the fact that they can be operated with a stylus or other object.
• Medical Equipment: Some medical equipment uses resistive screens because they are compatible with gloved hands and can be easily cleaned and disinfected.
• Embedded Systems: Touchscreens can be used in many types of embedded systems where cost is the primary concern.

10. What is the Future of Touchscreen Technology?

The future of touch screen technologies points toward even more sophisticated and intuitive interactive display experiences. Touch technology continues to evolve, pushing the boundaries of what's possible with touch input.

Here are some key trends to watch:

• Advanced Capacitive Touch Sensing: Expect to see capacitive touch technology with even greater accuracy, touch sensitivity, and multi-touch capabilities.
• Flexible and Foldable Displays: Touchscreens will increasingly be integrated into flexible and foldable displays, opening up new possibilities for wearable devices and other innovative form factors.
• Haptic Feedback: Haptic technology will provide users with tactile feedback when they touch the screen, enhancing the interactive experience and making it more realistic.
• 3D Touch: 3D touch technology will allow screens can detect to respond to different levels of pressure, providing a new dimension of touch input.
• Integration with Artificial Intelligence: Artificial intelligence will be used to personalize the touch screen experience and provide users with more relevant and context-aware information.

Key Takeaways: 10 Things to Remember About Capacitive vs. Resistive Touchscreens

• Two primary touch technology: Capacitive and resistive are the most common.
• Resistive touchscreens rely on pressure: They have two layers that connect when pressed.
• Capacitive touchscreens use electrostatic field: They detect touch by sensing electrical charge.
• Resistive are cheaper and can be used with anything: But have lower image clarity and don't work support multi-touch.
• Capacitive offer better image quality and multi-touch: But are more expensive and require a bare finger or special stylus.
• Projected capacitive is the most common capacitive technology: Used in smartphones and tablets.
• Resistive are suitable for industrial and medical applications: Where gloves are common.
• Specialized stylus are needed for capacitive screens: To mimic the electrical charge of a finger.
• The choice between capacitive and resistive depends on the application: Consider cost, durability, and touch sensitivity.
• Future touch technology will be more sophisticated and intuitive: With haptic feedback, 3D touch, and artificial intelligence integration.
