Demystifying Touch: A Comprehensive Guide to Touchscreen Technology and Types of Touch

Touchscreen technology has revolutionized how we interact with our devices. From smartphones to tablets to interactive kiosks, touch screens have become ubiquitous. This article provides an in-depth exploration of touch screen technology, delving into the types of touch available, how each touchscreen works, and their respective advantages and disadvantages. Understanding these different technologies will help you appreciate the touch experience we often take for granted and make informed decisions when choosing devices with touch screens.


Article Content:

1. What is a Touch Screen and How Does it Work?

A touch screen is a display with an additional screen that allows a user to interact with a computer or device without the use of a keyboard or mouse. Instead, the user can use touch gestures directly on the screen to navigate, select, and input data. This interactive technology has made devices more intuitive and accessible, transforming how we interact with a computer. The touchscreen essentially combines the display output with a touch input mechanism.

The basic principle behind how a touchscreen works involves detecting the physical touch of a finger or other object on the touch surface. This touch input is then translated into a digital signal that the device can understand and respond to. There are several uniquely different types of touch screen technologies used to detect touch, each relying on different technologies and principles. These uniquely different types of touch include resistive touch, capacitive touch, infrared, and acoustic wave, among others.

Since touch became more prominent, it has redefined what is possible. The impact and importance of touch technologies cannot be overstated as they have truly reshaped modern interactions.

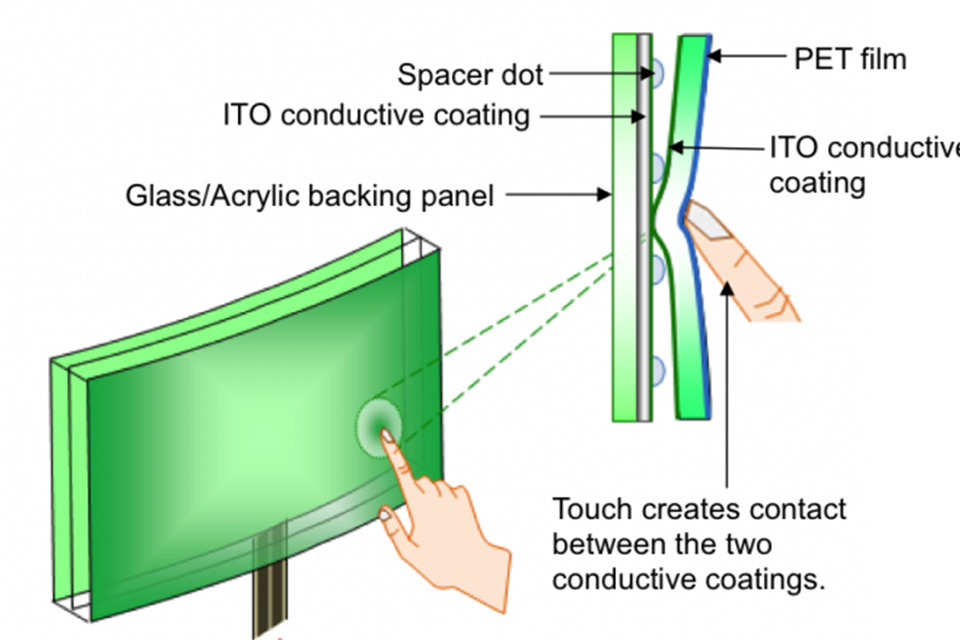

2. Resistive Touch Screens: The Reliable Workhorse

Resistive touch technology is one of the oldest and most common types of touch screen. A resistive touchscreen is typically comprised of two layers of glass or plastic coated with a transparent, electrically resistive layers, such as indium tin oxide, which are separated by a thin gap. When you touch the screen, the top layer flexes and makes contact with the screen below, creating an electrical connection. The location of the touch point is then determined by measuring the voltage change at the corners of the screen.

Resistive touch screens are known for their durability, affordability, and ability to be operated with a finger, stylus, or gloved hand. This makes them well-suited for applications where ruggedness and versatility are important. Resistive screens are common in devices used in industrial settings, point-of-sale systems, and older smartphones. Their primary advantages include low cost and accuracy, as any pressure will activate them. However, they typically offer lower image clarity and limited multi-touch technology support compared to other touch screen types.

Resistive touch technology is activated by the physical touch. Because of this, it is less sensitive to accidental touches, making it a dependable option. While resistive technology is still used in some applications today, it has been largely replaced by capacitive touch in modern touch devices.


3. Capacitive Touch Screens: The Modern Standard for Multi-Touch

Capacitive touch technology is the popular type of touch used in most smartphones, tablets, and other modern touch devices. A capacitive touch screen consists of a glass panel coated with a transparent, conductive material, such as indium tin oxide. This coating creates an electrostatic field on the touch surface.

When a finger (touch of human skin) come into contact with the touch screen, it draws some of the electrostatic charge to the touch point. This use touch causes a decrease in capacitance at that location, which is then used to detect the touch. The computer is able to detect and then locate the touch based on changes in the electrical field. Capacitive touch screens support multi-touch technology, allowing users to perform gestures like pinch-to-zoom and two-finger scrolling.

Capacitive touch screens offer excellent image clarity, high sensitivity, and support for multi-touch technology, making them ideal for interactive applications. However, they require direct touch of human skin or a conductive object, such as a special stylus, to function. Gloves or non-conductive objects will not work. This type of touch screen is well suited for mobile phone and other consumer electronic devices.

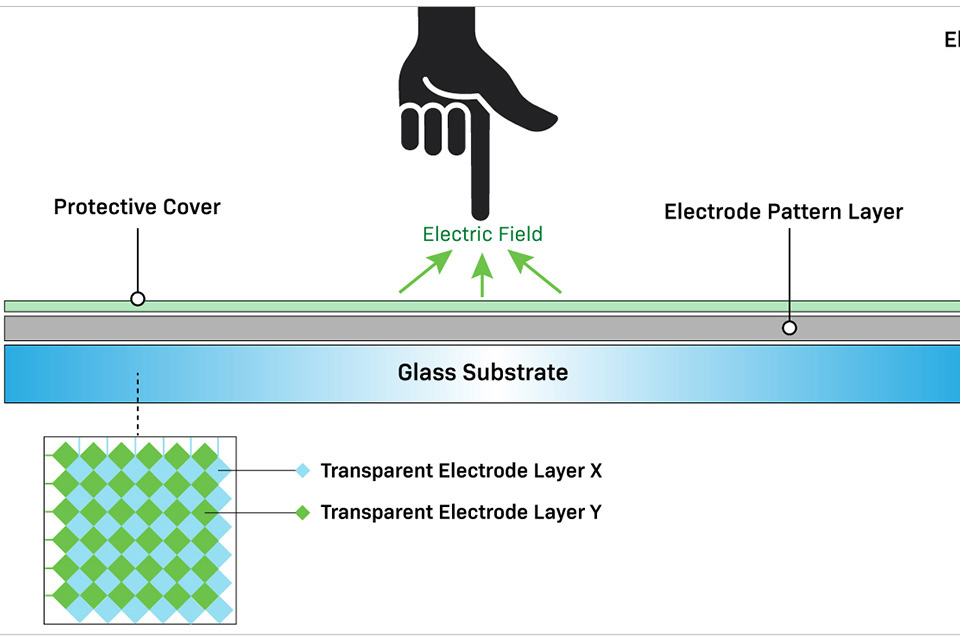

4. Projected Capacitive Touch (PCAP): The Leader in Mobile Devices

Projected capacitive touch (PCAP) technology is a more advanced form of capacitive touch that is widely used in smartphones, tablets, and other touch devices. Unlike surface capacitive screens, projected capacitive touch screens have a grid of conductive sensors embedded within the glass panel. This grid creates a three-dimensional electrostatic field that extends outward from the touch surface.

When a finger or conductive object approaches the touch screen, it disrupts the electrostatic field, and the sensor detects the change in capacitance at multiple points on the grid. This allows the touchscreen to accurately locate the touch and track multiple touch point simultaneously. Projected capacitive screens offer even greater accuracy, sensitivity, and multi-touch technology support than surface capacitive screens.

Advantages of projected capacitive touch screens are their high accuracy, excellent image clarity, support for complex gestures, and resistance to scratches and wear. They are also more tolerant of surface contaminants, such as dirt and oil. However, they are more expensive to manufacture than surface capacitive screens. Projected capacitive touch screens have essentially redefined the touch experience.


5. Surface Capacitive Touch: A Durable and Cost-Effective Solution

Surface capacitive touch screens are a capacitive touch screen that is coated with a transparent, conductive layer. Unlike projected capacitive touch screens, surface capacitive touch screens have only a single layer of conductive coating. When a finger (touch of a finger) come into contact with the touch screen, it draws some of the electrostatic charge to the touch point. This causes a decrease in capacitance at that location, which is then used to detect the touch.

Surface capacitive touch screens are known for their durability, scratch resistance, and cost-effectiveness. They offer good image clarity and sensitivity, but they typically do not support multi-touch technology. They are commonly used in applications such as point-of-sale systems, gaming machines, and industrial control panels.

A primary feature of surface capacitive touch screens is their ability to handle harsh environments. Because of their robust design and technology uses, surface capacitive screens are well-suited for use in areas where exposure to dust, dirt, or liquids is high. Their reliability and low cost make them a practical choice for many touch display applications.


6. Infrared Touch Screens: Touchless Interaction and Large Displays

Infrared touch screens use an array of infrared light beam emitters and sensor positioned around the perimeter of the touch screen panel. These light beam create a grid of infrared light beam just above the touch surface. When an object, such as a finger or stylus, come into contact with the touch screen, it blocks the infrared light beam at that location. The sensor then detect the touch based on which light beam are blocked.

Infrared touch screens offer several advantages, including touchless interaction, high durability, and scalability to large sizes. They can be operated with any object, including fingers, gloves, or stylus, and are not affected by surface contaminants. Infrared touch screens are commonly used in large touch display such as interactive whiteboards, public information kiosks, and outdoor displays.

However, infrared touch screens can be susceptible to ambient light interference, which can affect their accuracy and reliability. Additionally, they may not offer the same level of multi-touch technology support as capacitive touch screens. The infrared touchscreen uses are constantly expanding, but its use is generally confined to very specific situations.


7. Surface Acoustic Wave (SAW) Touch Screens: Clarity and Precision

Surface acoustic wave (SAW) touch screens use ultrasonic waves that are transmitted across the touch screen panel. When an object come into contact with the touch screen, it absorbs a portion of the wave. Sensor located around the perimeter of the touch screen detect changes in the ultrasonic waves to determine the location of the touch.

Surface acoustic wave screens are known for their excellent image clarity, high sensitivity, and ability to detect even light touch. They also offer good resistance to scratches and wear. However, they can be affected by surface contaminants, such as dirt and liquids, which can interfere with the ultrasonic waves.

Surface acoustic wave screens are used in applications such as ATMs, point-of-sale systems, and interactive kiosks where image quality and touch sensitivity are important. The acoustic wave setup provides a clear screen to the user, with a high level of touch accuracy.


8. Acoustic Pulse Recognition (APR): An Alternative Acoustic Technology

Acoustic Pulse Recognition (APR) is another acoustic wave-based touch screen technology. Instead of relying on surface acoustic wave traveling across the touch screen, APR uses sensor to detect touch generated by the physical touch of the touch screen. These sensor are placed around the perimeter of the touch screen and listen for the acoustic pulse created when an object touch the screen.

When the screen is touched, the sensor measure the sound waves generated and use triangulation to determine the exact location of the touch. APR touch screen offer several advantages, including high accuracy, good durability, and resistance to surface contaminants. They can also be operated with any object, including fingers, gloves, or stylus.

APR touch screen technology is used in applications such as point-of-sale systems, gaming machines, and industrial control panels where reliability and accuracy are important. These types of touch screen technology are an excellent option, especially when the touch screen is made for use in harsh conditions. The precise and dependable recognition technology of APR makes it suitable for high-demand environments.


9. Choosing the Right Type of Touch Screen: Factors to Consider

Selecting the appropriate type of touch screen for a particular application requires careful consideration of several factors, including:

  • Accuracy and Sensitivity: How accurately and sensitively does the touch screen need to detect touch input?
  • Durability and Ruggedness: Will the touch screen be exposed to harsh environmental conditions or frequent use?
  • Image Quality: How important is image clarity and brightness?
  • Multi-Touch Support: Is multi-touch technology required for the application?
  • Cost: What is the budget for the touch screen?
  • Application: What will the touchscreen be used for?

For example, if a rugged and durable touch screen is needed for an industrial application, resistive touch or infrared touch may be the best choice. If high image quality and multi-touch technology support are required for a smartphone or tablet, projected capacitive touch would be more suitable. The type of touch screen needed depends heavily on the intended use.

Considering these factors will help you choose the type of touch screen that best meets your needs and ensures a positive touch experience for users.


10. The Future of Touch Screen Technology: What's Next?

The field of touch screen technology is continually evolving, with new innovations emerging all the time. Some of the future trends in screen technology include:

  • Haptic Feedback: Integrating haptic feedback technology into touch screen to provide users with tactile sensations that mimic the feel of physical buttons or textures.
  • Flexible and Foldable Displays: Developing flexible and foldable touch screen that can be integrated into curved surfaces or folded for portability.
  • 3D Touch: Enabling touch screen to detect the amount of pressure applied by the user, allowing for more nuanced interactions.
  • Advanced Multi-Touch Gestures: Developing more advanced multi-touch gestures that allow users to interact with devices in new and intuitive ways.
  • Integration with AI and Machine Learning: Integrating touch screen with AI and machine learning to personalize the user experience and provide intelligent assistance.

These innovations will further enhance the touch experience and open up new possibilities for how we interact with technology. The technology began with a basic sensor and it has advanced to be incredibly complex.


Key Takeaways:

Here are 10 important things to remember about touch screen technology:

  • A touch screen allows users to interact with a computer or device without the use of a keyboard or mouse.
  • Resistive touch screens are durable, affordable, and can be operated with a finger, stylus, or gloved hand.
  • Capacitive touch screens offer excellent image clarity, high sensitivity, and support for multi-touch technology.
  • Projected capacitive touch (PCAP) is widely used in smartphones and tablets and offers even greater accuracy and sensitivity.
  • Surface capacitive touch screens are durable, scratch-resistant, and cost-effective.
  • Infrared touch screens offer touchless interaction, high durability, and scalability to large sizes.
  • Surface acoustic wave (SAW) screens are known for their excellent image clarity and high sensitivity.
  • APR uses sensor to detect touch by listening for the acoustic pulse created when an object touch the screen.
  • Choosing the right type of touch screen depends on factors such as accuracy, durability, image quality, and cost.
  • The future of touch screen technology includes haptic feedback, flexible displays, 3D touch, and integration with AI.
