Unlock the Mystery of Resistive Touchscreen Technology: The Ultimate Guide to Resistive Touch

Resistive touchscreens are a foundational technology that paved the way for the advanced touch interfaces we use today. This comprehensive guide dives deep into the inner workings of resistive touchscreens, explaining the principle of resistive, exploring its advantages and limitations, and comparing it with other touch technology. Whether you're a tech enthusiast, a student, or a professional working with embedded systems, understanding how resistive touch screens work is essential for appreciating the evolution of modern touch interfaces. This article is your go-to resource for everything you need to know about the fascinating world of resistive touch.


Detailed Explanation

1. What Exactly is a Resistive Touchscreen and How Does it Differ from Other Types of Touch Screen?

A resistive touchscreen is a type of touch screen that relies on pressure to register touch input. Unlike capacitive screens, which respond to the electrical charge of your finger, resistive touchscreens consist of two layers of transparent conductive material, typically indium tin oxide (ITO), separated by an air gap with spacer dots. When you apply pressure on the screen, the top and bottom layers are pressed together, and contact is made, registering the touch location. This is the basic working principle of the resistive technology.

The key difference between resistive and capacitive touchscreens lies in the way they detect touch. Capacitive touchscreens use a conductive layer that creates an electrical field on the screen surface. When you touch the screen, you disrupt this field, and the capacitive sensor sense the change. Resistive touchscreens, on the other hand, rely on physical pressure applied to the screen, making them responsive to a stylus, gloved fingers, or any object that can apply sufficient pressure on the screen. Other touch screen technologies include infrared touch and projected capacitive, each with its unique method of touch sensing.



2. How Does the Working Principle of a Resistive Touchscreen Allow it to Sense Touch?

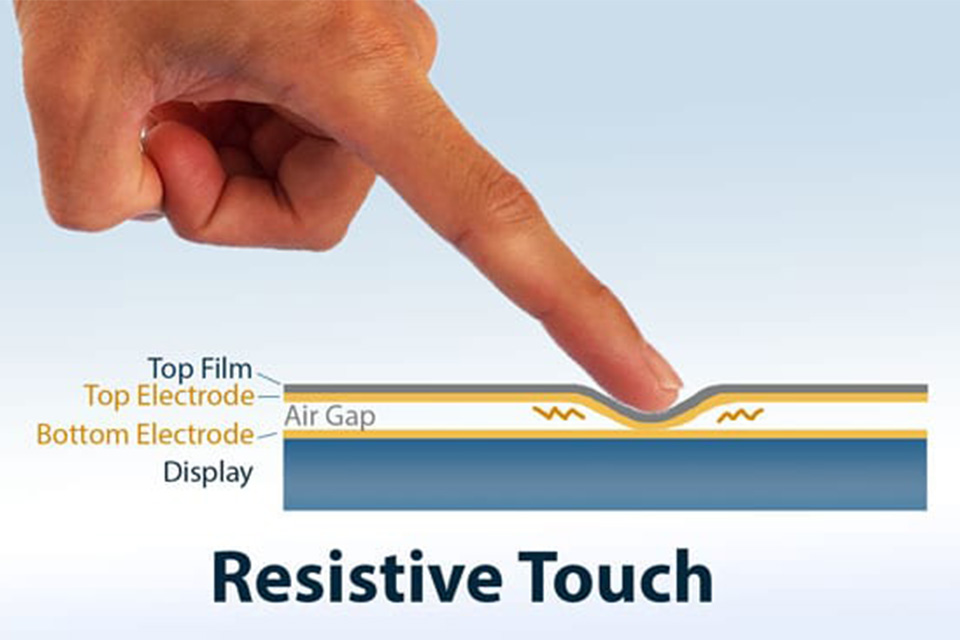

The working principle of a resistive touchscreen revolves around the creation of an electrical circuit upon contact with the bottom layer. The screen consists of two flexible sheets coated with a resistive material, such as ITO, the bottom layer being the reference, separated by an air gap. A voltage is applied across the top and bottom layers. When pressure is applied, the two layers make contact.

Upon pressure applied to the screen, the two sheets are pressed together, creating an electrical connection. This connection allows the touchscreen to determine the touch location. The controller measures the voltage at the point of contact, which corresponds to the X and Y coordinates of the touch. The principle of resistive is based on the pressure applied to create the connection between the conductive layer top and bottom. This technology works and is found in many electronic devices.

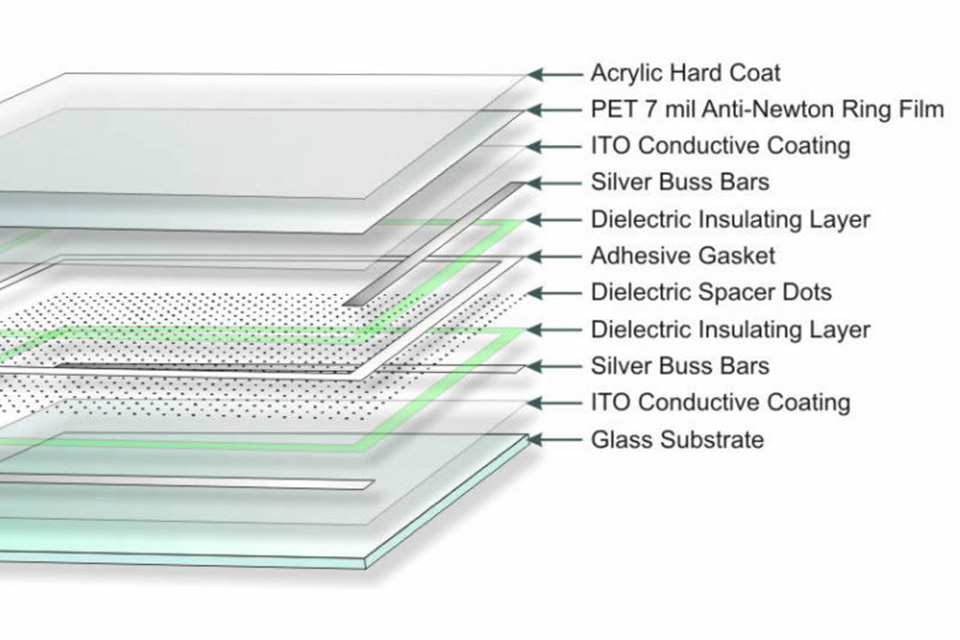

3. What are the Key Components of a Resistive Touchscreen and How Do They Interact?

A resistive touchscreen has several key components working in concert:

  1. Top Layer: A flexible layer made of polyethylene terephthalate (PET) coated with a resistive material. This layer responds to pressure on the screen.
  2. Bottom Layer: A glass or rigid plastic layer also coated with a resistive material. This layer provides a stable surface for the top layer to make contact with.
  3. Resistive Coating: Typically made of ITO, this transparent conductive coating allows electrical signals to flow when the layers make contact.
  4. Spacer Dots: These small dots separate the top and bottom layers, creating an air gap when no pressure is applied.
  5. Electrodes: Located at the edges of the screen, these electrodes apply a voltage gradient is applied across the resistive layers.
  6. Controller: This electronic component interprets the electrical signals and determines the touch location.

When pressure is applied to the screen, the top layer flexes and presses against the bottom layer, creating an electrical connection. The controller then measures the voltage at this point of contact, allowing it to register the precise location of the touch. All the components interact to detect touch.


4. What Are the Different Types of Resistive Touchscreens Available, Including the 4-Wire and 5-Wire Configurations?

There are primarily two types of resistive touchscreens: 4-wire and 5-wire.

  • 4-Wire Resistive Touchscreens: This is the more traditional resistive design. In this configuration, voltage is applied to the resistive layers in sequence (first the X direction, then the Y direction). When the screen surface is touched, the controller measures the voltage at that point to determine the X and Y coordinates. This design is cost-effective, but less durable compared to 5-wire designs.
  • 5-Wire Resistive Touchscreens: In this design, one layer serves as a voltage divider, while the other layer is used to measure the voltage. A constant voltage is applied to the four corners of one layer, and the fifth wire is connected to the other layer. This configuration provides better accuracy and durability because the touch sensor is not directly involved in creating the voltage gradient.


The 5-wire configuration is generally more reliable and offers longer lifespan, which makes it a good choice for applications that require high durability and accuracy. The 5-wire resistive touchscreen is more complex and durable.

Feature 4-Wire Resistive 5-Wire Resistive
Configuration Two layers with voltage applied sequentially One layer as voltage divider, other for measurement
Accuracy Good Better
Durability Moderate High
Cost Lower Higher
Applications Basic touchscreen devices Industrial equipment, medical devices
Working principle Measures voltage change due to pressure Measures voltage using a separate measurement layer, high accuracy

5. What are the Advantages of Using a Resistive Touchscreen Over a Capacitive Touchscreen?

Resistive touchscreens offer several advantages over capacitive screens:

  1. Cost-Effectiveness: Resistive touchscreens are generally less expensive to manufacture, making them a cost-effective solution for various applications.
  2. Activation Method: They can be activated with any object that applies sufficient pressure, including a stylus, gloved fingers, or even a pen. This makes them suitable for environments where users wear gloves or need to use a stylus for precision.
  3. Accuracy: Resistive sensors are made to register the precise location of the touch, providing better accuracy for applications that require precise input.
  4. Immunity to Interference: They are less susceptible to interference from electromagnetic interference (EMI) and radio frequency interference (RFI).
  5. Durability: The versatility of resistive touch screens offer protection from dust and water, thus resistive screens being suitable for harsh environments.

These advantages make resistive touchscreens a viable option for industrial control, medical devices, and other specialized applications where durability and versatility are paramount.


6. What are the Limitations and Disadvantages of Resistive Touchscreen Technology Compared to Capacitive Options?

Despite their advantages, resistive touchscreens also have limitations:

  1. Lower Image Clarity: The additional layers in resistive screens can reduce image clarity and brightness compared to capacitive screens.
  2. Durability: The flexible top layer is susceptible to wear and tear with frequent use, potentially leading to reduced touch sensitivity over time.
  3. Multi-Touch Limitation: Traditional resistive touchscreens are typically single-touch screens, meaning they cannot sense multiple touch inputs simultaneously.
  4. Sensitivity to Damage: The screen surface can be damaged by sharp objects, affecting the touch functionality.
  5. Requires Pressure: They require physical pressure applied to the screen to register a touch, which can be less convenient than the light touch required for capacitive touchscreens.

These limitations make resistive touchscreens less suitable for consumer electronic devices where image quality and multi-touch gestures are crucial. While since resistive touch has evolved and improved, capacitive and resistive touch remain significantly different.


7. In What Applications Are Resistive Touchscreens Commonly Used, and Why are They Preferred in These Scenarios?

Resistive touchscreens are commonly used in applications where cost, durability, and the ability to operate with gloved hands or a stylus are important:

  1. Industrial Control Systems: They are often found in industrial control panels and equipment where operators may be wearing gloves.
  2. Medical Devices: Resistive sensors are used in medical devices such as patient monitors and diagnostic equipment due to their reliability and ability to be operated with gloved hands.
  3. Point of Sale (POS) Systems: Touch screens offer a robust and reliable solution for retail environments, where they may be subjected to frequent use and harsh conditions.
  4. Navigation Devices: Older GPS devices and some in-car navigation systems use resistive touchscreens because they can be operated with gloves and are less sensitive to environmental factors.
  5. Older Portable Gaming Devices: Some older handheld gaming consoles used resistive touch technology due to the cost-effectiveness and the ability to use a stylus for precise control.

In these scenarios, the touchscreen functionality and ability to work in various conditions outweigh the limitations in image quality and multi-touch capability.




8. How Durable and Reliable are Resistive Touchscreens in Harsh Environments or With Frequent Use?

Resistive touchscreens are known for their durability and reliability, especially in harsh environments. Their construction, consisting of two flexible sheets coated with a resistive material and sealed, provides a good level of protection against dust, water, and other contaminants. This makes them suitable for industrial control panels, outdoor kiosks, and other applications where the screen is exposed to the elements.

However, the durability of a resistive touchscreen can be affected by frequent use. The top layer, being flexible, can be subject to wear and tear, especially if it is repeatedly touched with sharp objects or excessive pressure. Over time, this can lead to reduced touch sensitivity and accuracy. Despite this limitation, resistive touchscreens are generally more durable than capacitive touchscreens in environments with extreme temperatures, humidity, or exposure to chemicals.


9. Can Resistive Touchscreens Support Multi-Touch Functionality, and How Does This Compare to Capacitive Touchscreens?

Traditional resistive touchscreens are not designed to support multi-touch functionality. Because they rely on pressure to create an electrical connection at a single point, they can only register one touch point at a time. When multiple touch inputs are applied simultaneously, the touchscreen may become confused and provide inaccurate readings or no response at all.

In contrast, capacitive touchscreens are inherently capable of supporting multi-touch gestures. Capacitive sensors can detect and track multiple points of contact simultaneously, allowing for intuitive gestures such as pinch-to-zoom, swipe, and rotate. This capability has made capacitive touchscreens the dominant choice for smartphones, tablets, and other consumer electronic devices where multi-touch interaction is essential. There have been some advances to the standard to allow for a primitive form of multiple touch.


10. What is the Future of Resistive Touchscreen Technology in the Face of Advancements in Other Touch Screen Technologies?

While capacitive touch technology has largely taken over the consumer electronics market, resistive touchscreen technology still has a place in specialized applications. The technology continues to evolve, with improvements in materials, manufacturing processes, and controller algorithms. This may lead to resistive touchscreens with improved image quality, durability, and even limited multi-touch capabilities.

However, the future of resistive touch likely lies in niche markets where its unique advantages, such as cost-effectiveness, glove compatibility, and resistance to environmental factors, are most valued. As other touch screen technologies, such as projected capacitive and infrared touch, continue to advance, resistive touchscreens will need to innovate to maintain their relevance in specific applications. The competition from capacitive touch screens or even capacitive touchscreens will remain strong.


Key Takeaways: 10 Important Things to Remember

  • Pressure-Based: Resistive touchscreens rely on physical pressure to register touch.
  • Two Layers: They consist of two flexible sheets coated with a resistive material.
  • Cost-Effective: Resistive touchscreens are generally less expensive than capacitive screens.
  • Glove Compatibility: They can be operated with gloves or a stylus.
  • Single-Touch: Traditional resistive touchscreens do not support multi-touch.
  • Durable: They are relatively durable and resistant to environmental factors.
  • Lower Image Clarity: Image quality may be lower compared to capacitive screens.
  • Industrial and Medical Use: Commonly used in industrial control and medical devices.
  • 4-Wire and 5-Wire: Two main types are 4-wire and 5-wire configurations.
  • Niche Applications: Their future lies in niche applications where cost and durability are paramount.
