This comprehensive guide delves into the world of Liquid Crystal Displays (LCDs), explaining the technology behind them, the different types available, and how they work. From basic principles to the pros and cons of each type of LCD screen such as TN, IPS, and VA, this article provides a thorough overview. Whether you're a tech enthusiast, a gamer, or simply curious about the displays we use every day, this is an essential read to understand the nuances of LCD technology.
A liquid crystal display (LCD) is a flat panel display technology that is commonly used in a wide variety of devices, from monitors and televisions to smartphones and tablets. Unlike traditional cathode ray tube (CRT) displays, an LCD does not emit light directly. Instead, it relies on the properties of liquid crystals to modulate light from a backlight. The core of an lcd screen is the liquid crystal layer, which is sandwiched between two layers of polarized glass. The liquid crystal itself is a substance that has properties between those of a conventional liquid and a solid crystal.
The liquid crystal molecules are aligned in a specific way such that light from the backlight is either blocked or allowed to pass. When an electric current is applied to the liquid crystals via electrodes, the molecules realign, thus changing the amount of light that is able to pass through the polarized filters and on to the viewer. Each pixel on the lcd screen is made up of three sub-pixels (red, green, and blue) which can be controlled independently. The combined result is what we see on the screen. This control over each individual pixel allows for a detailed and sharp image. This flat panel display technology makes for more energy-efficient display devices.

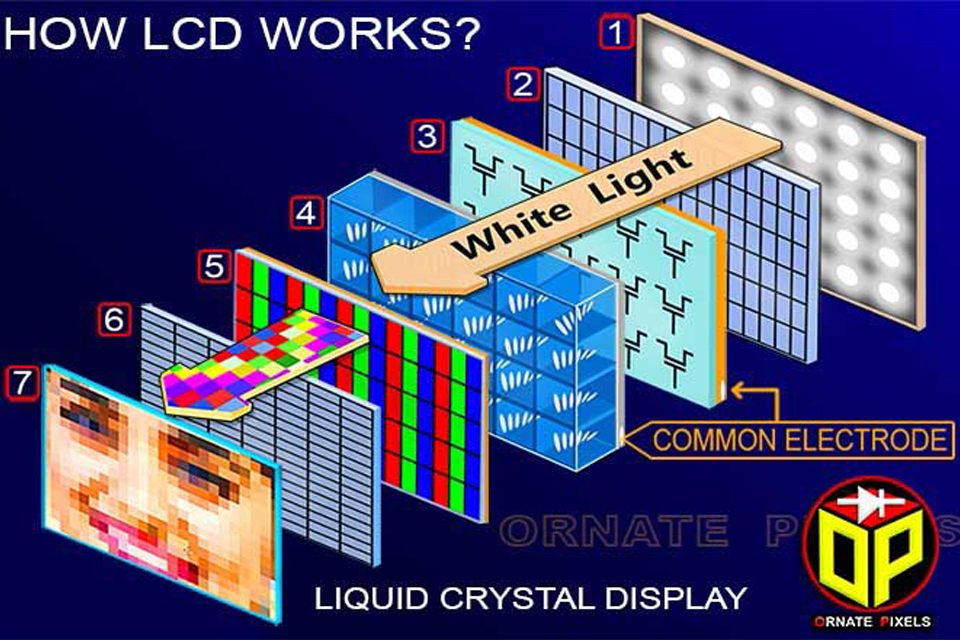

A typical lcd screen is composed of several layers, each with a specific purpose. At the very back, there is a backlight which provides the light source that illuminates the liquid crystals from behind. The light then passes through a diffuser, which spreads the light evenly across the surface of the lcd panel. Next, there is the first polarized filter, which only allows light waves vibrating in one direction to pass. This is followed by the liquid crystal layer, which has the liquid crystals sandwiched between two glass layers.
The liquid crystals, usually twisted nematic (TN) in older displays, are what control the amount of light to pass, depending on the electric field applied. The amount of electric current applied determines the amount of light to pass. Following the liquid crystal layer is the second polarized filter, which is oriented perpendicularly to the first. This ensures that light is either blocked or allowed to pass depending on the orientation of the liquid crystals. Then there are the color filters for each sub-pixel, followed by the transparent electrodes that deliver the electric charge to the liquid crystals. These components of an lcd all work together to create the image that you see on the lcd screen.
There are several different types of lcd technologies, each with its own set of characteristics and applications. The most common types of lcds are twisted nematic (TN), in-plane switching (IPS), and vertical alignment (VA). TN lcds were among the earliest lcd screens and are known for their low cost and fast response times. However, they often suffer from limited viewing angles and less accurate color reproduction compared to other types of lcds. In contrast, ips displays are well-known for their wide viewing angles and accurate color reproduction, making them suitable for graphics work.
Vertical alignment (VA) lcd screens fall somewhere in between TN and IPS screens, offering a good contrast ratio with deeper blacks but having slower response times. These different types of lcd are designed for different purposes and various types of lcd screens are suited for different types of usage. It is important to choose the right type of lcd panel for your specific needs as the types of lcds have different strengths and weaknesses, which makes them better suited for particular applications. These types of lcds make for a wide range of applications.
A twisted nematic (TN) lcd screen is one of the earliest and most common types of lcd screens. TN technology has been a staple in many display applications due to its low manufacturing cost and quick response time. In a TN lcd display, the liquid crystals are arranged in a twisted helix structure. When no electric current is applied, the light passes through the liquid crystals, which are aligned between the two polarized layers. When an electric current is applied, it untwists the liquid crystals, blocking light from passing.
The main advantage of a tn lcd is its fast response time, which is important in gaming monitors. However, tn lcds suffer from limited viewing angles, which means that the image may appear washed out or distorted when viewed from an angle. This means that the viewing angle can be limited. TN screens also often have less accurate color reproduction and lower contrast ratios compared to other types of displays. The liquid crystals twist based on the electric field. Despite its limitations, the lower cost of tn lcds makes it a suitable choice for many types of devices. The tn screen has become very common in devices like laptops and monitors.
In-plane switching (IPS) is a type of lcd technology that addresses the limited viewing angles associated with TN panels. In ips displays, the liquid crystal molecules are aligned parallel to the glass substrates, unlike the twisted orientation in TN screens. When an electric current is applied, the liquid crystals rotate within the same plane, which allows light to pass through while maintaining a consistent image quality, even when viewed from a wider viewing angle. This wide viewing angle is one of the major advantages of ips panels compared to TN panels.
The key advantage of ips displays is their wider viewing angles, and much better color reproduction, making them an excellent choice for graphics design, photography, and other color-sensitive tasks. Ips displays also typically offer better contrast ratios than tn lcds. However, ips displays often have a slightly slower response time and can be more expensive than tn lcds. Though slower, the response time is still fast enough for gaming for most gamers. Ips technology has found its way into various devices like smartphones, tablets, and professional monitors because of its image quality and wide viewing angle.

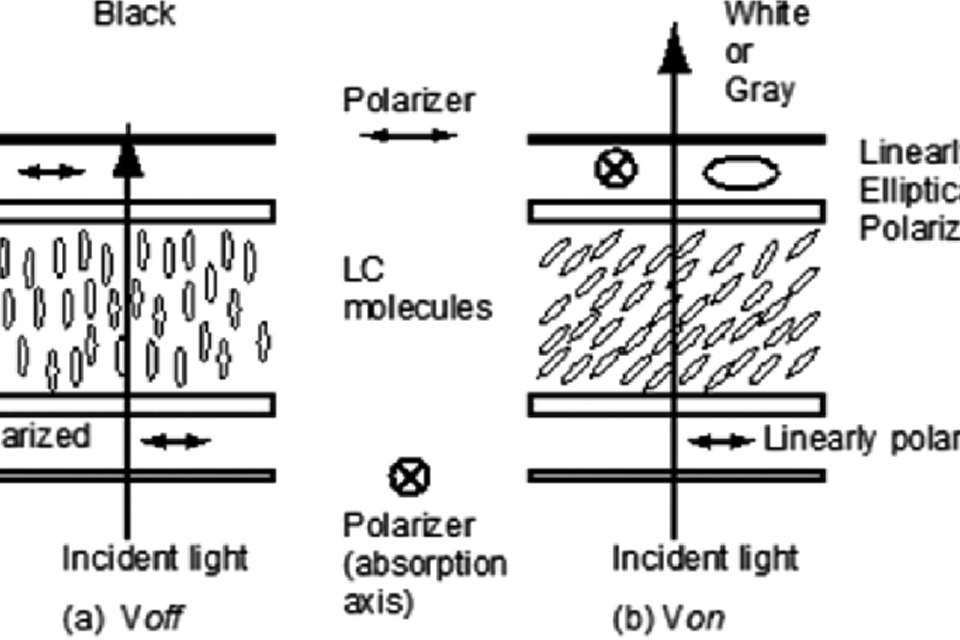

Vertical Alignment (VA) is another type of lcd technology that offers a compromise between the characteristics of TN and IPS panels. In a vertical alignment lcd display, the liquid crystal molecules are aligned vertically with respect to the glass substrates when no voltage is applied. This alignment blocks the backlight and ensures deeper blacks for the user. When a voltage is applied, the liquid crystals tilt, allowing light to pass.
VA screens are known for their excellent contrast ratios and deeper blacks, which are superior to those of both TN and ips displays. However, they often have slower response times than TN displays and can suffer from some color shift issues at wider viewing angles, though not as severe as with TN. Vertical alignment screens offer a balance of image quality and viewing angles which makes them suitable for televisions and monitors where contrast is more important. Compared to other types of lcd, VA screens sit in a middle ground of performance.

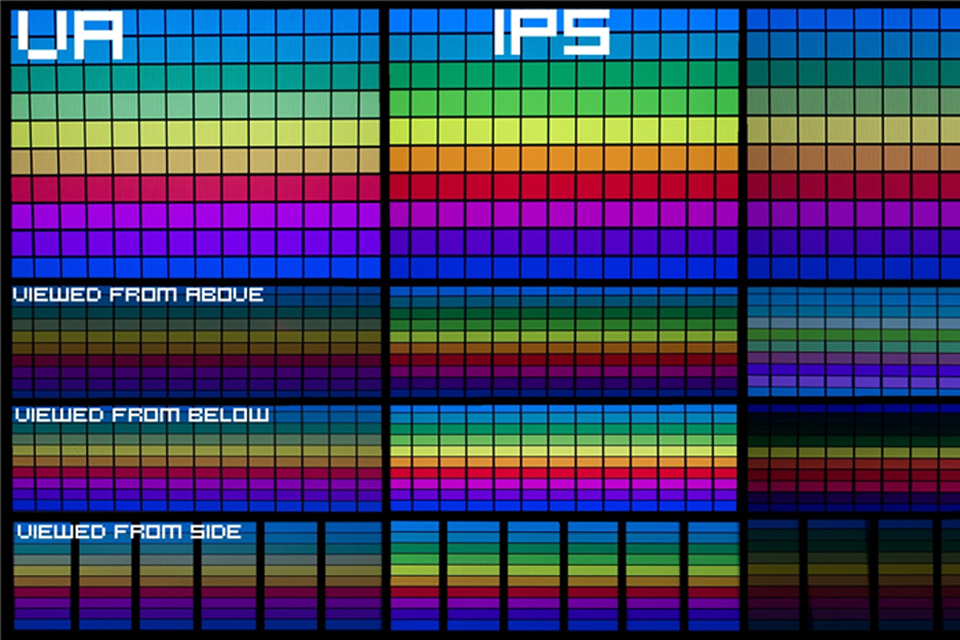

The three main types of lcd screens—TN, IPS, and VA—each have distinct performance characteristics. TN screens are known for their fast response time and low cost, making them suitable for gaming and budget-friendly displays. However, their viewing angles and color reproduction are limited. IPS displays offer excellent viewing angles and accurate color reproduction, making them ideal for professional graphics work and high-quality displays, though they tend to be more expensive.
VA screens offer the deepest blacks and the best contrast ratios, but can sometimes suffer from slower response times and color shift at wider viewing angles. This makes them suited for media consumption and applications that require deep blacks. The specific type of lcd panel affects various metrics such as response time, refresh rate, image quality, viewing angles and color accuracy. Choosing a display involves considering the balance of price, response time, and viewing angles. These performance differences make each type of lcd suitable for different applications.
Table 1: Comparison of TN, IPS, and VA LCD Technologies
| Feature | TN (Twisted Nematic) | IPS (In-Plane Switching) | VA (Vertical Alignment) |
|---|---|---|---|
| Response Time | Fastest | Moderate | Slower |
| Viewing Angles | Limited | Wide | Moderate |
| Color Accuracy | Lowest | Highest | Moderate |
| Contrast Ratio | Lower | Moderate | Highest |
| Black Levels | Lighter Grays | Moderate | Deeper Blacks |
| Cost | Lowest | Higher | Moderate |
| Typical Use Cases | Budget Gaming Monitors, basic displays | Professional monitors, smartphones, tablets | Televisions, monitors with emphasis on contrast |
The refresh rate and response time are two critical specifications that affect the performance of an lcd monitor. The refresh rate is the number of times per second that an image is redrawn on the screen and is measured in hertz (Hz). A higher refresh rate results in smoother motion and less blur, particularly during fast-moving scenes, which is important for gaming and video playback. Refresh rates are often 60Hz, 144Hz or higher. A higher refresh rate results in better display technologies.
The response time, on the other hand, measures how quickly a pixel can change from one color to another and it is measured in milliseconds (ms). A faster response time reduces motion blur and ghosting, which is especially important for fast-paced gaming and video content. A slower response time results in blurrier images, which is undesirable. Both the refresh rate and the response time affect the clarity of the image. Choosing an lcd monitor with a good balance of refresh rate and response time is crucial for optimal display performance, especially for applications that demand fast-paced visuals. Both refresh rate and response time are important considerations for different types of displays.
Different types of lcds have found their applications in various types of displays, due to their unique characteristics. TN lcds are commonly used in budget-friendly monitors and laptop screens where cost is a major consideration, also many gaming monitors utilize TN technology due to the fast response time. IPS displays, on the other hand, are widely used in smartphones, tablets, and professional monitors where color accuracy and wide viewing angles are crucial, while ips displays are becoming more common in gaming displays. Ips displays are also popular in devices like mobile phones and tablets.
VA screens are frequently found in televisions, gaming monitors, and some mid-range monitors, where deep black levels and a high contrast ratio are more critical than response time and perfect color accuracy. Various types of lcd screens also find application in digital signage where a large screen with good viewing angles is needed. Different lcd panel technologies have shaped the modern display market, providing suitable display devices for various needs. LCD technologies have found application in a wide range of devices.
The field of lcd technology is continually evolving, and various innovations aim to improve performance and address some of the limitations of existing technologies. One recent development is the use of local dimming, where the backlight can be controlled independently in different zones, leading to better contrast ratios and deeper blacks. This has resulted in better image quality. Further improvements are being made to decrease the response time of IPS and VA panels to improve gaming performance.
Another development is the continued refinement of sub-pixel rendering techniques, which improve the perceived sharpness of images and text. Various types of lcds are being improved to address the problems of older lcd displays. Newer lcd displays are also more energy-efficient, reducing power consumption. There has also been an increased adoption of pls technology, which is an improved form of in-plane switching technology. The pls panels offer several advantages such as better viewing angles and higher brightness compared to the twisted nematic display panels. There has been continuous improvement in various lcd technologies to address some of the shortfalls of existing display technology. These advancements have made flat panel display technology more advanced.
Table 2: Advantages and Disadvantages of Different LCD Types
| LCD Type | Advantages | Disadvantages |
|---|---|---|
| TN | Fast response time, low cost | Limited viewing angles, poor color reproduction |
| IPS | Wide viewing angles, accurate color reproduction | Slower response time, higher cost than TN |
| VA | High contrast ratio, deep black levels | Slower response time, some color shift at wide angles |
