Please kindly contact us for full data sheet of the display.
DESCRIPTION

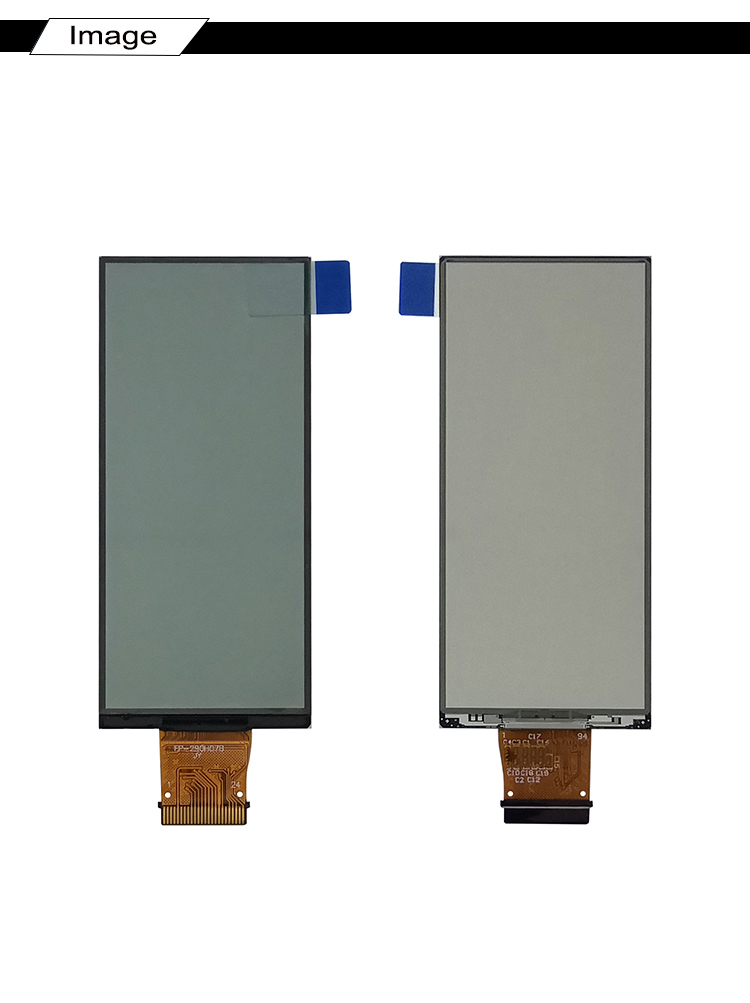

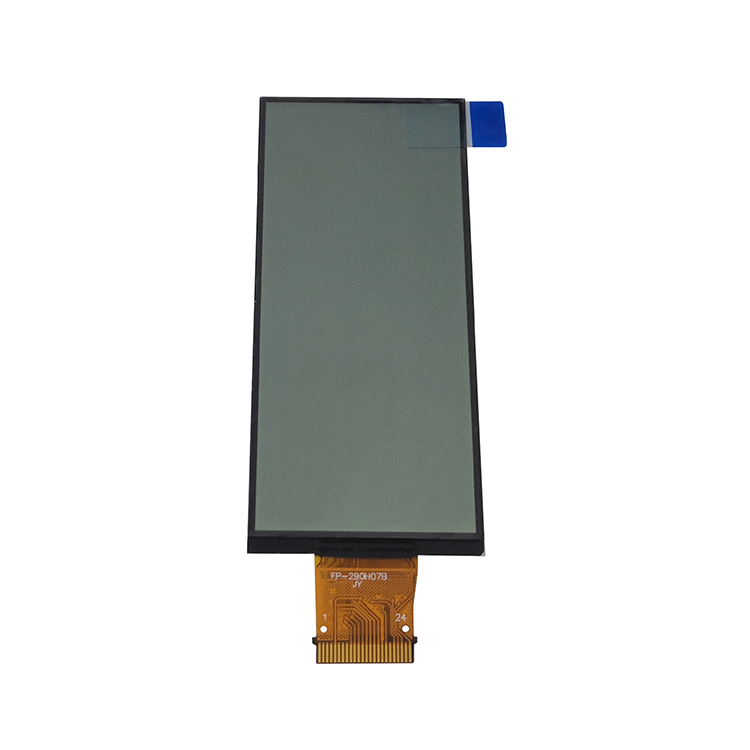

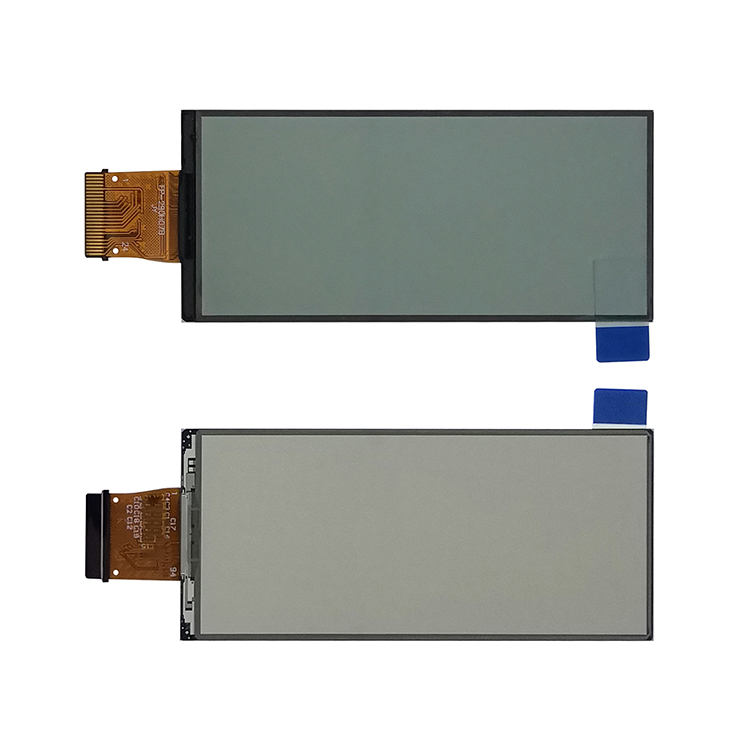

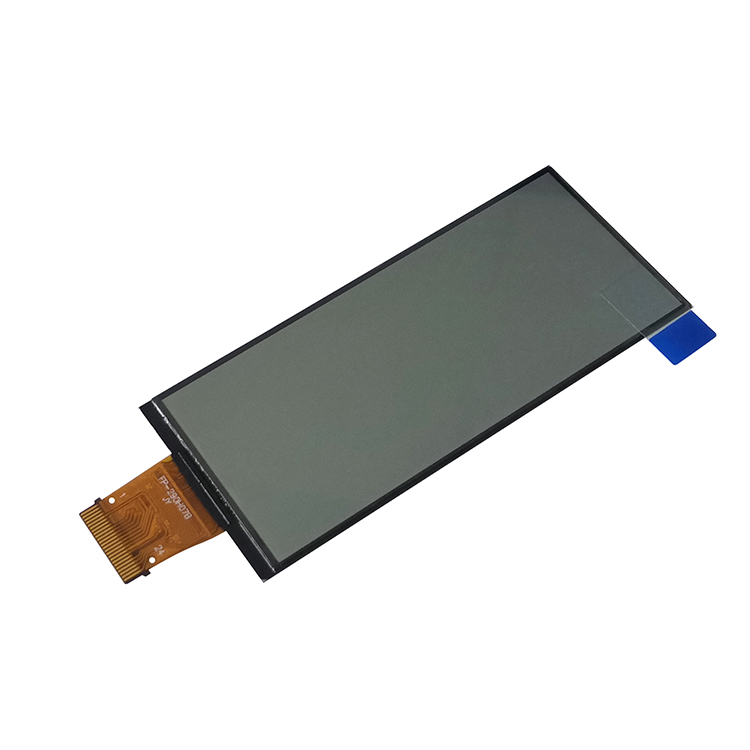

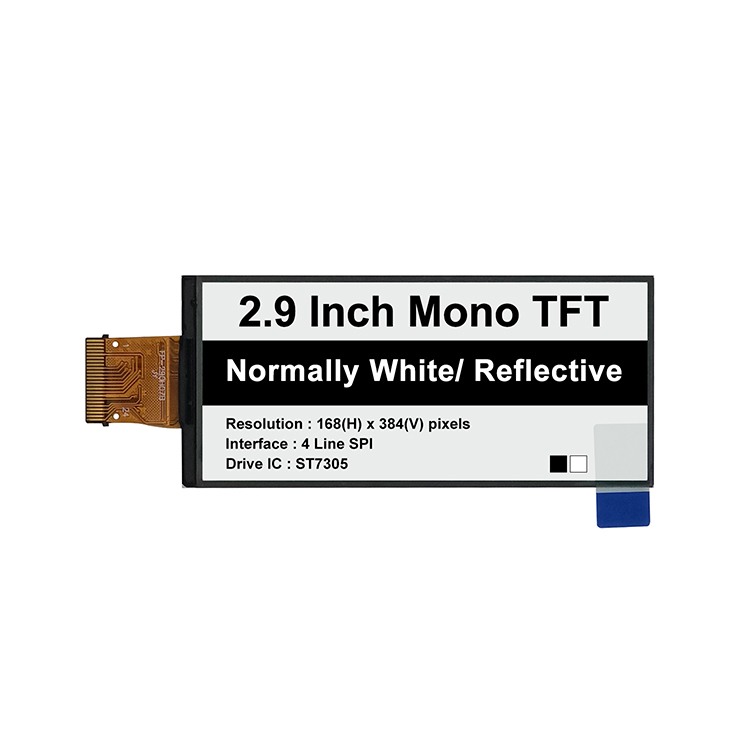

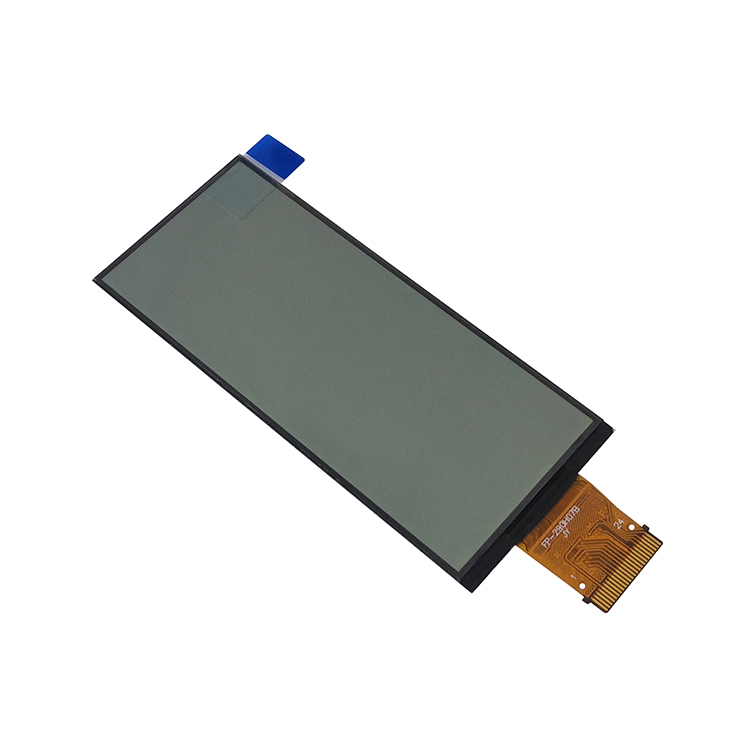

HICENDA HE290TB is a 168X384 dot-matrix TFT LCD module. This module is composed of a TFT LCD
GENERAL SPECIFICATION
| Display Type: | refelctive display/Sunlight Readable display |
| Display Mode: | Mono TFT/Normally White/ Reflective display |
| Model Number: |
HE290TB
|
| Diagonal Screen size: | 2.9 inch |
| Interface: |
4 Line SPI Interface
|
| Number of Pixels: |
168*384 pixels
|
| Panel Size: |
31.1(H) x 70.95(V) x0.8(D)(mm)
|
| Driver IC: |
ST7305
|
| Active Area: |
29.1(H) x 66.85(V)(mm)
|
|
Display Mode:
|
Mono TFT/Normally White/ Reflective
|
|
Dot pitch:
|
0.1732(H) x 0.17408(V)(mm)
|
|
Weight: |
3.7±0.5(g)
|
|
Color:
|
Reflective display |

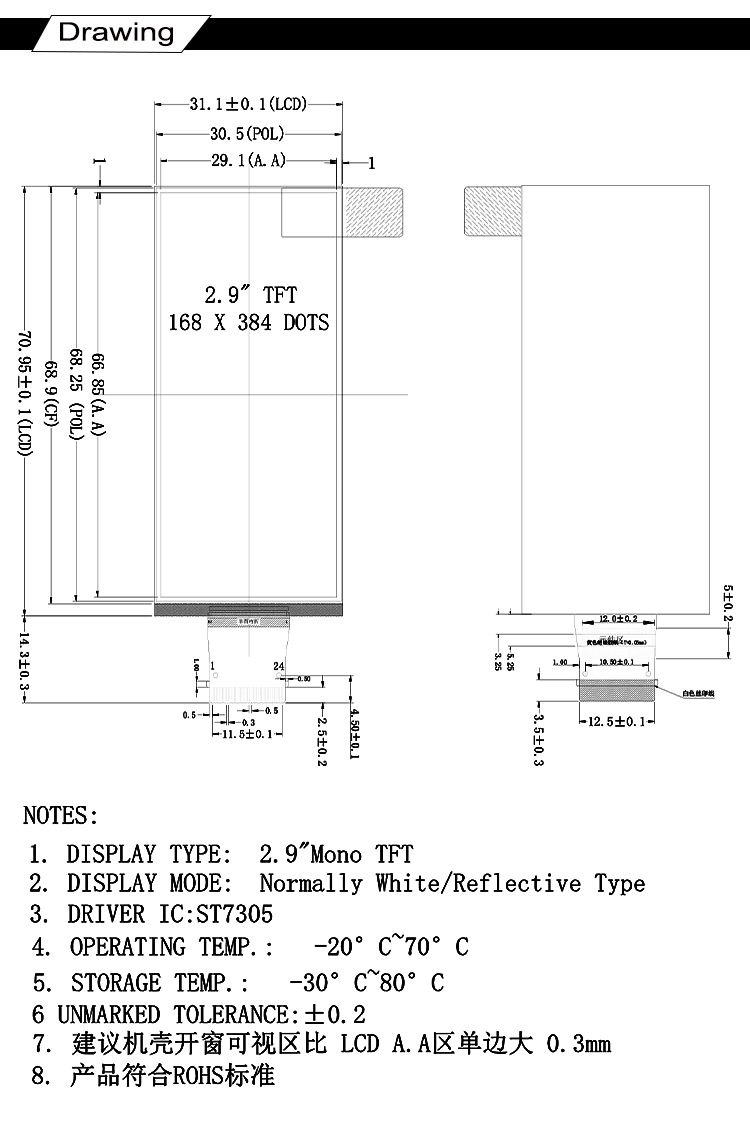

DRAWING

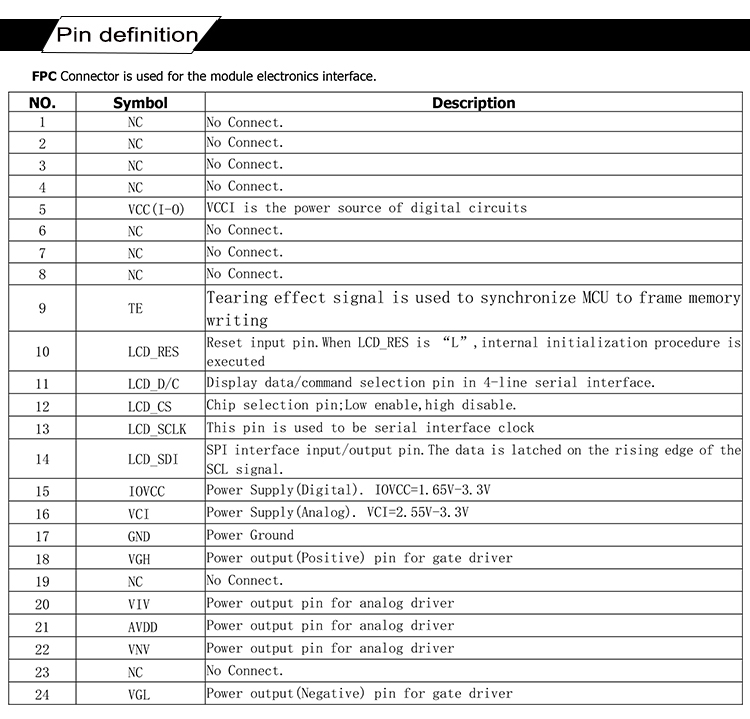

INTERFACE PIN FUNCTION
