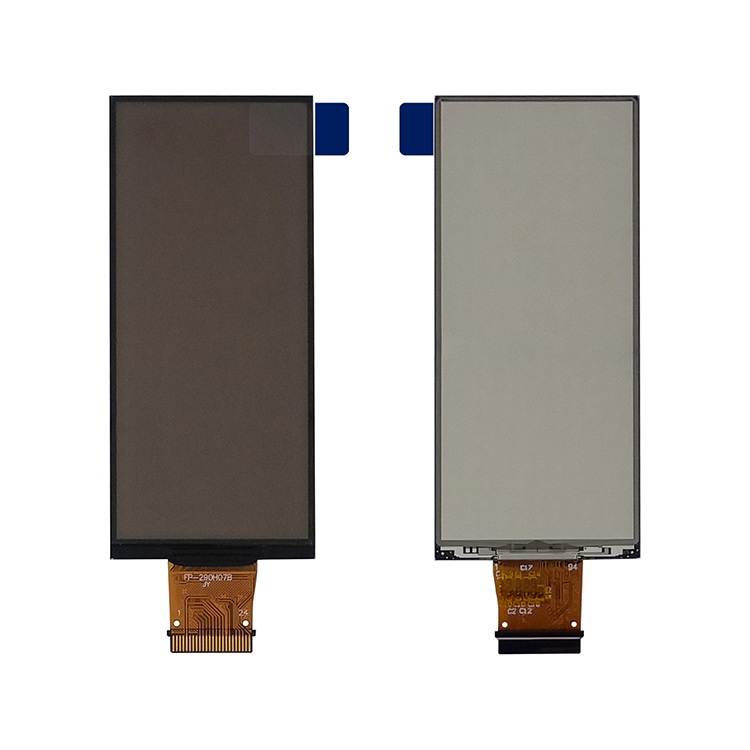

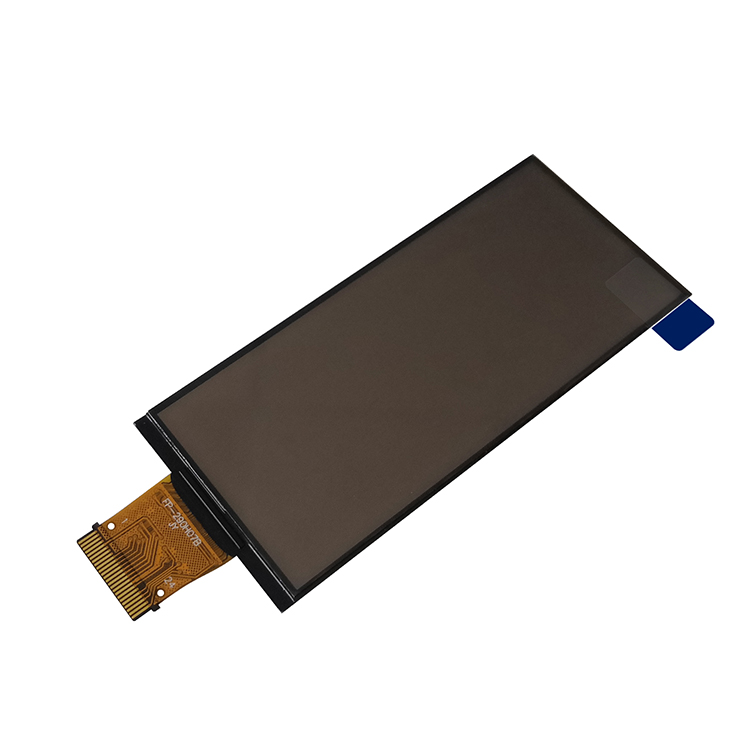

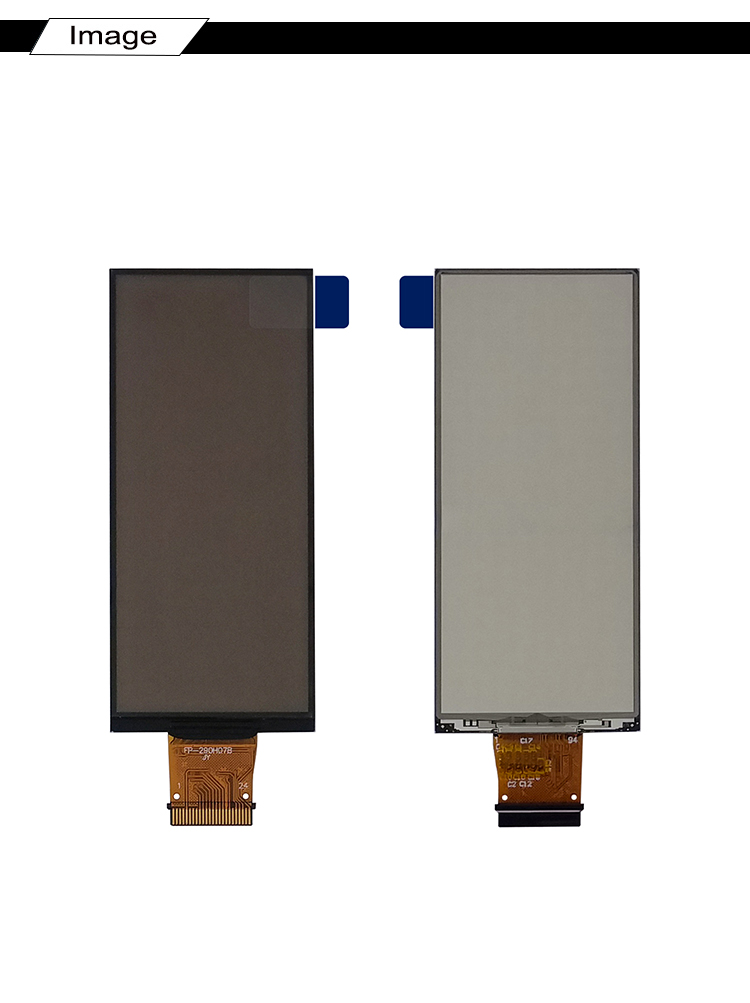

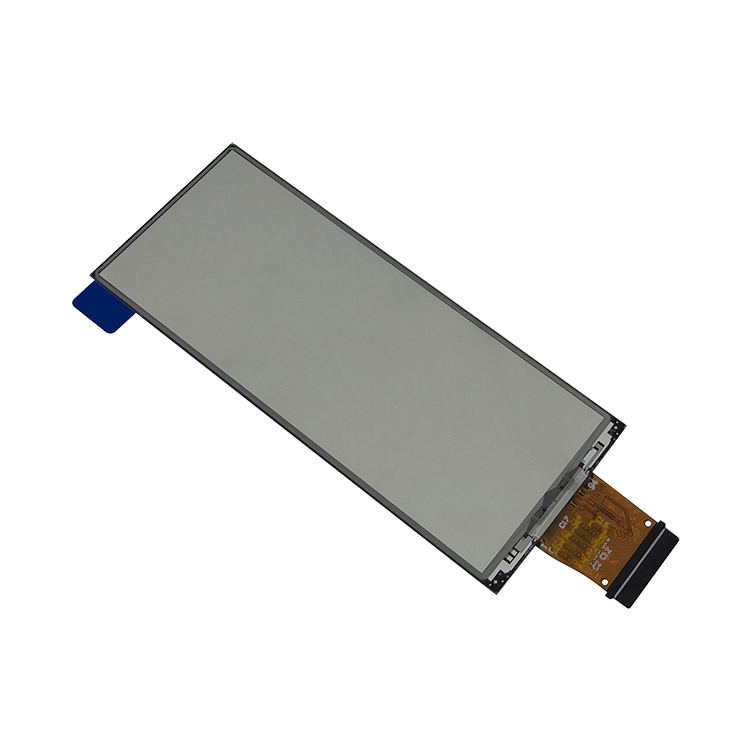

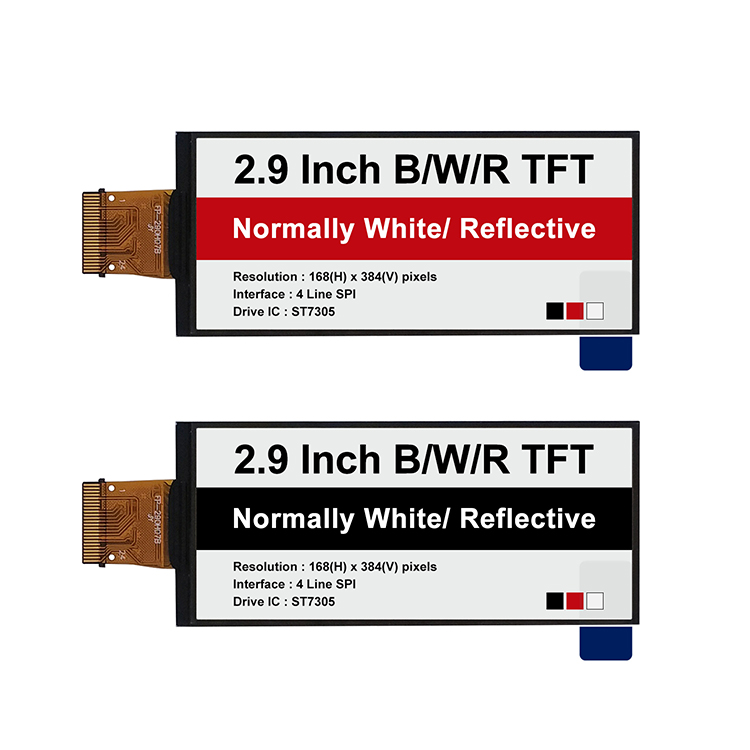

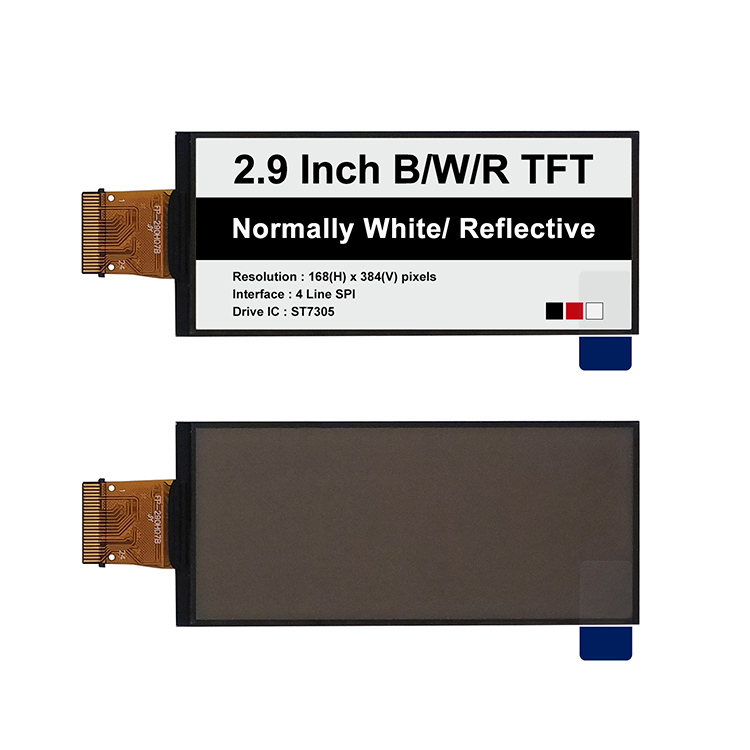

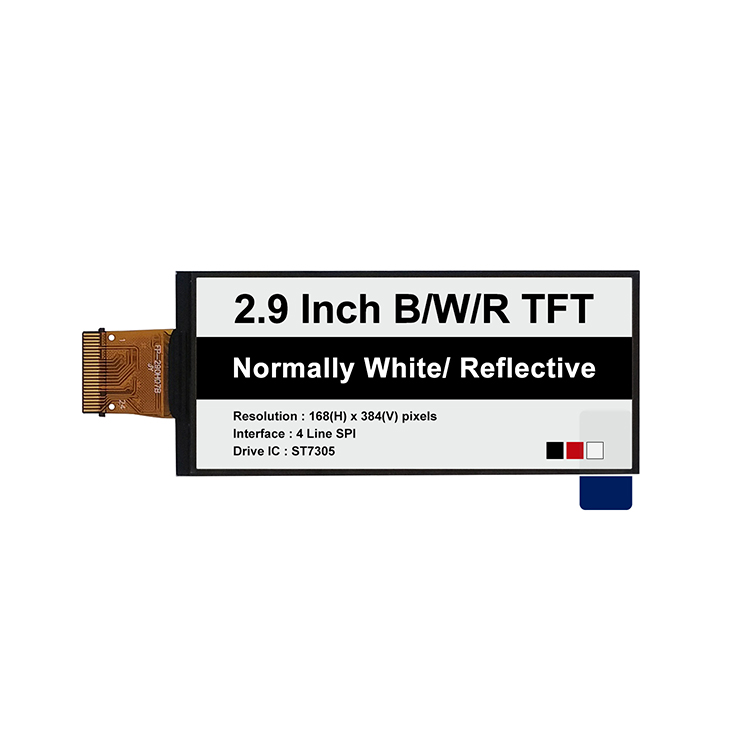

Reflective Display 2.9 inch 168x384 TFT LCD Screen

  • Size: 2.9 inch
  • Controller IC:ST7305
  • Resolution:168*384DOTS
  • Interface:4 Line SPI
  • Product description: Reflective Display 2.9 inch 168x384 TFT LCD Screen
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA HE290TRis a 168X384 dot-matrix TFT LCD module. This module is composed of a TFT LCD

Panel, driver ICs, FPC.








GENERAL SPECIFICATION

Display Type: refelctive display/Sunlight Readable display
Display Mode: Mono TFT/Normally White/ Reflective display
Model Number:
HE290TB
Diagonal Screen size: 2.9 inch
Interface:
4 Line SPI Interface
Number of Pixels:

168*384 pixels
Panel Size:

31.1(H) x 70.95(V) x0.8(D)(mm)
Driver IC:

ST7305
Active Area:

29.1(H) x 66.85(V)(mm)
Display Mode:

Mono TFT/Normally White/ Reflective
Dot pitch:

0.1732(H) x 0.17408(V)(mm)

Weight:

3.7±0.5(g)

Color:

Reflective display

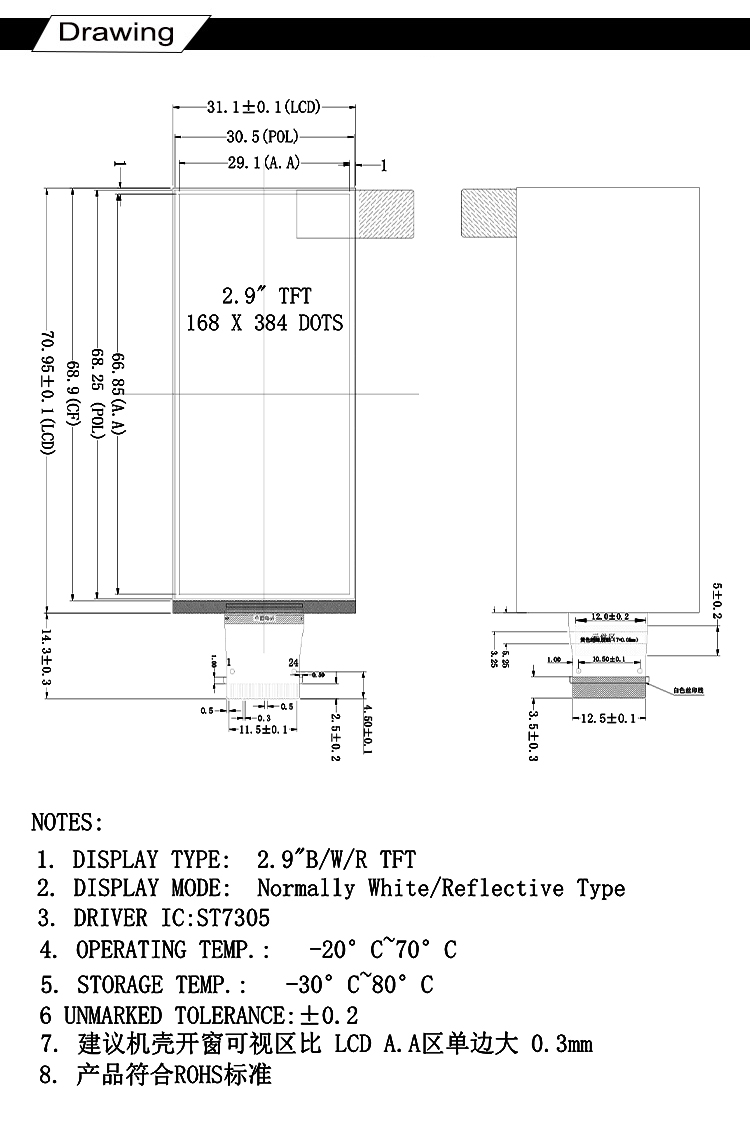

DRAWING

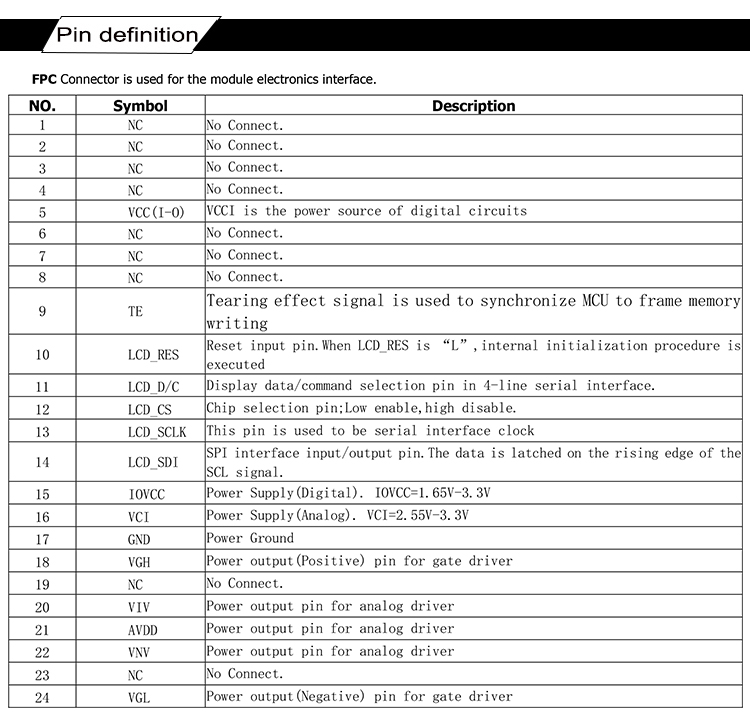

INTERFACE PIN FUNCTION
