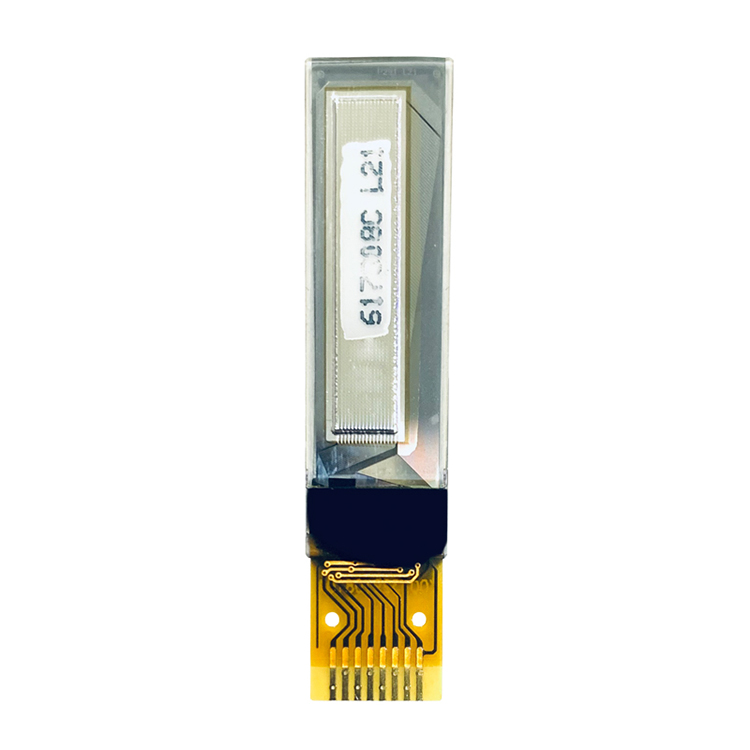

  • Micro OLED Display, 0.69 inch 96x16 OLED Screen

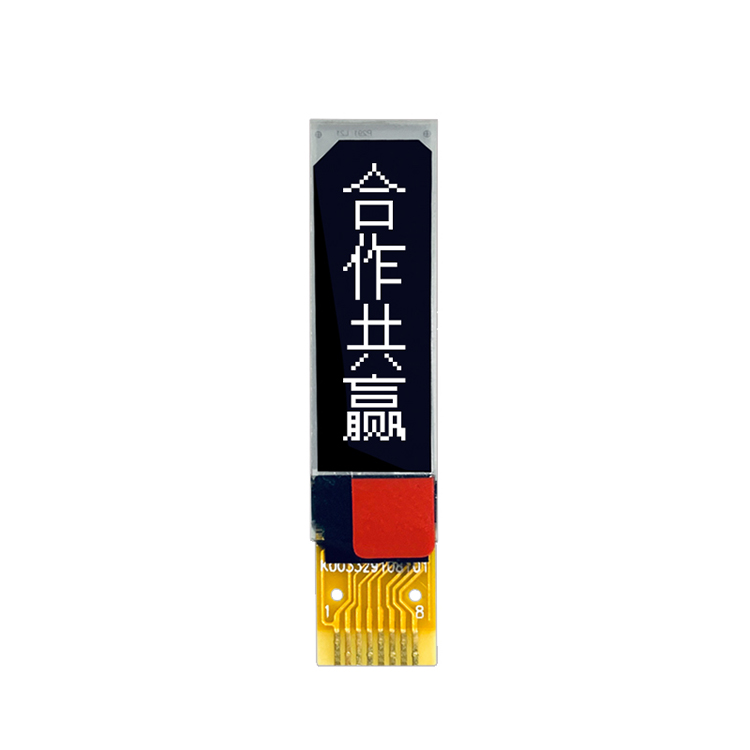

  • Micro OLED Display, 0.69 inch 96x16 OLED Screen

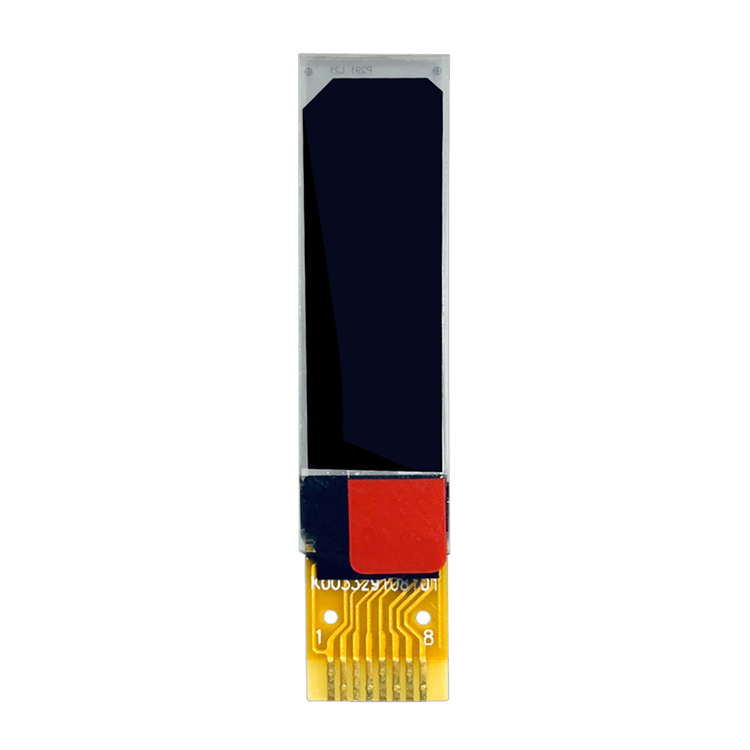

  • Micro OLED Display, 0.69 inch 96x16 OLED Screen
Micro OLED Display, 0.69 inch 96x16 OLED ScreenMicro OLED Display, 0.69 inch 96x16 OLED ScreenMicro OLED Display, 0.69 inch 96x16 OLED Screen

Micro OLED Display, 0.69 inch 96x16 OLED Screen

  • Size: 0.69 OLED
  • Controller IC:SSD1306
  • Resolution: 96*16
  • Interface: I2C/SPI 8p
  • Product description: Micro OLED Display, 0.69" 96X16 OLED Micro Display
  • INQUIRY

Please kindly contact us for full data sheet of the display.




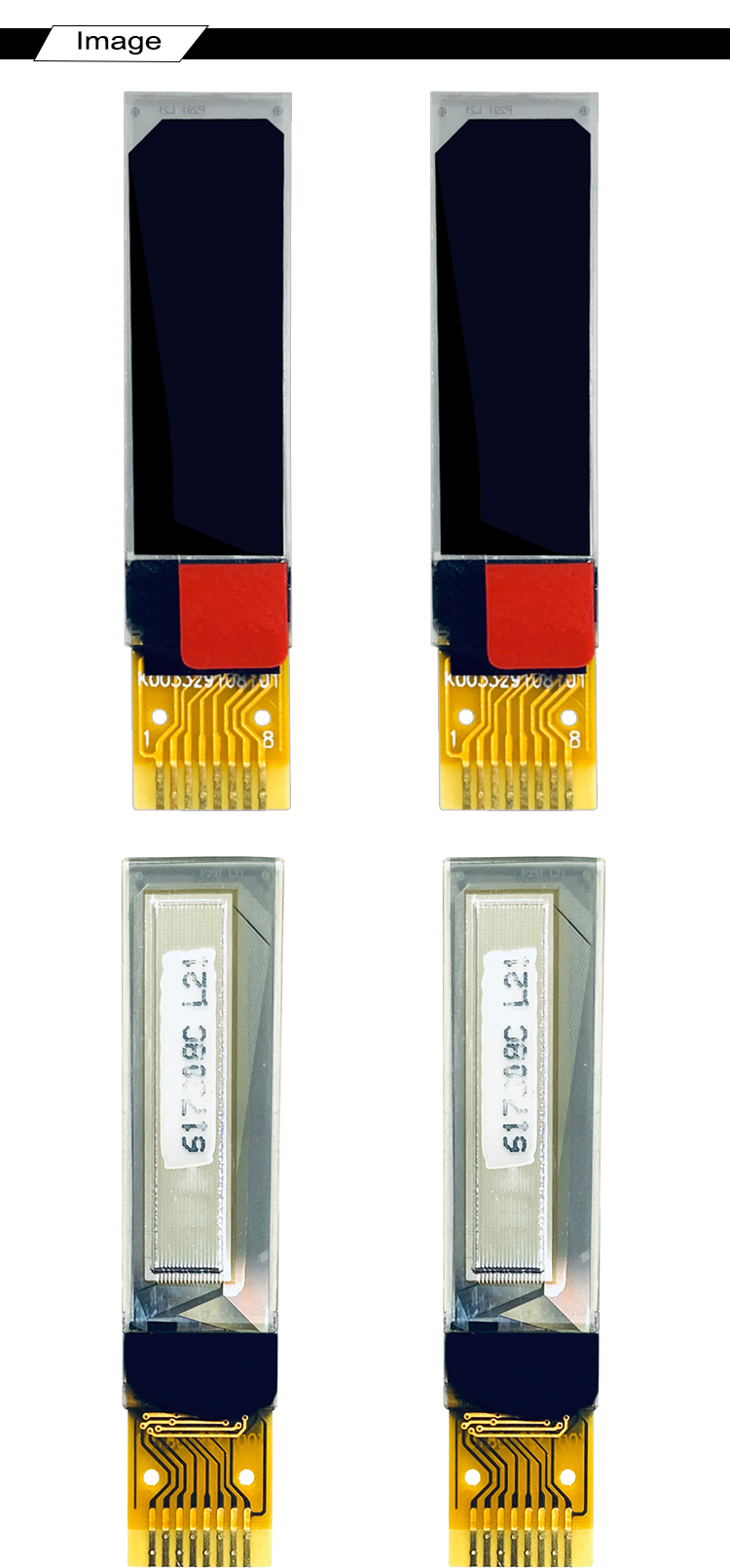

DESCRIPTION

HICENDA OLED 0.69 is a  passive matrix micro OLED display module which is made of 96*16 dots. It has the module dimension of 26.3 (W) x 8 (H) mm and Active Area size 17.26 (W) x 3.18 (H) mm. This OLED micro display is built in with SSD1306IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.69 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION

Color White
Panel matrix 96x16
Driver IC SSD1306BZ
Extremely thin thickness for best mechanism design 1.227mm
High contrast 2000:1
Wide viewing angle 160°
Interface I2C
Wide range of operating temperature -40 to 70 °C
Dot Size 0.16 (W) x 0.18 (H)
Dot Pitch 0.18 (W) x 0.20 (H)
Aperture Rate 80
Active Area 17.26 (W) x 3.18 (H)
Panel Size 26.3 (W) x 8 (H)
Panel Thickness 1.02 ± 0.1
Module Size 36.8 (W) x 9 (H) x 1.227 (D)
Diagonal A/A size 0.69
Module Weight 0.55 ± 10%



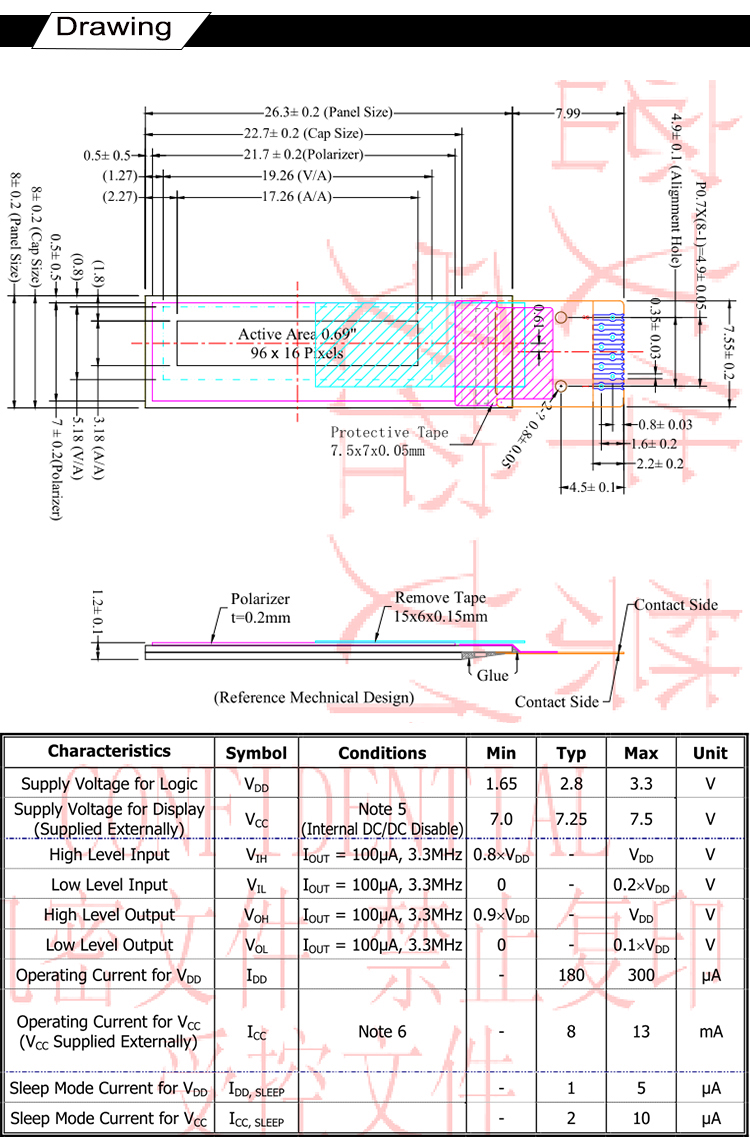

DRAWING



INTERFACE PIN FUNCTION
