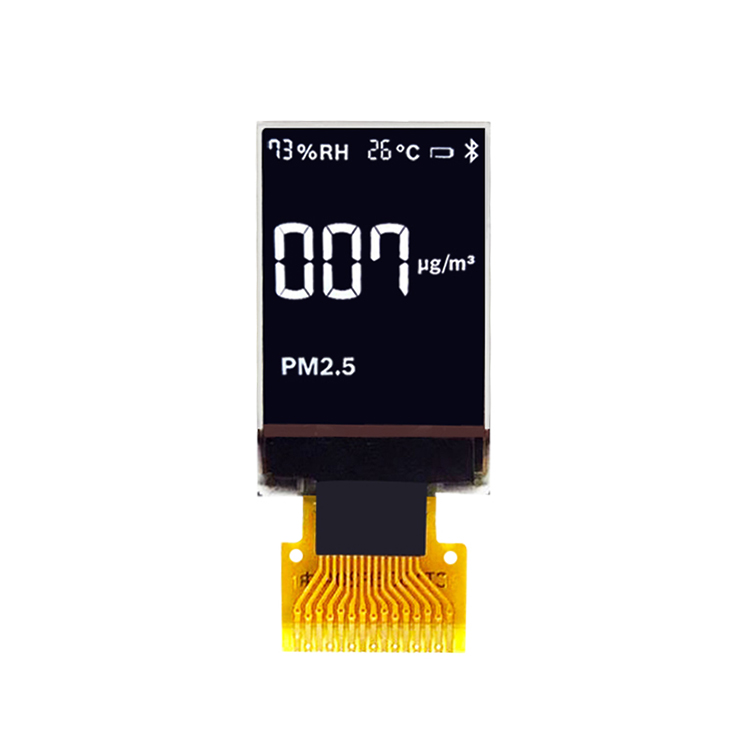

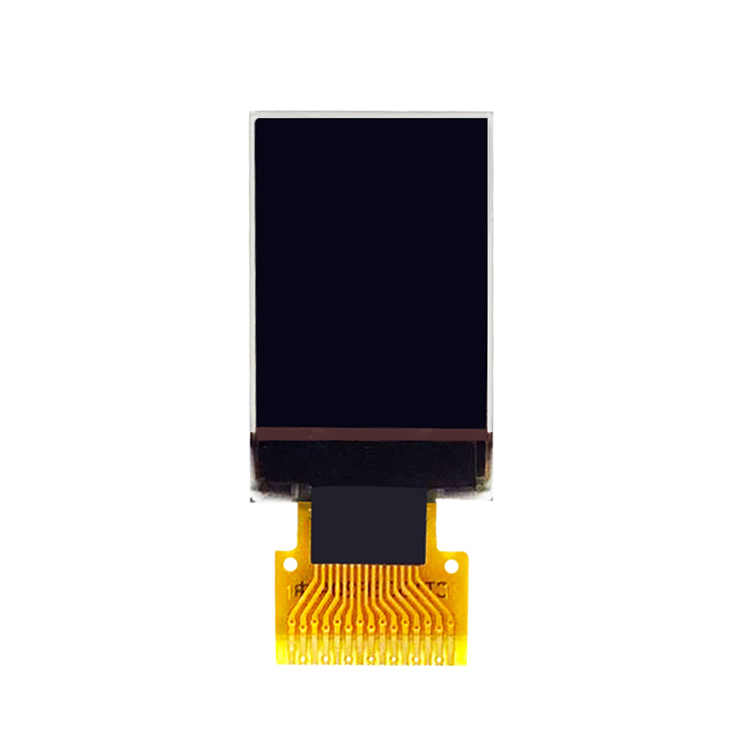

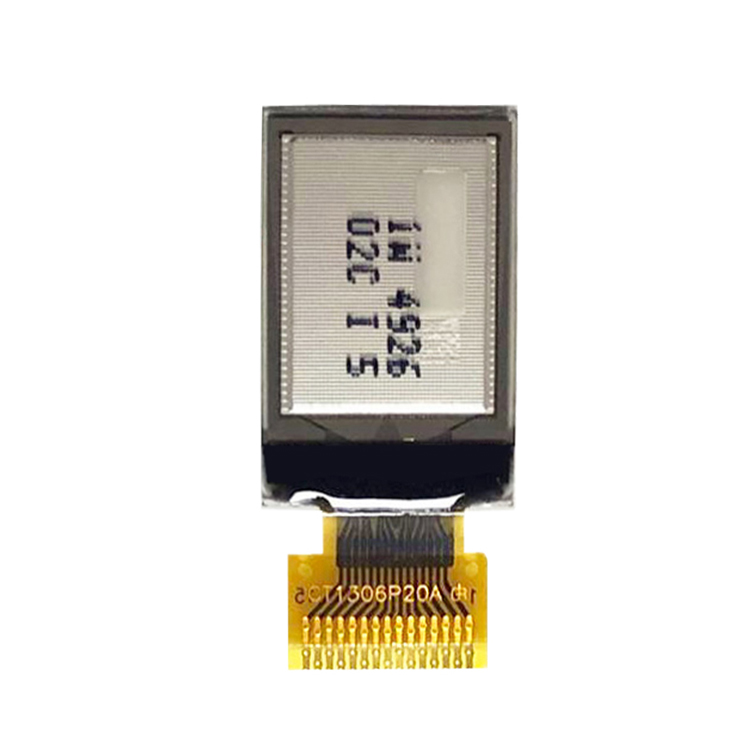

0.7"48X64 OLED Micro Display

  • Size: 0.71 OLED
  • Controller IC: SSD1306
  • Resolution: 48*64
  • Interface: SPI 15P
  • Product description: Micro OLED Display,0.7"48X64 OLED Micro Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA OLED 0.70 is a  passive matrix micro OLED display module which is made of 96*16 dots. It has the module dimension of 13.9X22X1.2 mm and Active Area size 10.54X14. mm. This OLED micro display is built in with SSD1306IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.70 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Diagonal Screen Size 0.71inch
Color Monochrome
(white)
Module Construction COG
Number of Pixels 48X64
Active Area 10.54X14.7mm
Pins 15
Drive IC SSD1306
Interface 4-wire SPI
Pixel pitch 0.22X0.23mm
Assembly Soldering

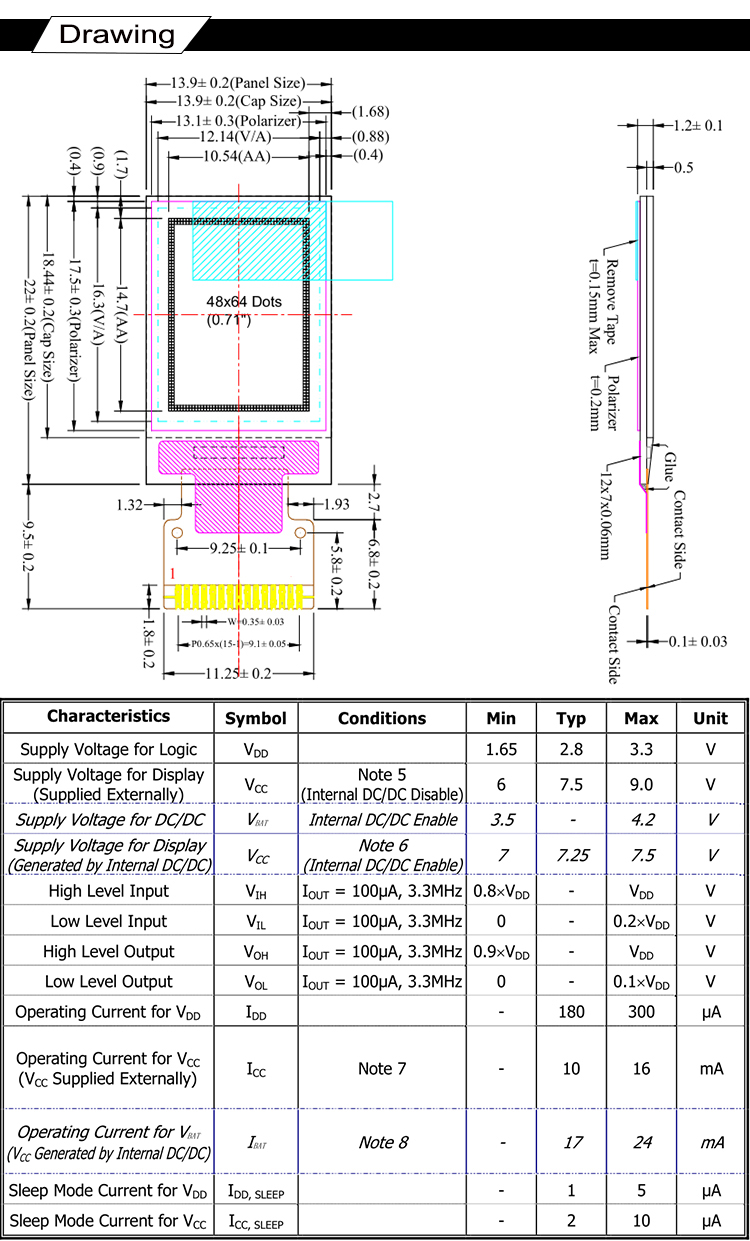

DRAWING

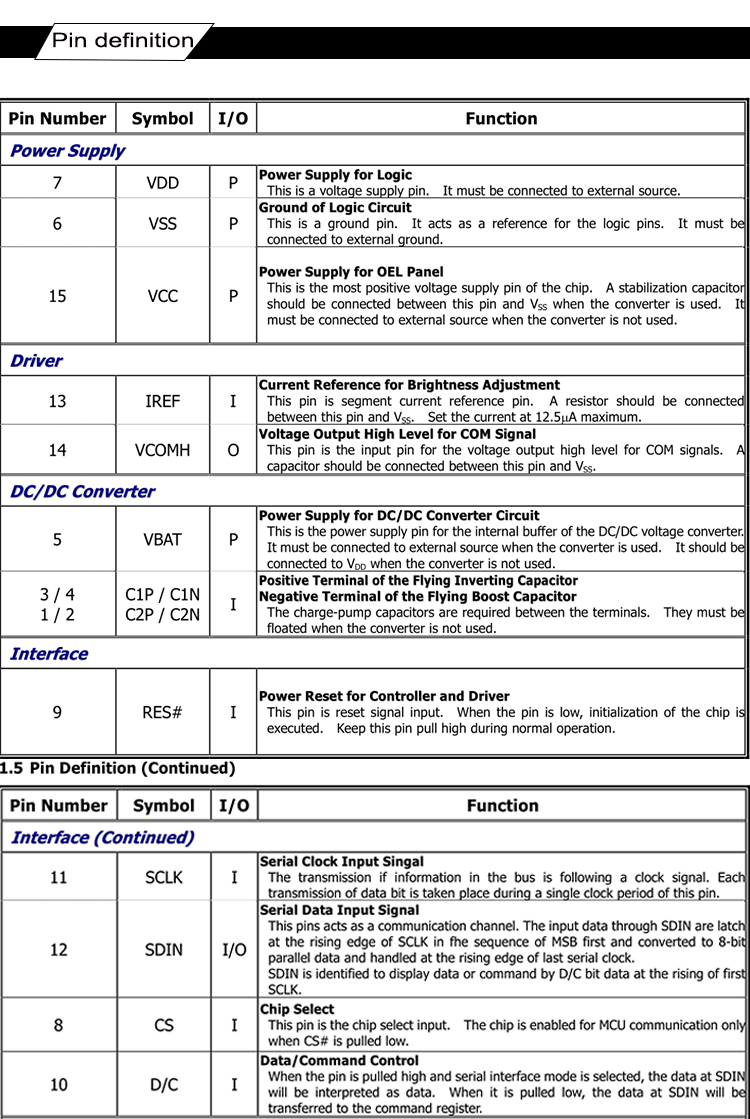

INTERFACE PIN FUNCTION
