0.5 inch OLED Microdisplay 1024(RGB)X768

DESCRIPTION

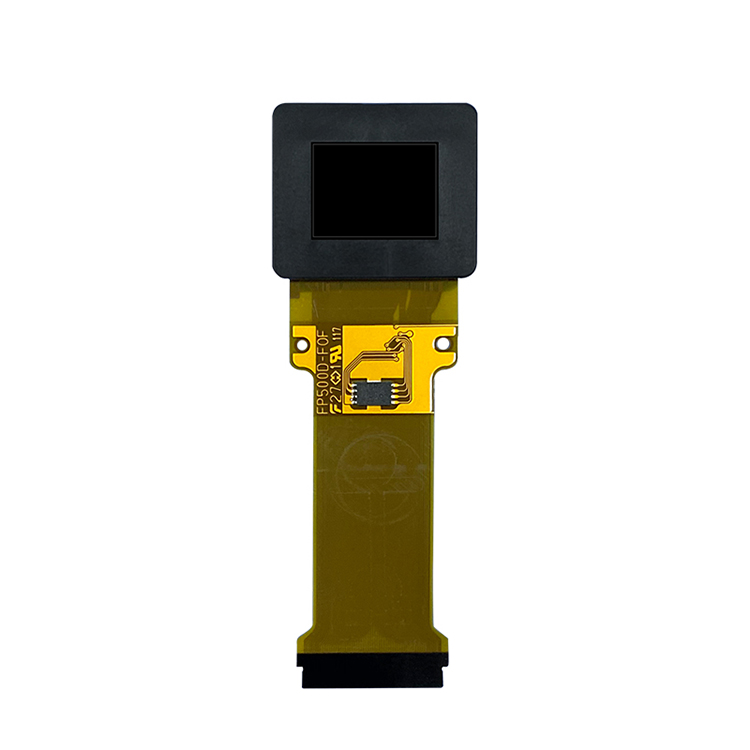

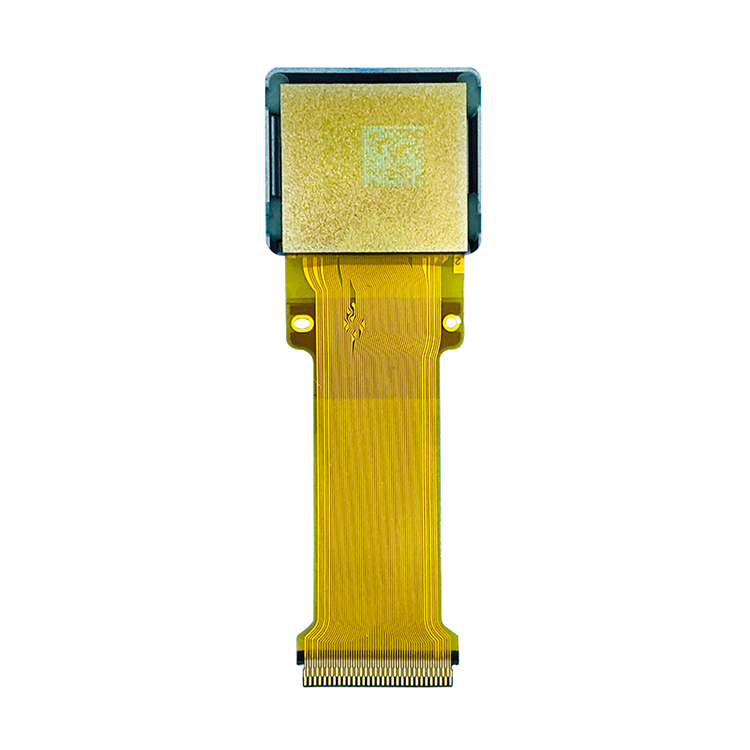

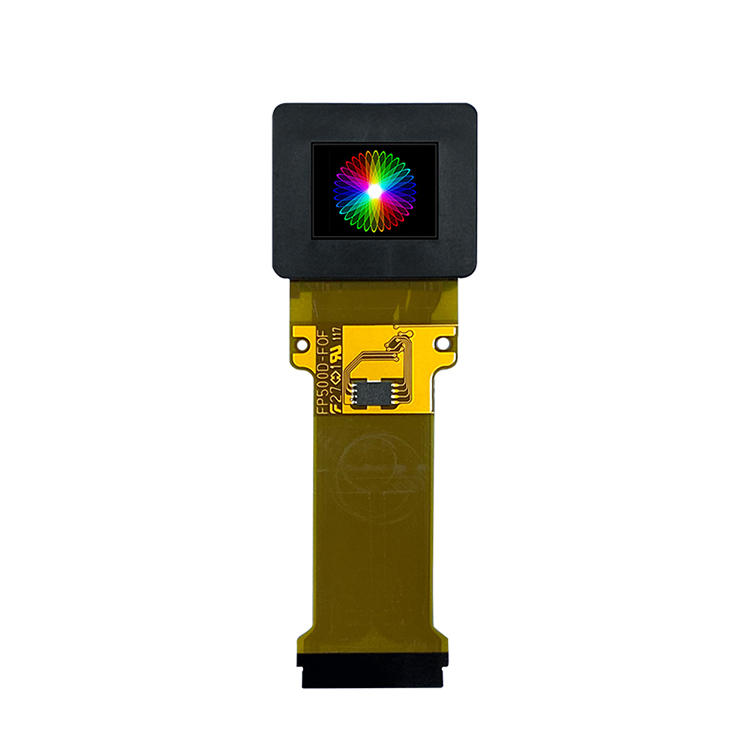

The HAECX331DB-6 is a 1.3 cm (type 0.5) diagonal, 1024 × 768 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition. It enables full color display in NTSC/PAL progressive system.

(Applications: View finders, head mounted displays, very small monitors etc.)

DRAWING

SPECIFICATIONS

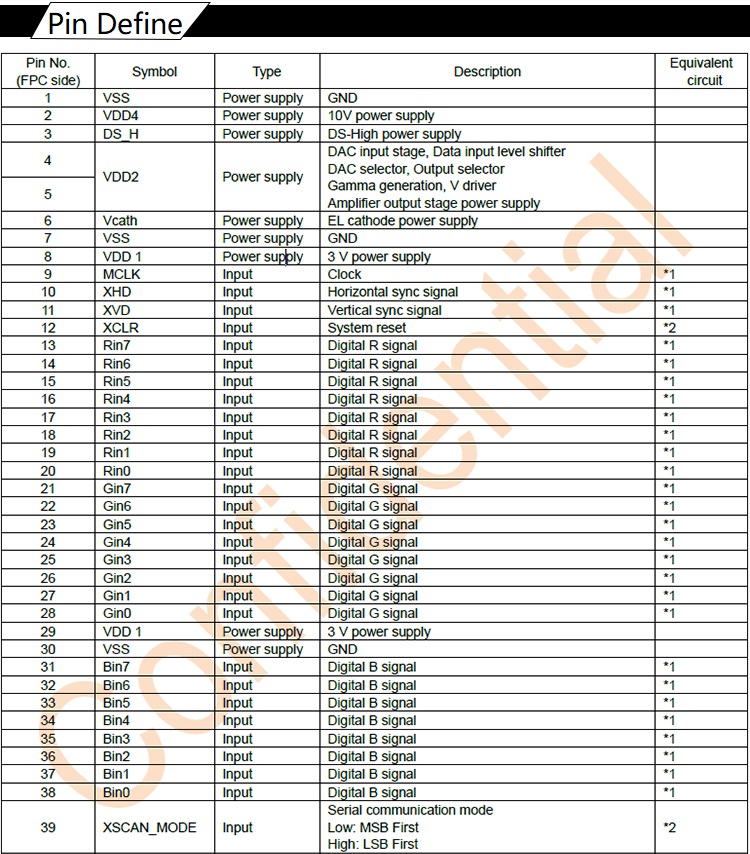

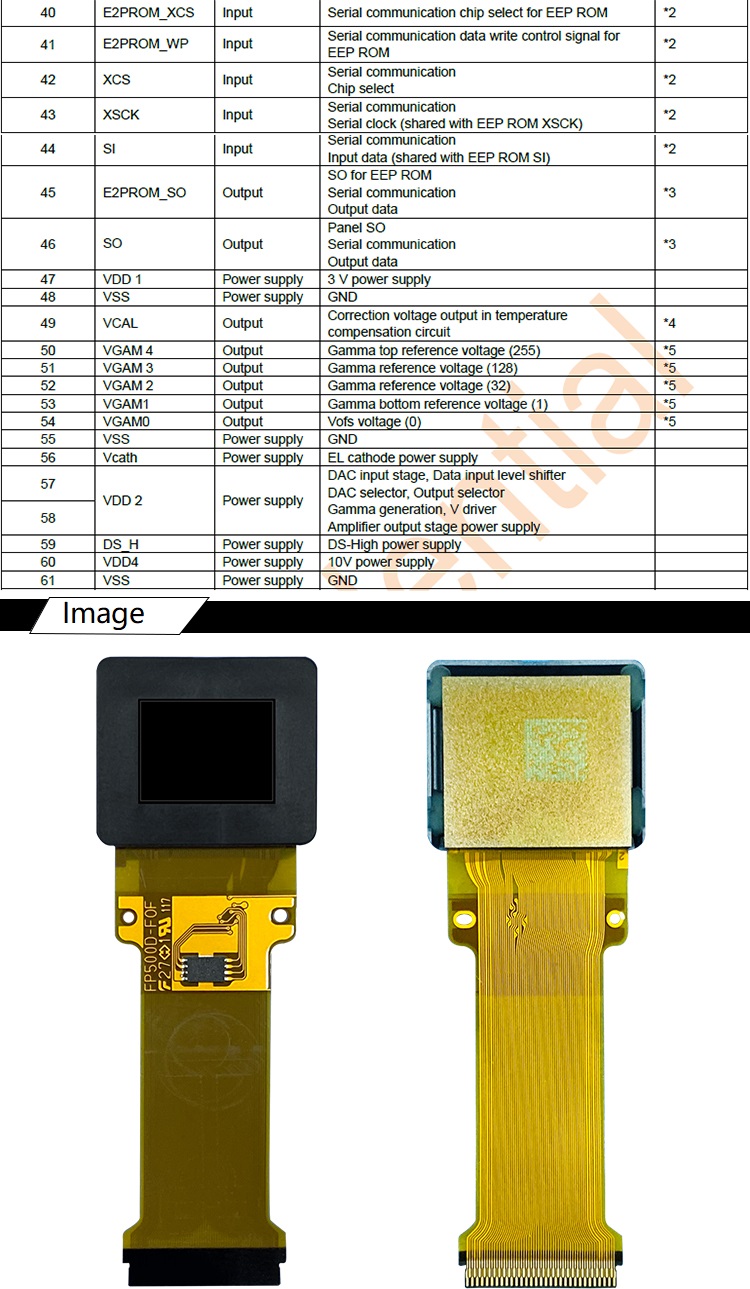

Interface Pin Function

General Specification

Display Type	AM-OLED, OLED	Display Brand	SONY
Interface		Screen Size	0.5
Orientation	Landscape	Display Color	Full Color
Manufacturer	SONY	Resolution	1024 (RGB)×768
Driver IC	-	Consumption	-
Active Area（mm)	10.14(H) × 7.644(V)	Bezel Area(mm)	-
Luminance	1500 cd/m² (Typ.)	Viewing Angle	-55。~55。
Color Depth	16.7M 100%	Mass	-
Refresh Rate	-	Signal Type	RGB
Voltage Supply	-	Operating Temp	-30 ~ 70 °C
Storage Temp	-40 ~ 85 °C	Aspect Ratio	16:9 (H:V)
Mode Name	HAECX331DB-6	Screen Type	AM-OLED,OLED
Arrangement	-	Outline(mm)	-
Treatment	-	Response	-
Work Mode	-	Backlight	No B/L
Used For	AR Glass/Telescope/Gunsight/Thermal imager	Touch Panel	none
Contrast Ratio	>100,000 : 1	Outdoor Visibility	Sunlight readable

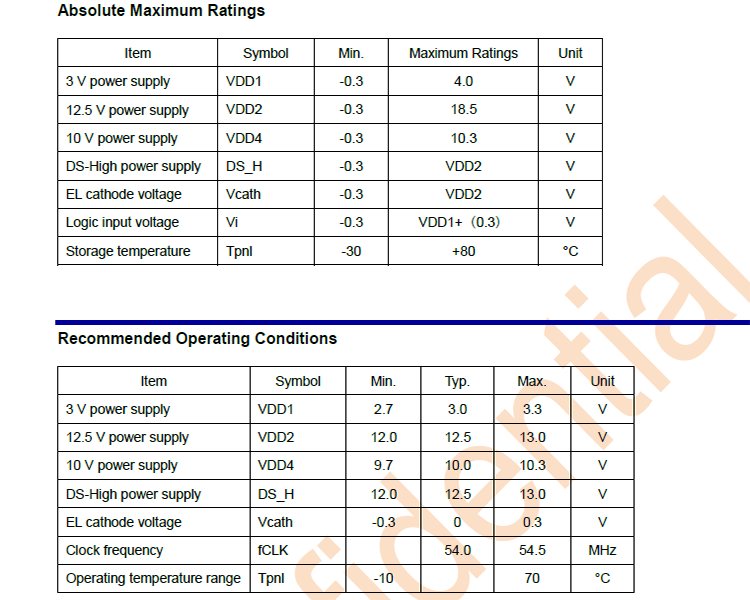

Absolute Maximum Ratings

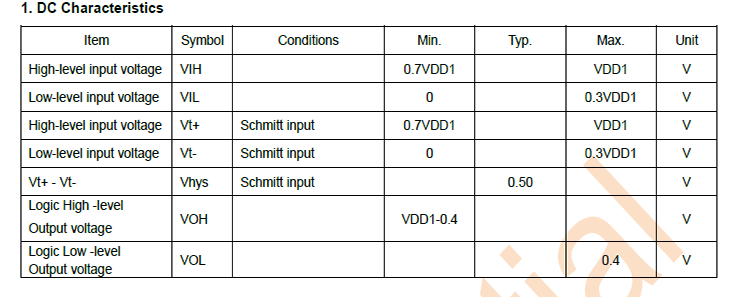

Electrical Characteristics
