Circular TFT Display

  • 1.28 inch IPS Circular tft display 1.28 inch 240(RGB)x240 resolution
  • 1.28 inch IPS Circular tft display 1.28 inch 240(RGB)x240 resolution
  • 1.28 inch IPS Circular tft display 1.28 inch 240(RGB)x240 resolution
1.28 inch IPS Circular tft display 1.28 inch 240(RGB)x240 resolution 1.28 inch IPS Circular tft display 1.28 inch 240(RGB)x240 resolution 1.28 inch IPS Circular tft display 1.28 inch 240(RGB)x240 resolution

1.28 inch IPS Circular tft display 1.28 inch 240(RGB)x240 resolution

  • Size: 1.28
  • Resolution:240(RGB)*240
  • Interface:4 LINES-SPI
  • Driver IC:GC9A01
  • Product description: 1.28'' IPS round tft lcd display module China, it is 240RGBx240 resolution 1.22'' tft panel. The tft lcd is 1.22 inch in diagonal.It is GC9A01 controller ic,SPI interface.
  • INQUIRY

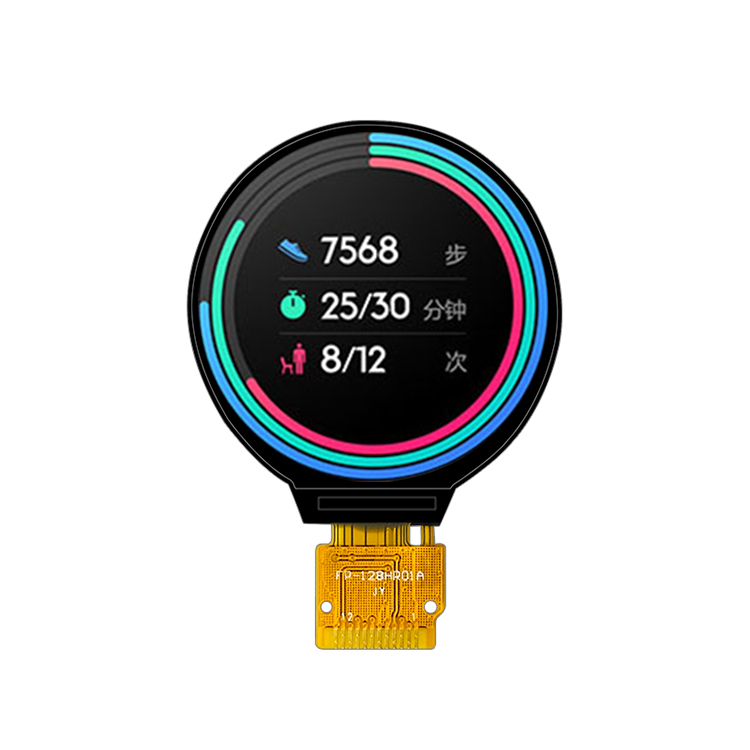

Round tft display 1.28 inch 240(RGB)x240 resolution


DESCRIPTION

TFT LCD display 1.28 inch is a color round tft lcd display panel which is made with 240RGBx240 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. This small tft display is only 1.28" in diagonal, packed with RGB pixels, for making very small high-density displays.

This round 1.28 round tft lcd screen is with full viewing angel display, and built in with GC9A01 controller IC, it supports SPI interface.which is normally used for any smart watch, and other hand-held equipment which requires display in high quality.

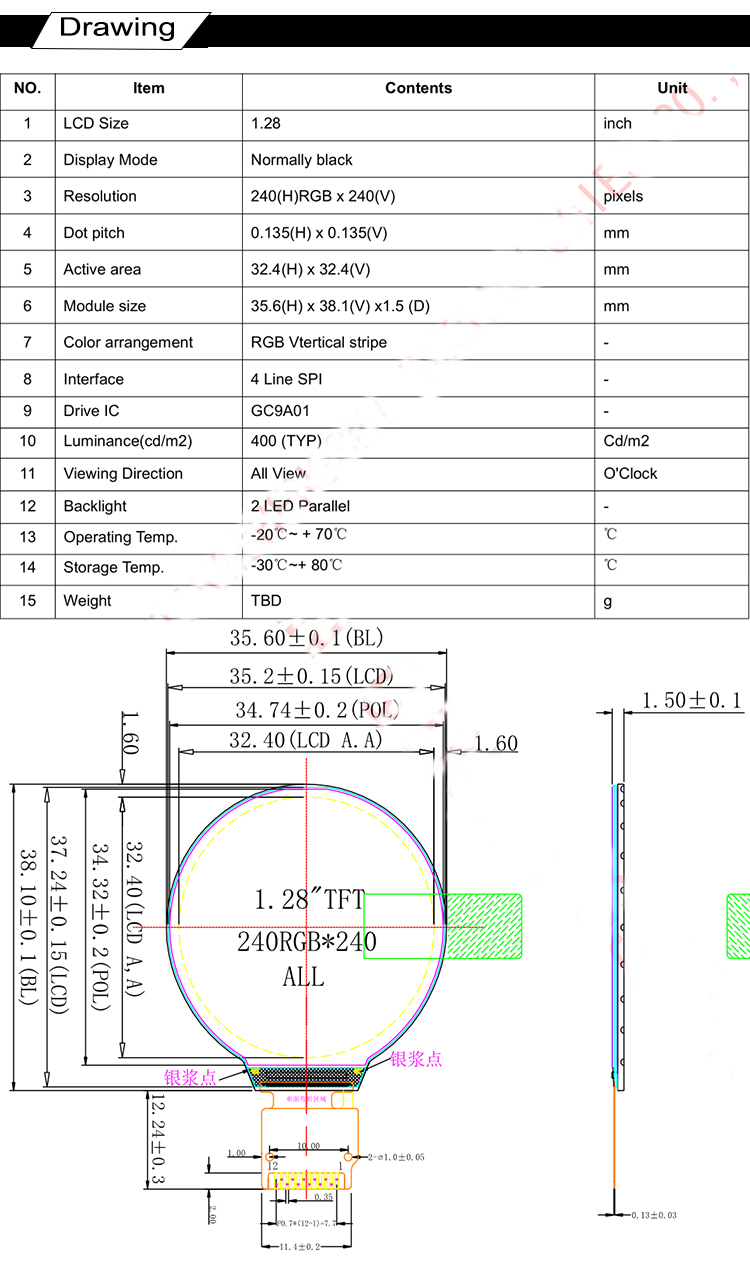

DRAWING

SPECIFICATIONS

Interface Pin Function


General Specification


Display Type:
IPS
Display Colors:
RGB
Resolution:
240(RGB)*240
Pixel Pitch:
0.135(H)*0.135(V)
Viewing Direction:
ALL
Controller IC:
GC9A01
Display Mode:
Normally black
Overall Size:
35.6*138.1*1.5mm
Active Area:
32.4*32.4mm
Luminance:
400(TYP) cd/m2
Contrast:
800:1
Interface Type:
4-wire SPI
Pin No.:
12
Input Voltage:
2.4V~3.3 V
Backlight Type and Color:
LED backlight / White
Life Span:
50,000 hours
Operating Temperature:
-20℃~70℃
Storating Temperature:
-30℃~+80℃
Certification:
ISO:9001:2015 ;  ISO/TS16949:2009 ; ISO13485:2016
Compliant:
RoHS
