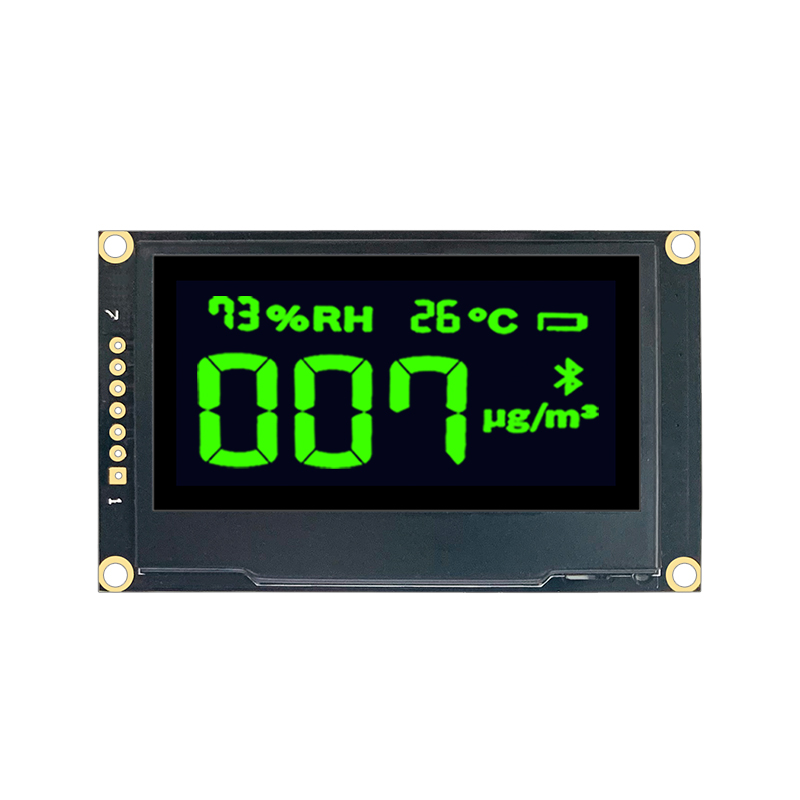

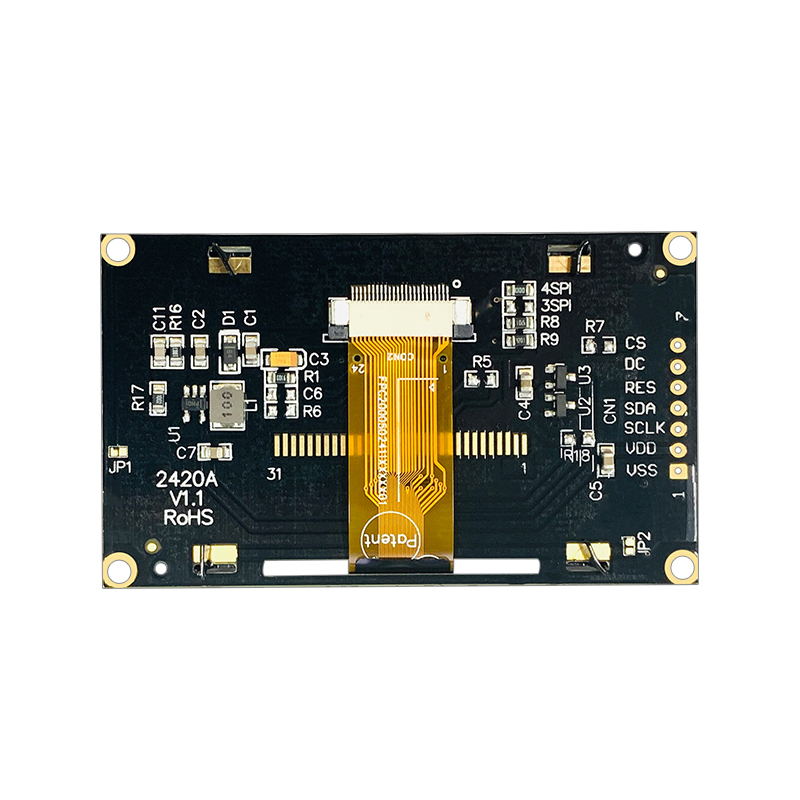

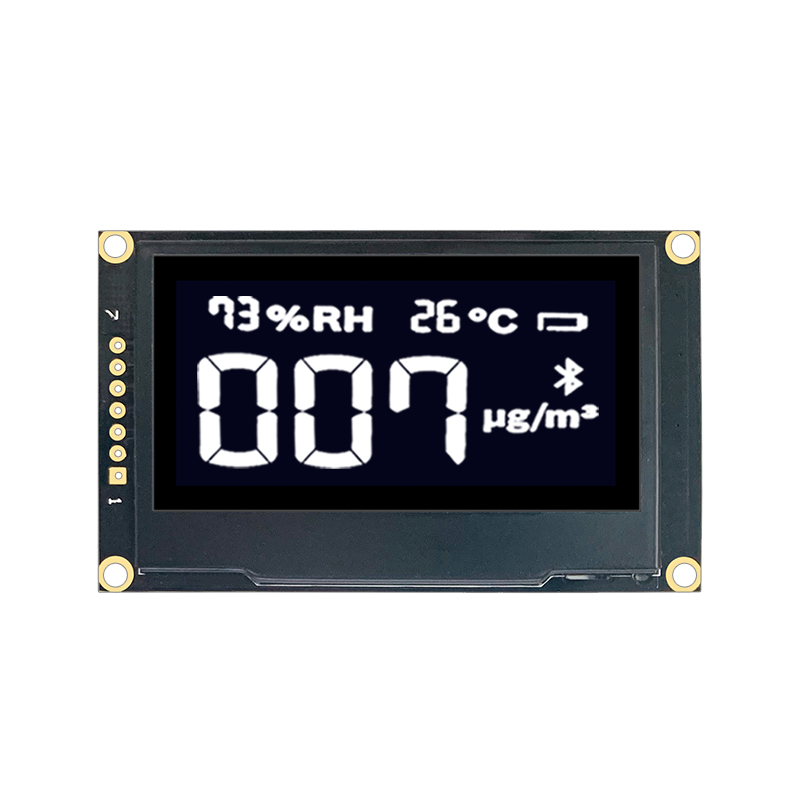

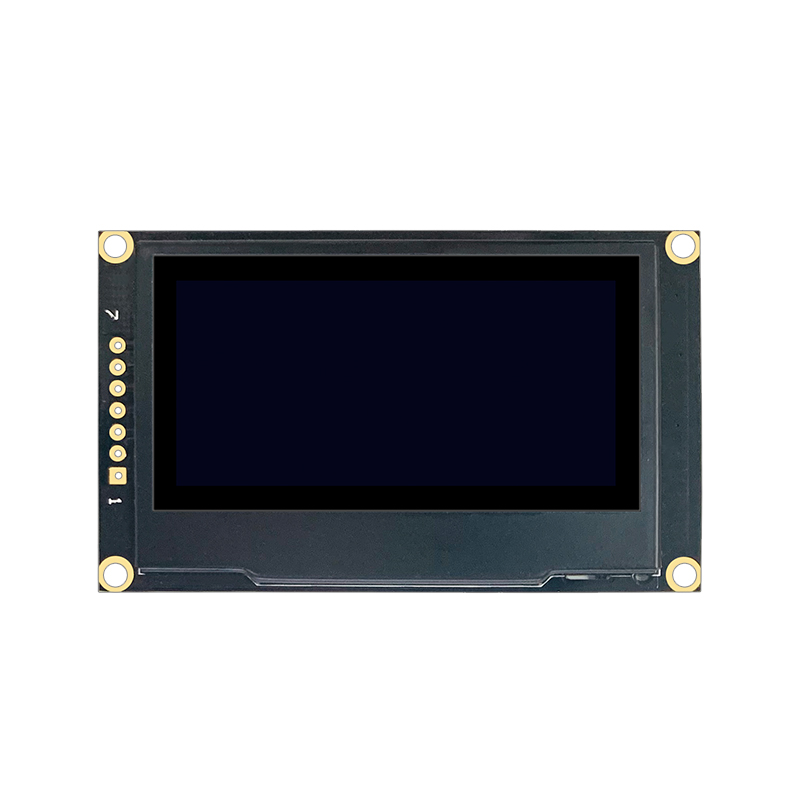

2.42 inch 128*64 OLED Display Module Black board I2C 7 pin interface SSD1309 Driver Chip

  • Type: COG
  • Size:2.42
  • Resolution: 128*64
  • Interface: I2C /SPI
  • Product description: Hicenda Technology Co., Ltd can supply 2.42 inch oled display module 7 pin white or blue or yellow or green color with I2C interface for medical or industrial device.
  • INQUIRY

1. Display Specifications

  • LCD Size: 2.42 inches
  • Dot Matrix Size: 128*64
  • LCD Color: White/Blue/Yellow/Green
  • Hardware Interface: I2C interface
  • Driver IC: SSD1309
  • Operating Temperature: -40 - 85
  • Working Power Supply: 3.3V
  • PIN  : 7 Pin
  • Viewing Direction: Full viewing angle

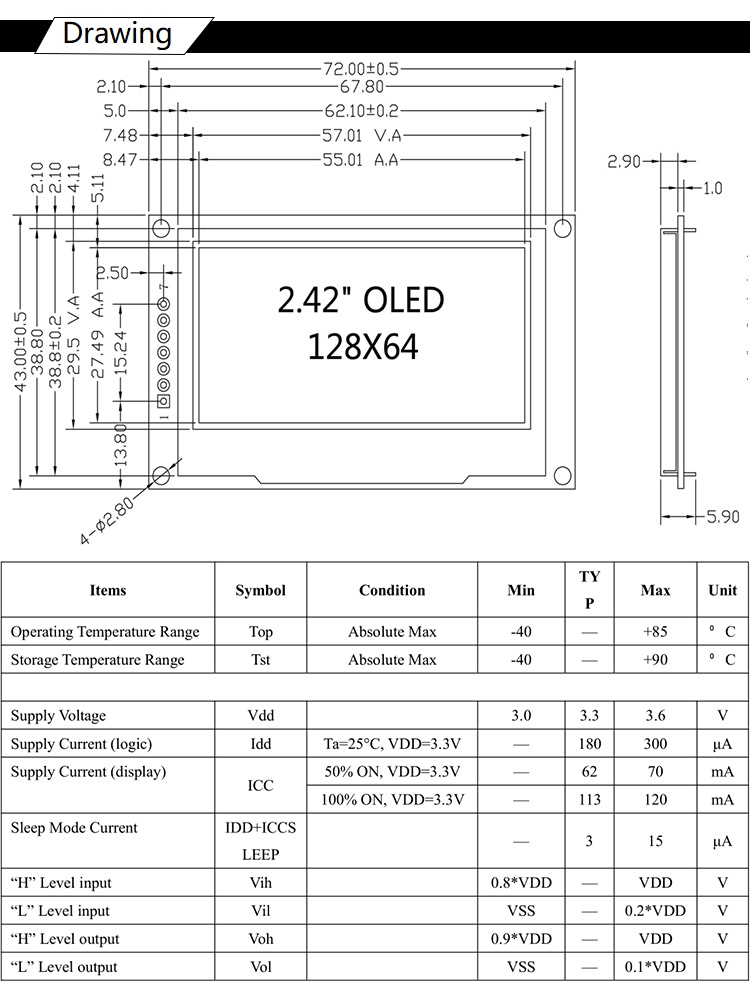

2. Mechanical Specifications

Display Type: oled display
Display Mode: Passive Matrix
Model Number:

HG-0242-12864M01

Diagonal Screen size: 2.42 inch
Interface:

Parallel, 20-wire SPI, I2C

Drive Duty:

1/32 Duty

Number of Pixels:

128 x 64

Panel Size:

72L× 43WX5.9 (max) mm

Driver IC:

SSD1309

Active Area:

57.0×29. 5mm

Pixel Pitch:

0.39(W)x0.39(H)

Pixel Size:

0.43(W)x0.43(H)

Weight:

TBD

Operating Temperature:

-40~85°
