16x4 Character LCD Display Module

  • Outline dimension: 87X60X12.5
  • Resolution:16 Characters x4 lines
  • Display mode: STN/FSTN
  • Pins No: 16 pins
  • Product description: In the market for a 16 x 4 character lcd display? We've got 6 different 16x4 lcds all with different colors, and with or without backlighting.
  • INQUIRY

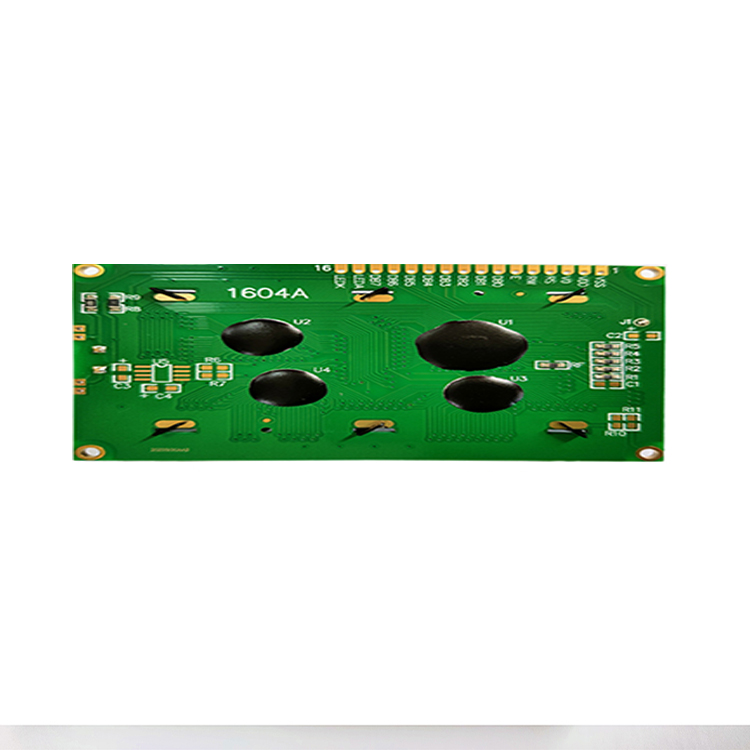

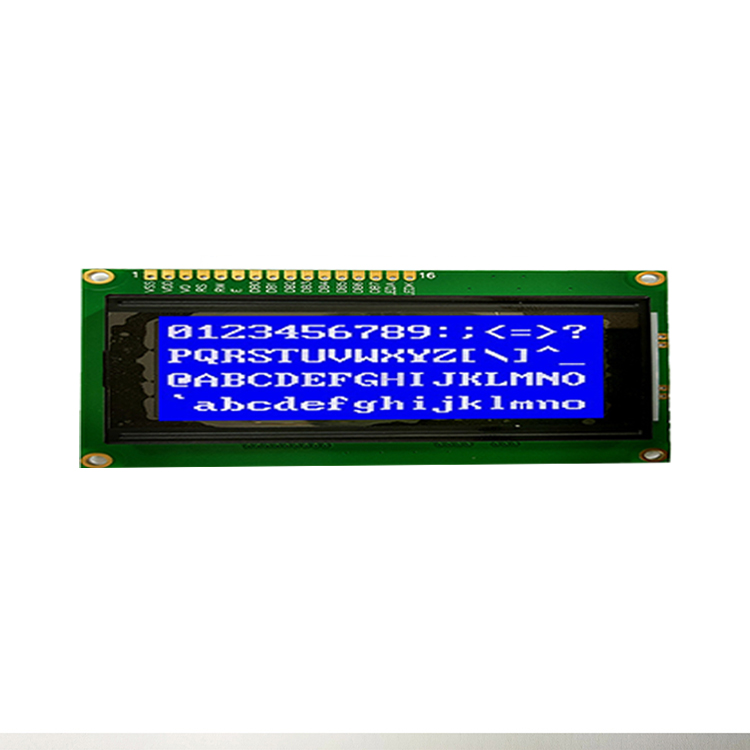

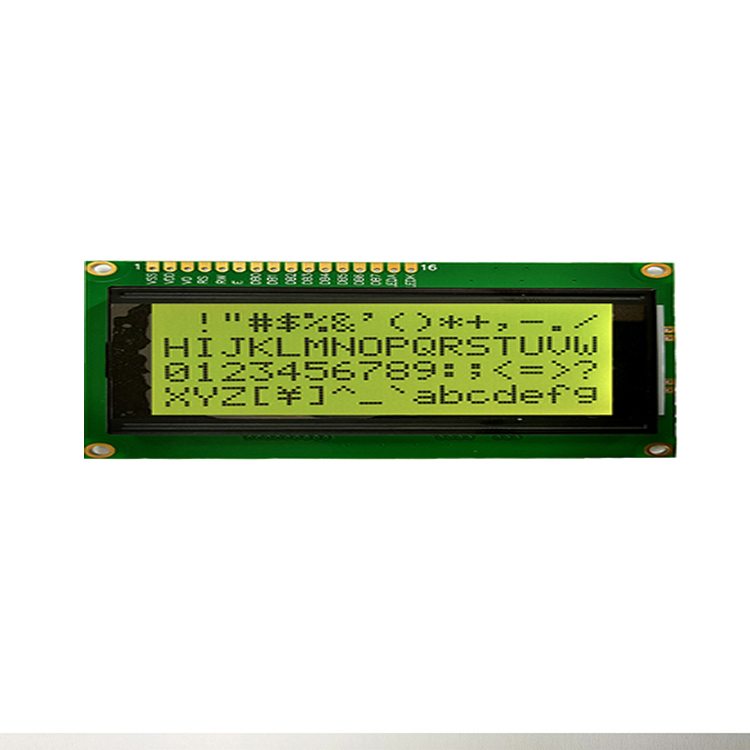

1604 Dot Matrix Graphic LCD Display Module Panel


DESCRIPTION

HL1604A is a Character 16x4 LCD module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  These 16x4 LCD display modules are also available in SPI and I2C interface by using RW1063 controller IC. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K. This type of module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

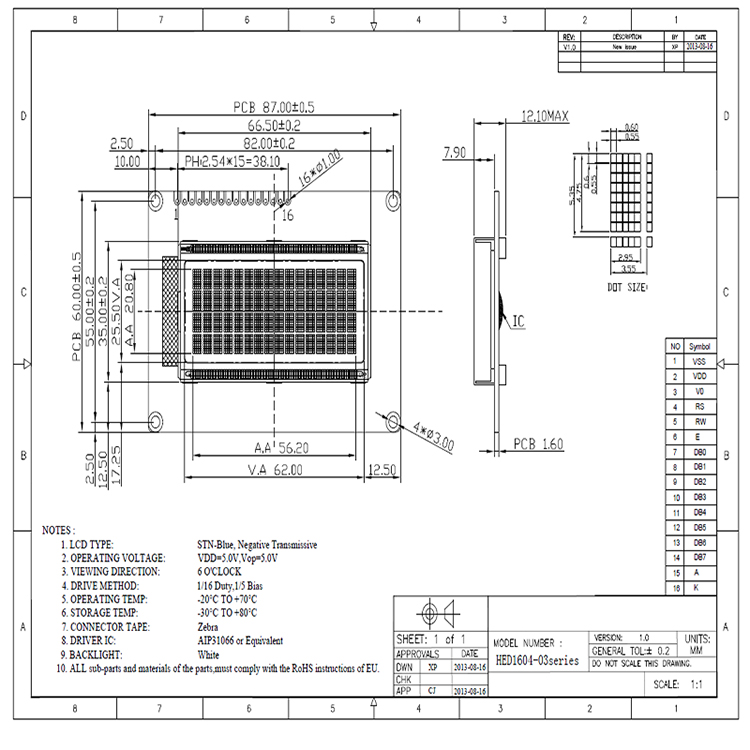

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No. Symbol Description
1 VSS                                     Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



General Specification


Product Name
1604A Dots Graphic character lcd display module
Model
HL1604A
Type
COB LCD Display, dots graphic Display
Dot Format
16x4 Dots
Display format
16character*4lines
Display mode
STN, Transmissive , Negative
Color
White Display Dot
Blue Background
Backlight
White Backlight
Brightness
500cd/m2
Outline Dimension
87X60X12.5mm
Viewing Area
66.5x25.5mm
Active Area
56.0x20.8mm
Dot Size
0.55X0.5mm
Dot Pitch
0.60x0.55mm
Viewing Direction
6 O'Clock
Interface
6800 4-bit or 6800 8-bit Parallel, 16 Pins
Driving Method
1/16 Duty, 1/5 Bias
Supply Voltage
5.0V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃


Electrical Characteristics

Item Symbol Standard Value
typ.
Unit
Input Voltage                                              VDD        3/5                                   V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V
