1.3 inch 240*240 TFT Display Module 7 Pin SPI Interface 65K full color TFT LCD module ST7789 driver IC

1.3 inch 240*240 TFT Display Module 7 Pin SPI Interface 65K full color TFT LCD module ST7789 driver IC

1.3 inch 240*240 TFT Display Module 7 Pin SPI Interface 65K full color TFT LCD module ST7789 driver IC

1.3 inch 240*240 TFT Display Module 7 Pin SPI Interface 65K full color TFT LCD module ST7789 driver IC

1.3 inch 240*240 TFT Display Module 7 Pin SPI Interface 65K full color TFT LCD module ST7789 driver IC

1.3 inch 240*240 TFT Display Module 7 Pin SPI Interface 65K full color TFT LCD module ST7789 driver IC

Price: $2.89-$3.89
Size: 1.30
Resolution: 128*64
Interface: SPI
Product description: Hicenda Technology Co., Ltd can supply IPS 1.3 Inch TFT LCD Screen Display Module 240*240 IPS Full Color with 7Pin SPI Interface ST7789 IC Driver for C51 STM32
INQUIRY

1. Display Specifications

LCD Size: 1.30 inches
Dot Matrix Size: 240*240
LCD Color: 65K Full Color
Hardware Interface: SPI interface
Driver IC: ST7789
Operating Temperature: -20 - 70
Working Power Supply: 3.3V
PIN NO: 7Pin
Display Area: 23.4*23.4mm
Size: 27.78*39.2*3.5mm

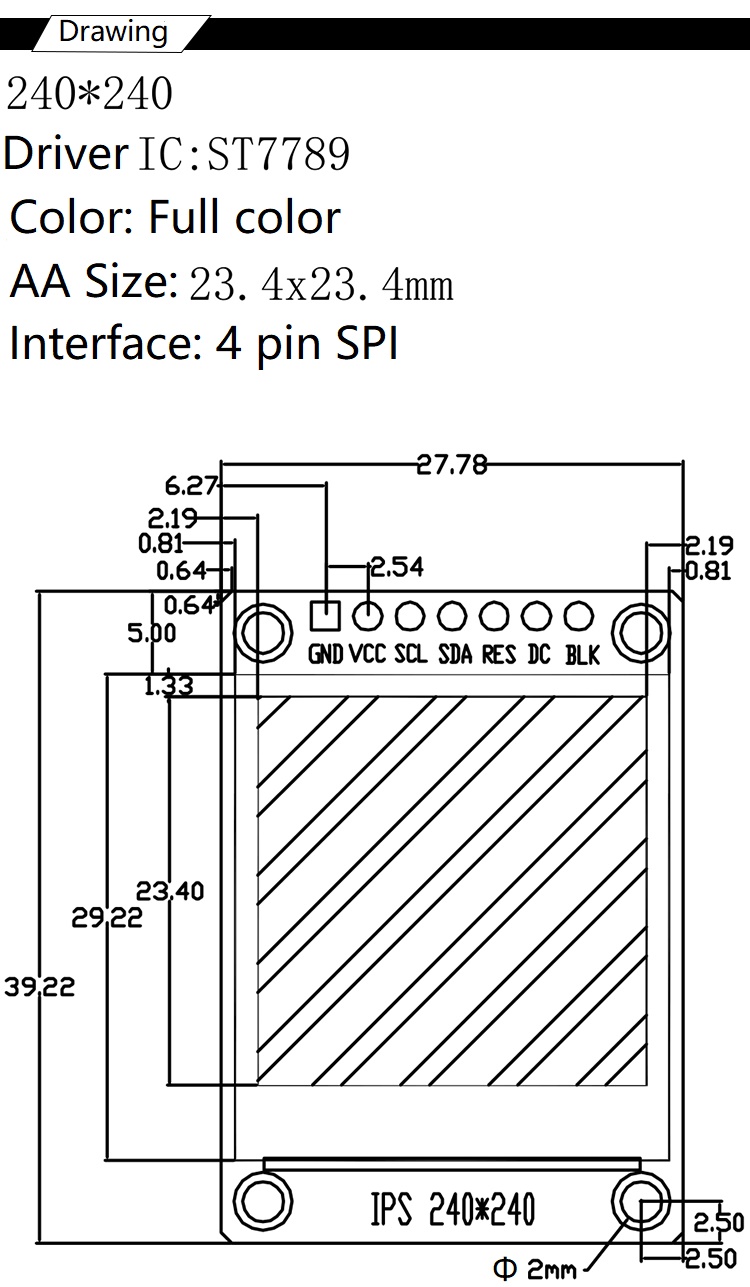

2. Mechanical Specifications

Product Name	1.3 Inch TFT Module
Active Area (WxH)	23.4(H) x 23.4(V)
Display Outline Size	27.78(H) x 39.2(V) x 1.5(D)
Resolution	240RGBx240DOTS
Polarizer Mode	RGB Stripe
Backlight	2 White LEDs In Parallels
Interface Type	SPI
Technology Type	a-Si TFT active matrix
Controller / Driver	ST7789
