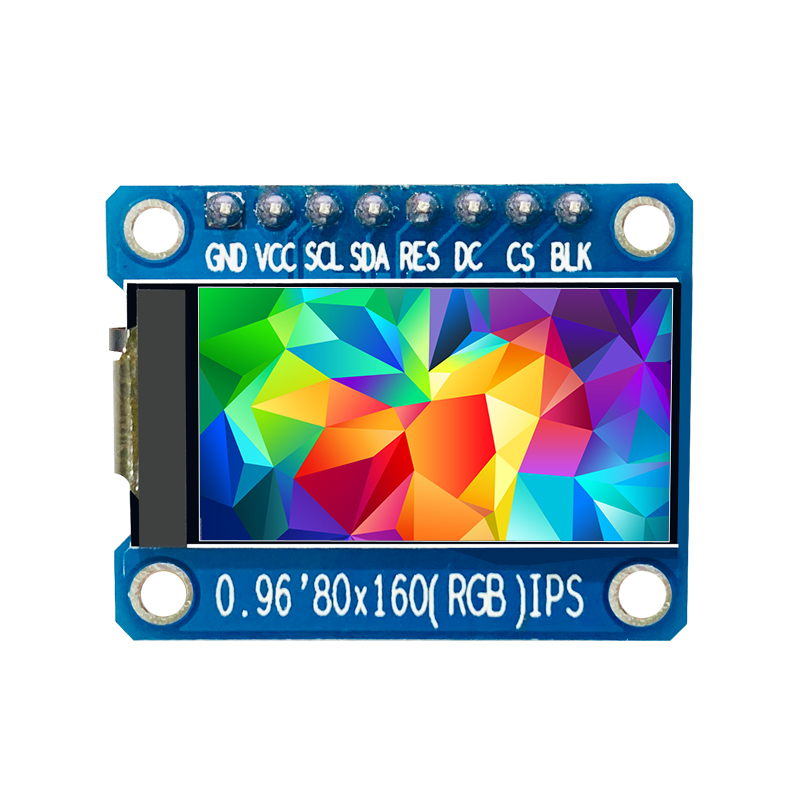

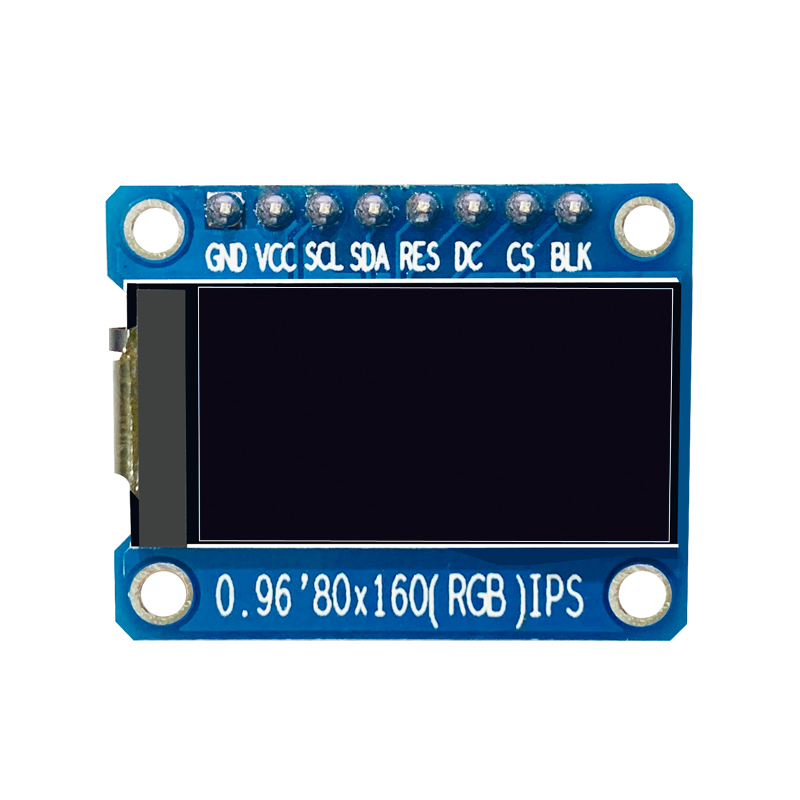

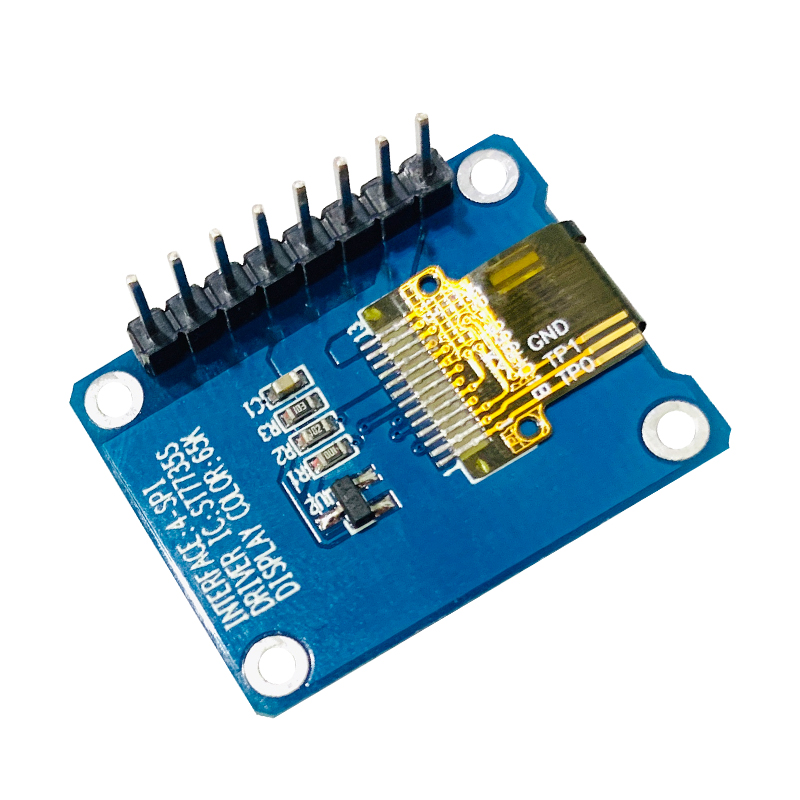

0.96 inch HD IPS TFT 8Pin SPI Interface 65K full color TFT LCD module ST7735 driver IC 80 * 160 resolution

  • Price: $2.59-$3.59
  • Size: 0.96
  • Resolution: 80*160
  • Interface: SPI
  • Product description: Hicenda Technology Co., Ltd can supply high quality 0.96 inch small tft display module for medical or industrial device
  • INQUIRY


1. Display Specifications

  • LCD Size: 0.96 inches
  • Dot Matrix Size: 80*160
  • LCD Color: 65K Full Color
  • Hardware Interface: SPI interface
  • Driver IC: ST7735
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.3V
  • PIN NO: 13Pin
  • Display Area: 10.8*21.696mm
  • Size: 13.3*27.95mm
  • Viewing Direction: Full viewing angle (IPS)

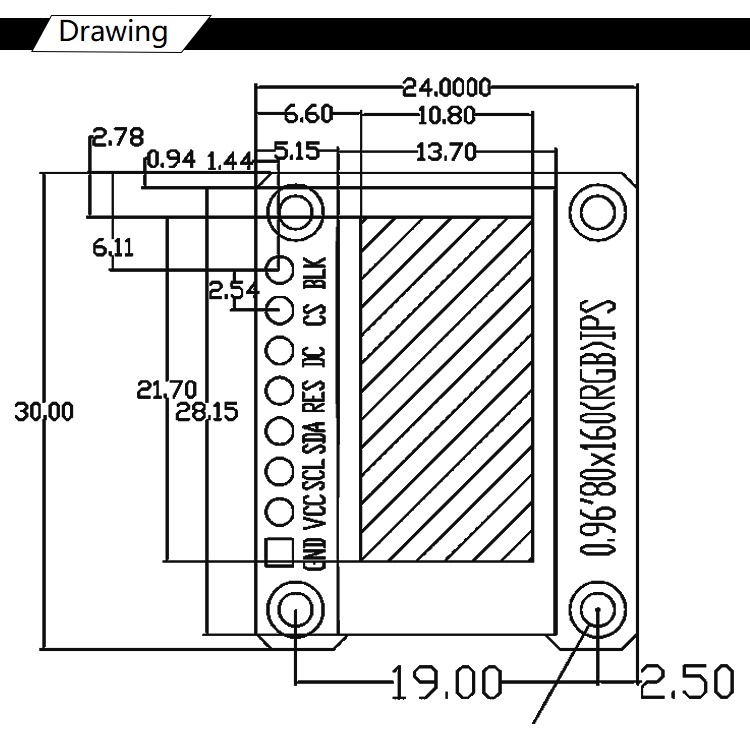

2. Mechanical Specifications

PIN No Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
