DESCRIPTION

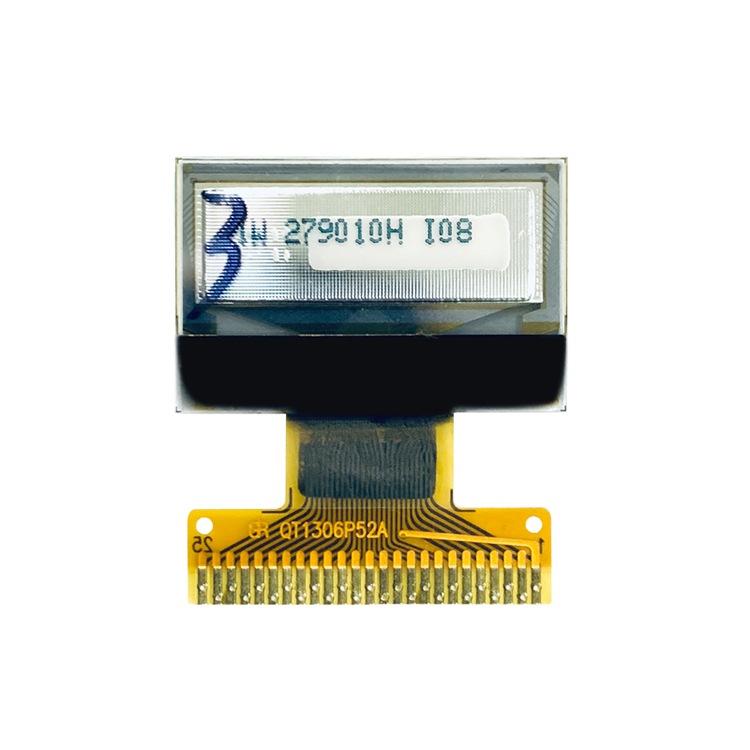

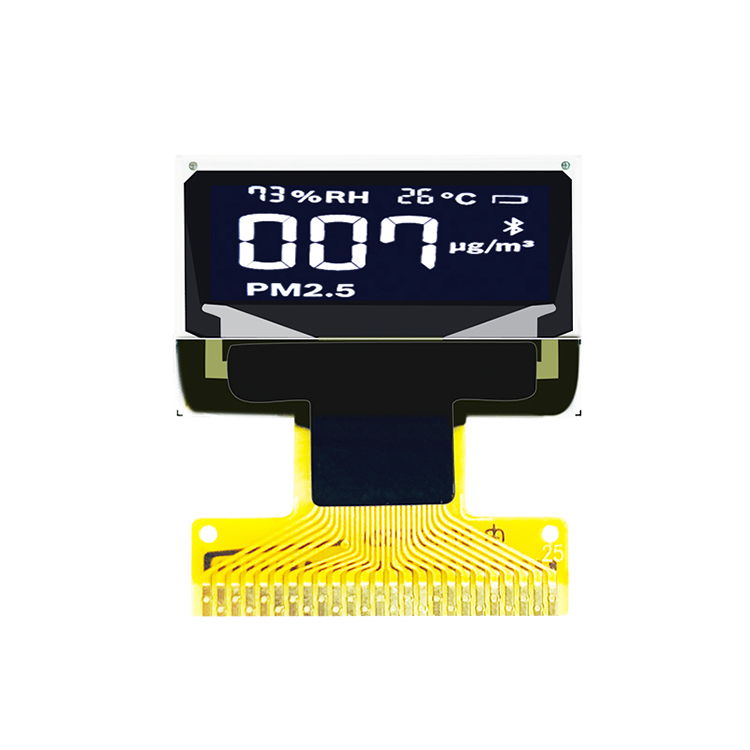

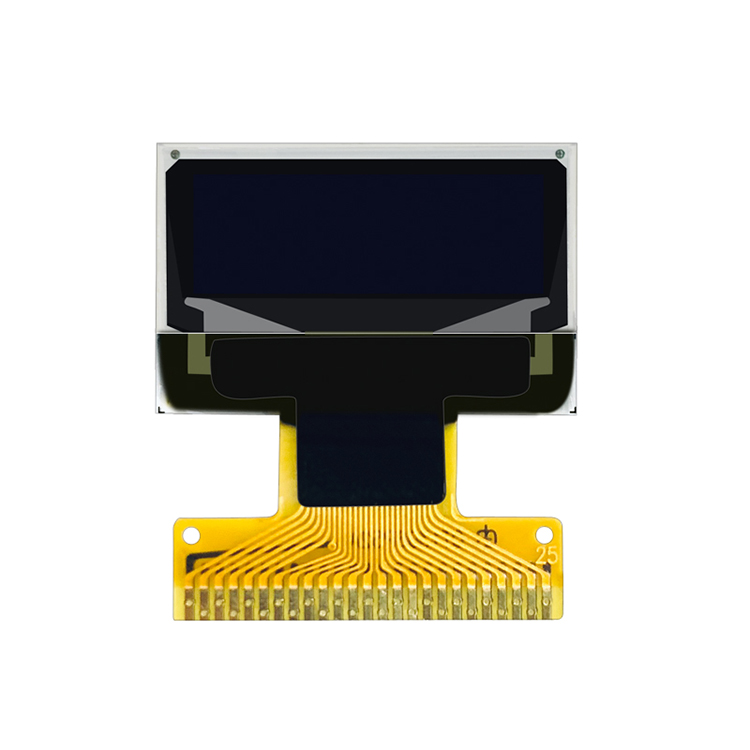

HICENDA OLED 0.68 is a  passive matrix micro OLED display module which is made of 96x32 dots. It has the module dimension of 19.70 × 12.27 × 1.4 mm and Active Area size 16.30 × 5.42 mm. This OLED micro display is built in with SSD1306 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.49 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

Display Type:	oled display
Display Mode:	Passive Matrix
Model Number:	HT--9632TSWEG01
Diagonal Screen size:	0.68 inch
Interface:	4-wire SPI
Drive Duty:	1/32 Duty
Number of Pixels:	96X32
Panel Size:	19.70 × 12.27 × 1.4 (mm)
Driver IC:	SSD1306
Active Area:	16.30 × 5.42 (mm)
Pixel Pitch:	0.17 x 0.17(mm)
Pixel Size:	0.154 x 0.154 (mm)
Weight:	1.54 (g)
Operating Temperature:	-40~85°

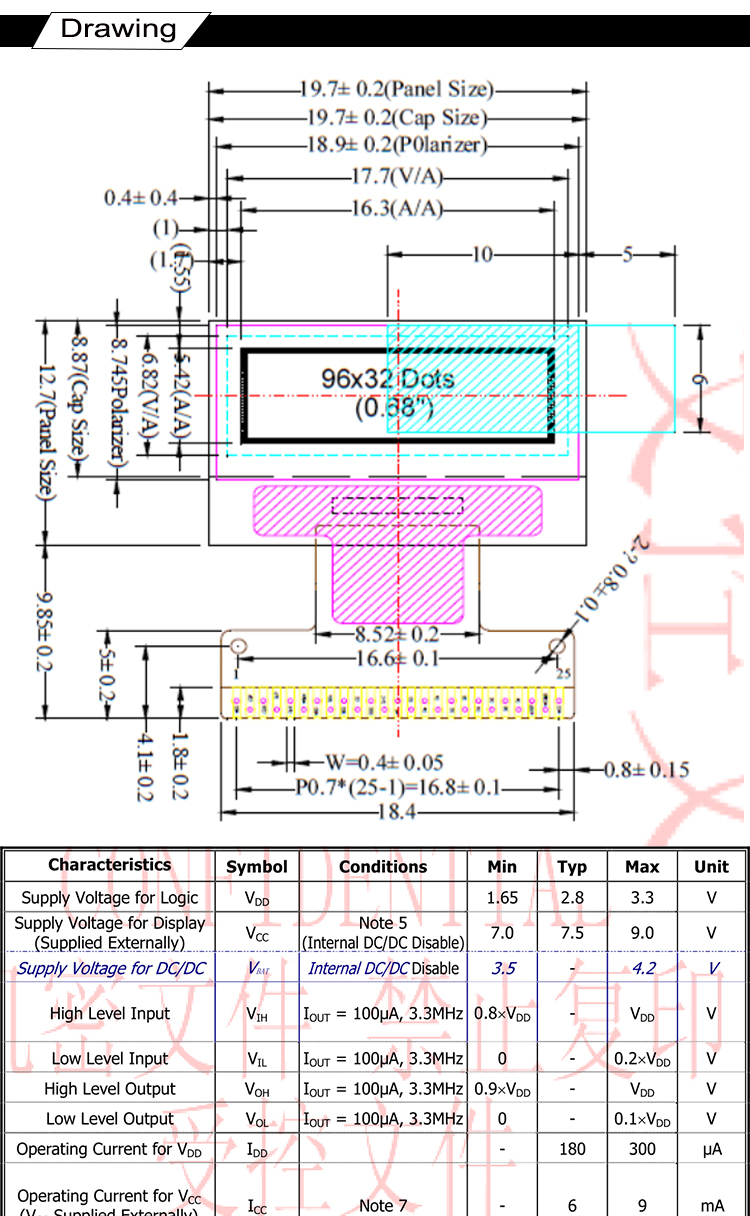

DRAWING

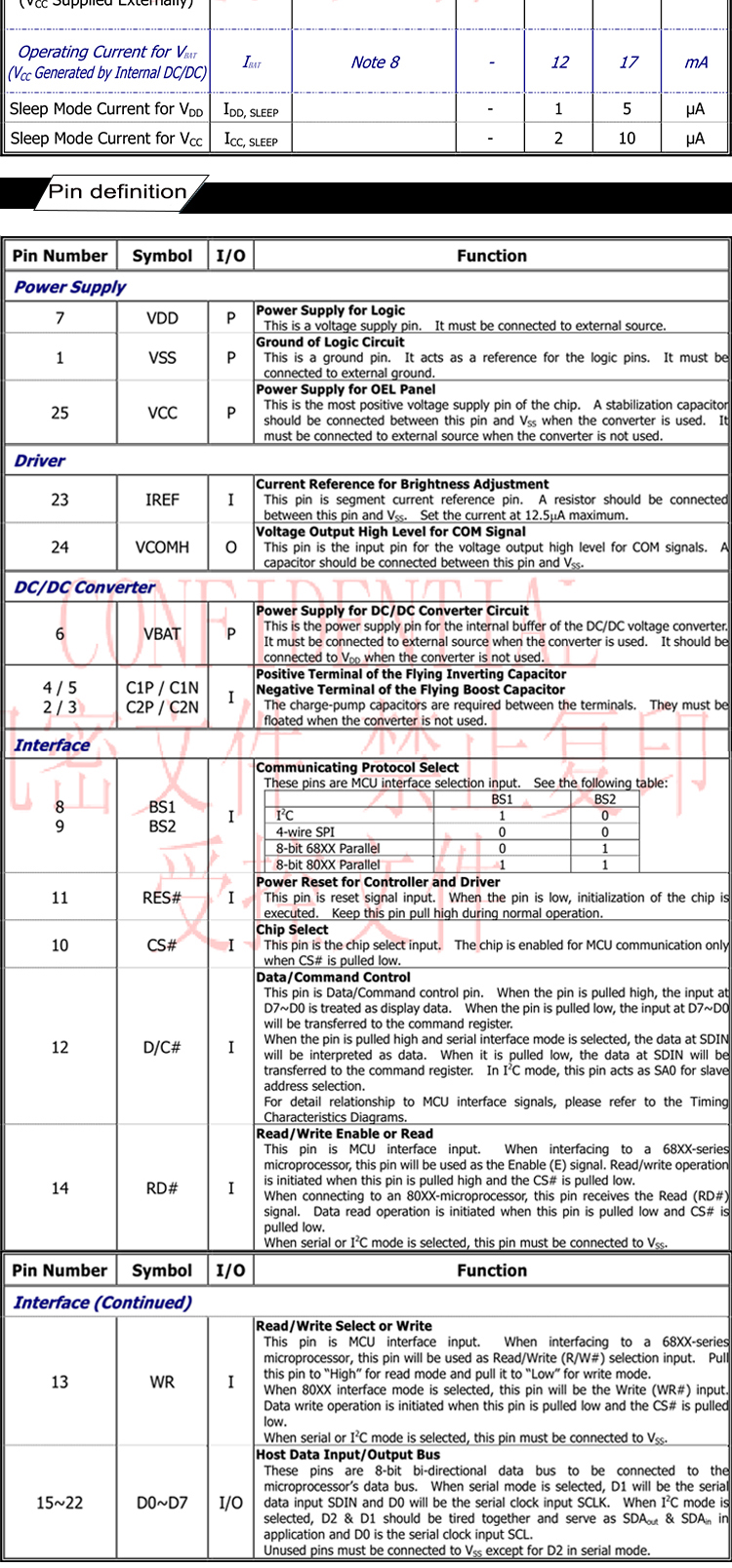

INTERFACE PIN FUNCTION
