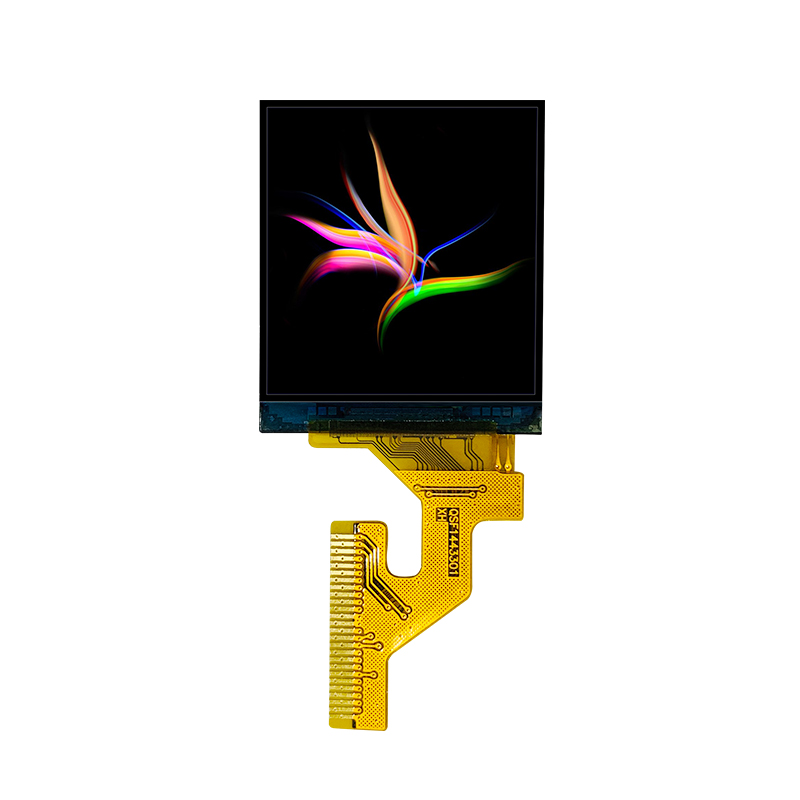

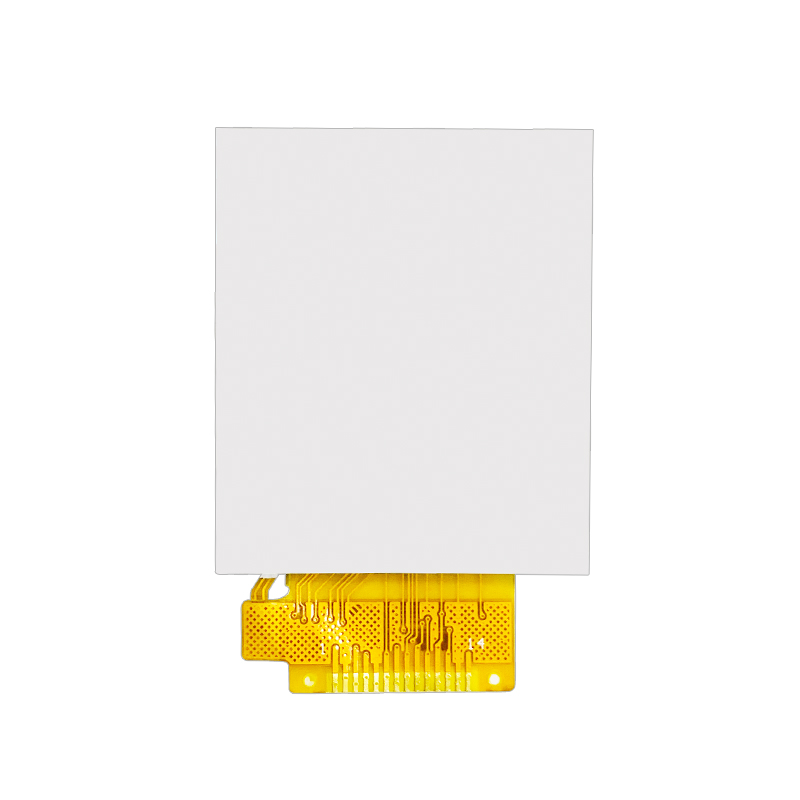

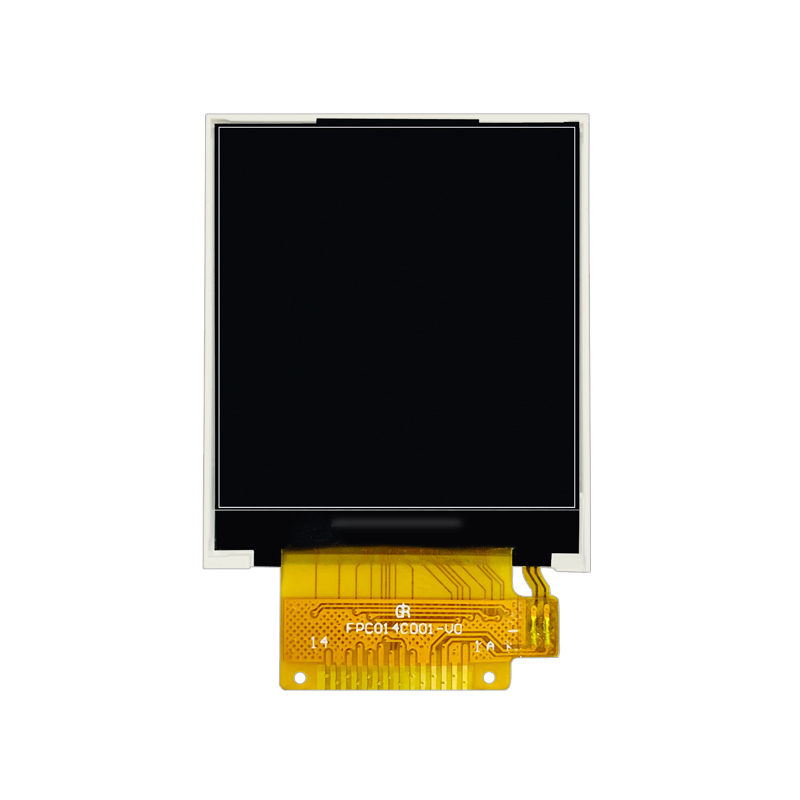

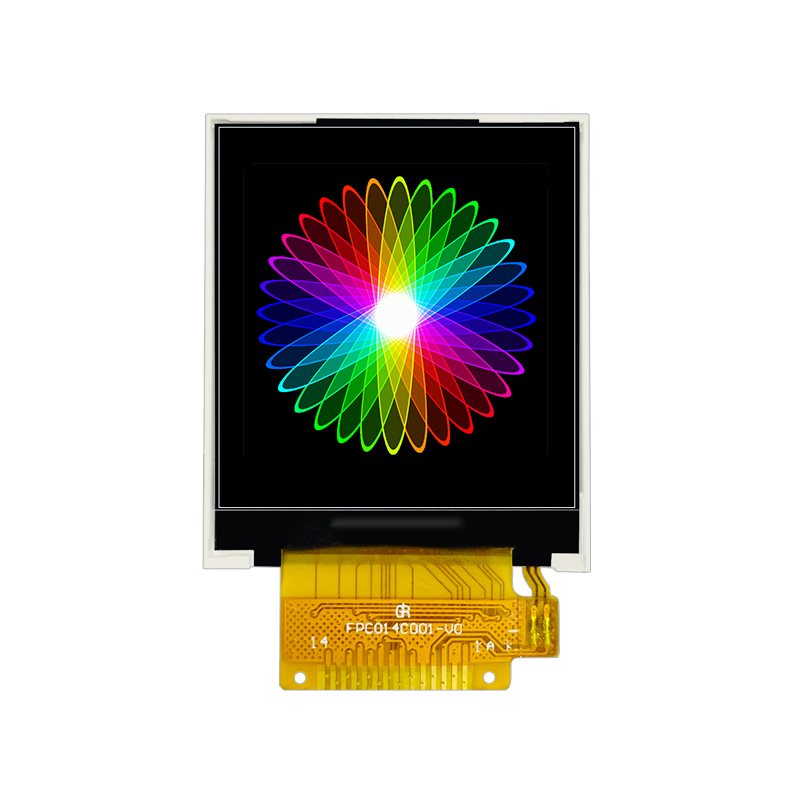

1.44 Inch Color TFT LCD Display customized 128*128 dots tft lcd display for industrial application

  • Price: $1.59-$2.59
  • Size: 1.44
  • Resolution:128*128
  • Interface: serial interface
  • Product description: Hicenda Technology Co., Ltd can supply high quality 1.44 inch small tft display for consumer electronics,SPI port tft display 1.44 inch,tft lcd display 1.44''
  • INQUIRY


1. Display Specifications

  • LCD Size: 1.44 inches
  • Dot Matrix Size: 128*128
  • LCD Color: RGB
  • Hardware Interface: SPI interface
  • Driver IC: ST7735
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.3V
  • PIN NO: Welding 14Pin
  • Display Area: 26.5*25.5mm
  • Size: 34.41*29.9*2.2mm
  • Luminance:200 cd/m2
  • Contrast Ratio:300

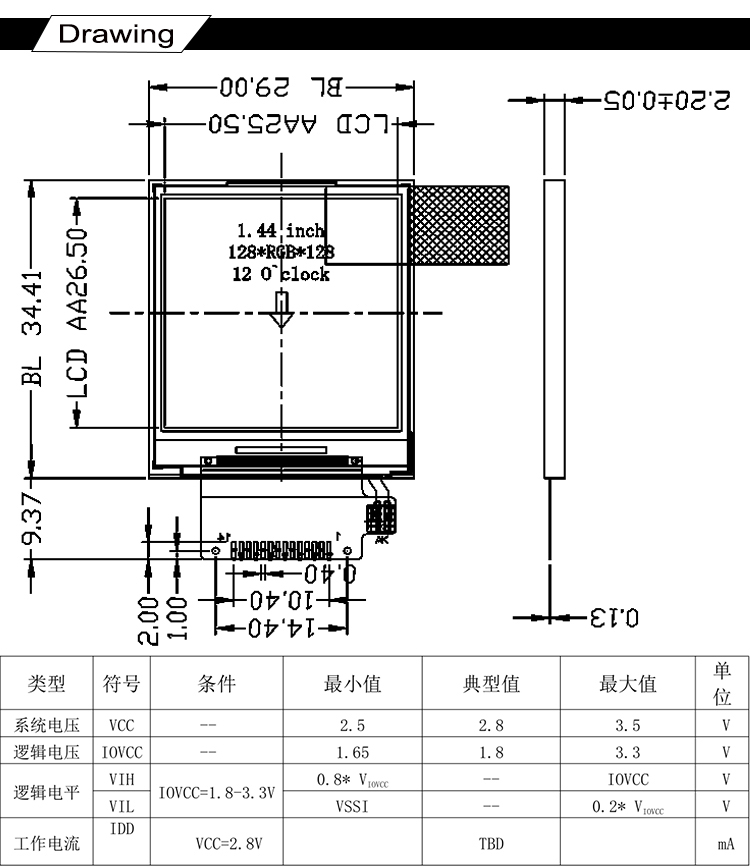

2. Mechanical Specifications

Product Name 1.44 Inch TFT Mini LCD  Screen Color LCD Dispaly
Active Area (WxH) 26.5*25.5mm
Display Outline Size 34.41H) x 29.9V) x 2.2(D)
Resolution 128RGBx128DOTS
Polarizer Mode RGB Stripe
Viewing Direction 12 o'clock
Interface Type Serial Interface
Technology Type a-Si TFT active matrix
Controller / Driver ST7735
