0.96"

  • 0.96 inch 160*80 pixels white colour lcd display panel connector type with welding 13pin ST7735 driver IC
  • 0.96 inch 160*80 pixels white colour lcd display panel connector type with welding 13pin ST7735 driver IC
  • 0.96 inch 160*80 pixels white colour lcd display panel connector type with welding 13pin ST7735 driver IC
0.96 inch 160*80 pixels white colour lcd display panel connector type with welding 13pin ST7735 driver IC  0.96 inch 160*80 pixels white colour lcd display panel connector type with welding 13pin ST7735 driver IC  0.96 inch 160*80 pixels white colour lcd display panel connector type with welding 13pin ST7735 driver IC

0.96 inch 160*80 pixels white colour lcd display panel connector type with welding 13pin ST7735 driver IC

  • Price: $1.59-$2.59
  • Size: 0.96
  • Resolution: 160*80
  • Interface: SPI
  • Product description: Hicenda Technology Co., Ltd can supply 0.96 inch 160*80 resolution white colour lcd tft display panel connector type with ST7735 driver IC for smart device,Without iron frame, vertical screen,from Chi
  • INQUIRY


1. Display Specifications

1) LCD type: α-Si TFT
2) Display Color: 65K
3) Display Mode: IPS / Transmissive / Normally Black

4) Wide viewing angel: All

5) Driver IC: ST7735S

6) Dark Room Contrast: >2000:1

7) Sleep Mode Current for VCC: 1uA

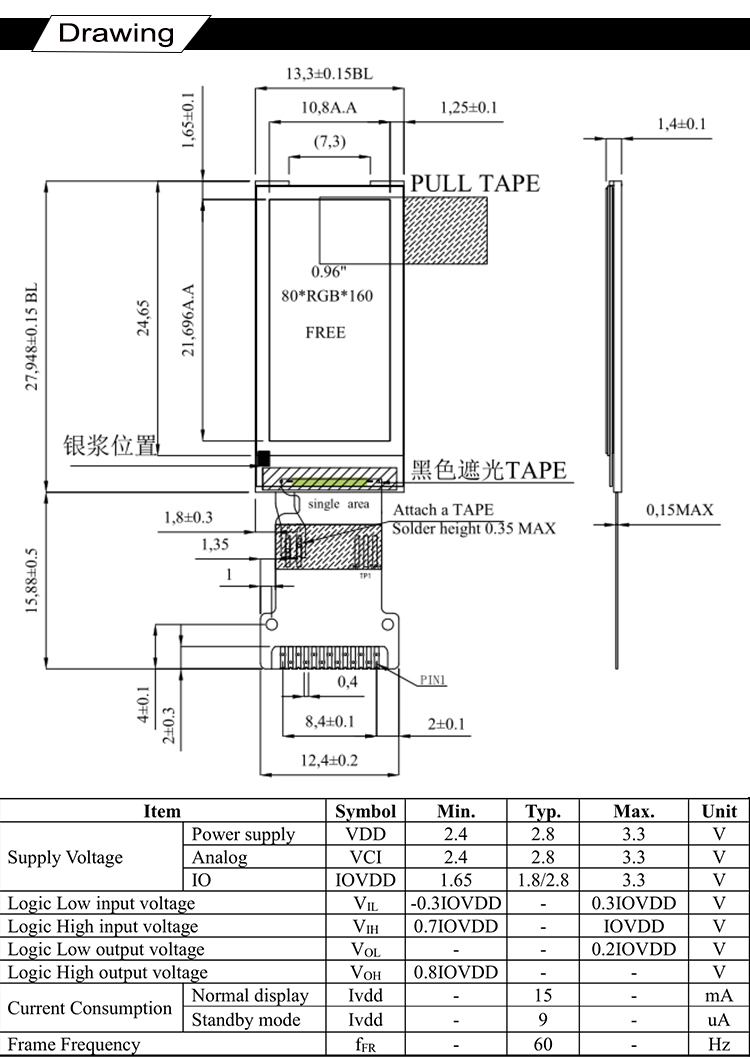

2. Mechanical Specifications


Display Type: tft display
Display Mode: Passive Matrix
Model Number:

QT096A3001

Diagonal Screen size: 0.96 inch
Interface:

4-wire SPI

Storage Temperature

-30~80

Number of Pixels:

80RGB x 160

Module Outline

13.3(H) ×27.948(V)×1.4(T) (Note 1 )

Driver IC:

ST7735

Active Area:

21.7 × 10.8 (mm)

Pixel Pitch:

0.17 x 0.17(mm)

Pixel Size:

0.154 x 0.154 (mm)

Weight:

TBD

Operating Temperature:

-20~70℃
