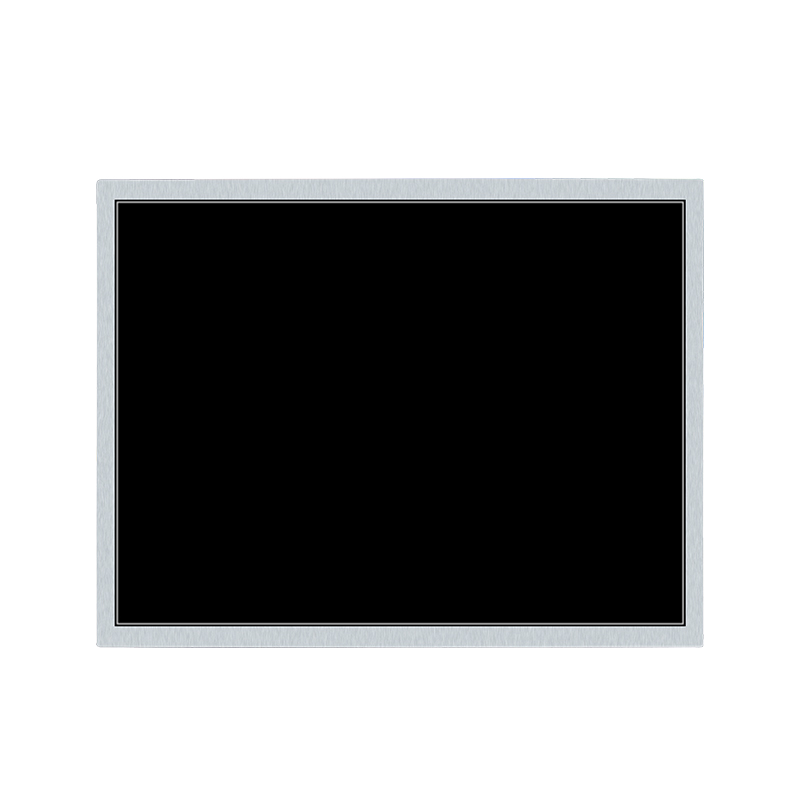

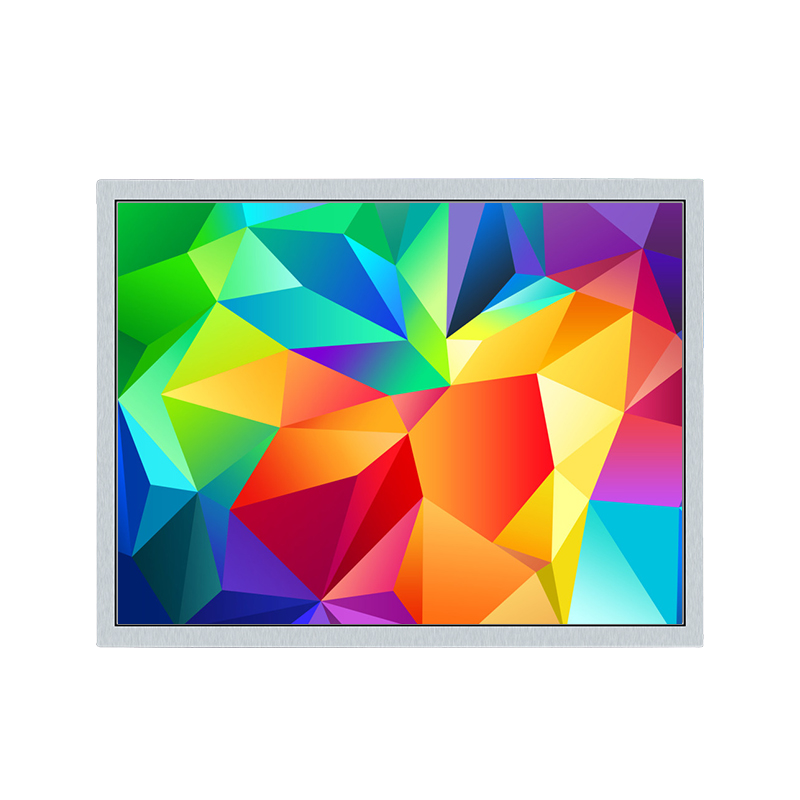

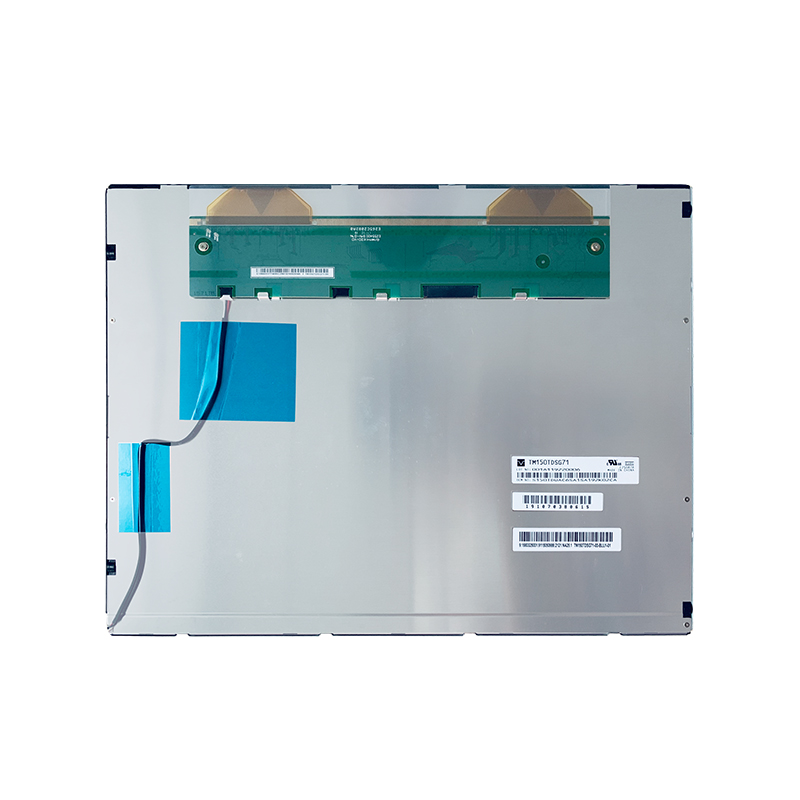

15 inch 4:3 lcd display tft 1024*768 LVDS for medical and industrial products

  • Technology Type:a-Si
  • Size: 15
  • Resolution: 1024*768
  • Interface: LVDS
  • Product description: Hicenda Technology Co., Ltd can supply 15 inch 1024x768 dot matrix tft LCD display,1024xRGBx768 15'' TFT display with six o'clock
  • INQUIRY


1. Display Specifications

  • LCD Size: 15 inches
  • Dot Matrix Size: 1024*768
  • LCD Color: 262k
  • Hardware Interface: LVDS interface
  • Backlight: on of TIlight type Replaceable lamp holder for backlight
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.3V

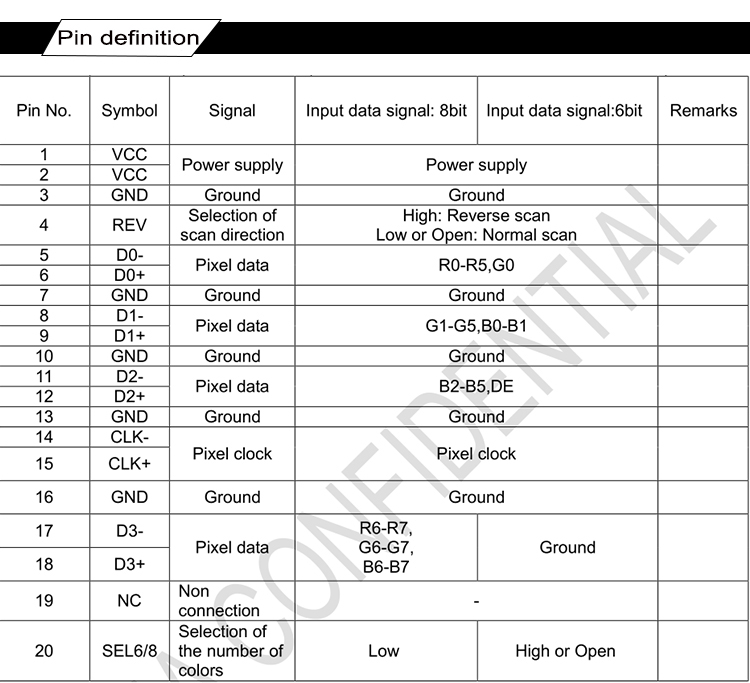

  • PIN NO: 20Pin
  • Display Area: 304.128*228.096mm
  • Size: 326.5*253.5*11.8mm

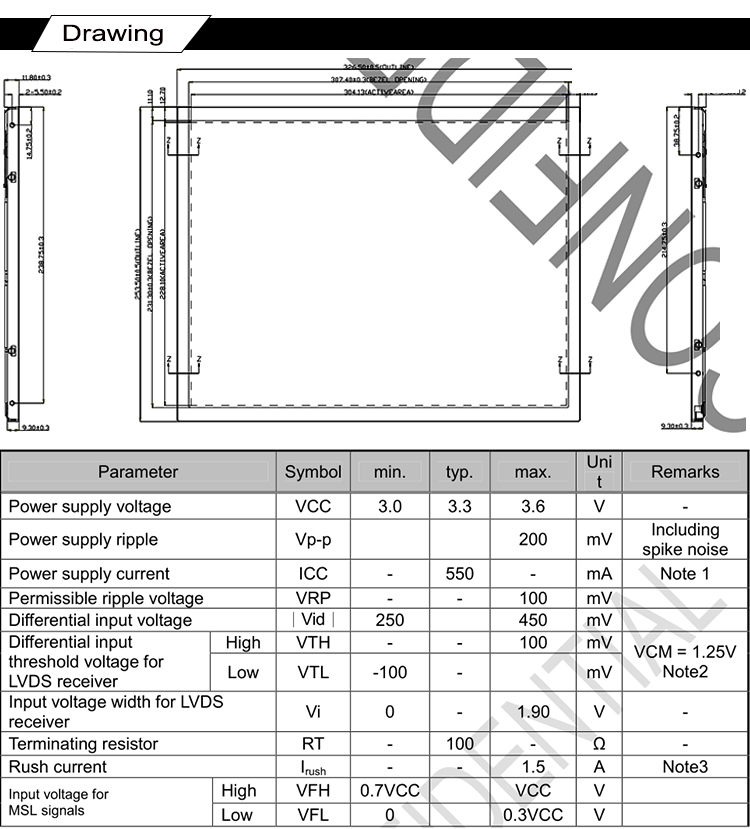

2. Mechanical Specifications

Product Name 15 Inch TFT  Module
Active Area (WxH) 304.128(H) x 228.096(V)
Display Outline Size 326.5(H) x253.5(V) x11.8(D)
Resolution 1024RGBx768DOTS
Polarizer Mode RGB Stripe
Backlight White-LED
Interface Type LVDS
Technology Type a-Si TFT active matrix
Controller / Driver ST7789
